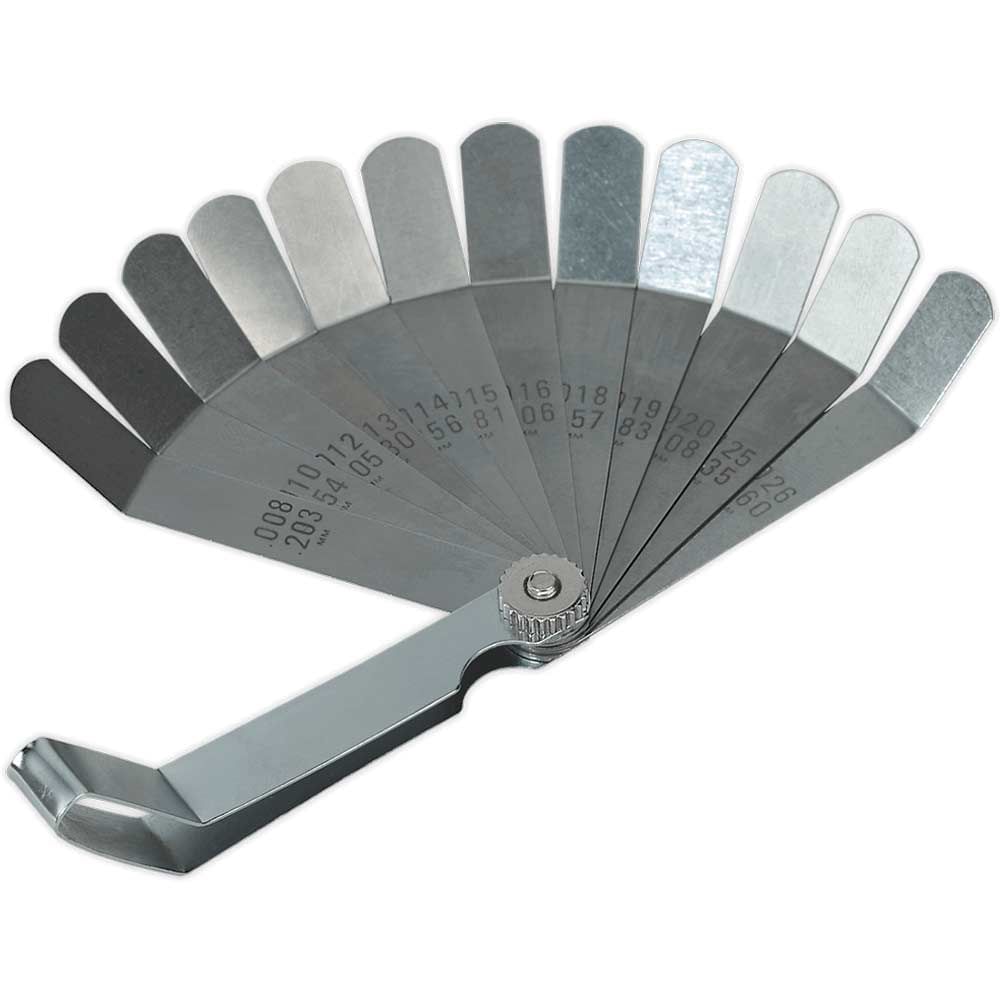

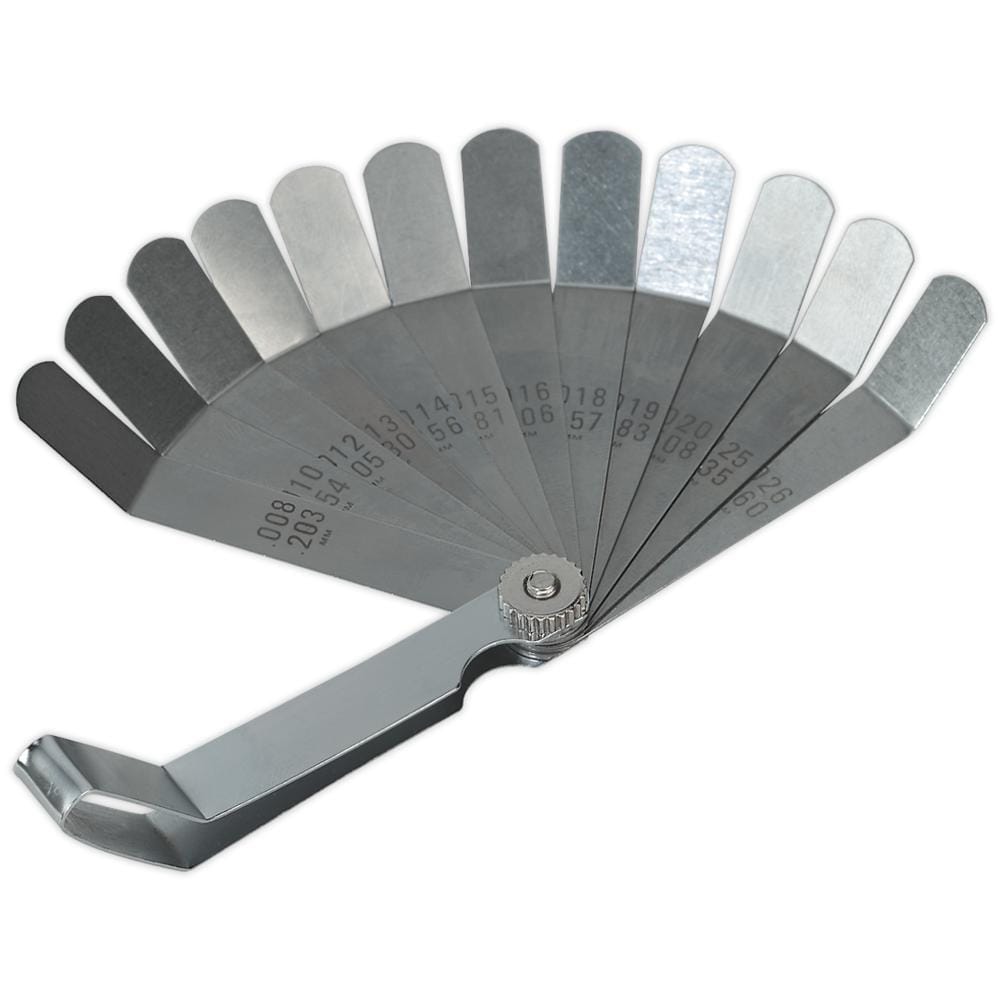

Siegen 12 Blade Feeler Gauge Offset Dual Marked

The Siegen 12 Blade Feeler Gauge is an imperial graduated precision measuring tool designed for checking tolerances in restricted access applications. Featuring dual marked imperial and metric measurements, this feeler gauge set provides versatile measurement options for automotive and engineering tasks where accurate gap measurement is essential.

The offset blade design is specifically engineered for checking tolerances on overhead camshaft (OHC) configurations and other applications where conventional straight blades cannot reach. With a 45-degree angle and 25mm offset on blades measuring 95 x 13mm, this gauge enables access to confined spaces typical in modern engine designs and machinery.

Covering a range from 0.008" to 0.026" (0.203 to 0.660mm) across 12 precision-ground blades, this gauge set addresses the most common clearance checking requirements in automotive and mechanical applications. Each blade is clearly marked with both imperial and metric measurements for quick identification and ease of use across different measurement systems.

Features and Benefits:
• Offset blade design for accessing restricted OHC configurations and tight spaces
• Dual imperial and metric markings for versatile measurement applications
• 12 precision blades covering frequently used tolerance ranges
• Lightweight 0.08kg design for comfortable extended use
• Lifetime guarantee for long-term reliability

Specifications:
Blade Size(s): Imperial: 0.008", 0.010", 0.012", 0.013", 0.014", 0.015", 0.016", 0.018", 0.019", 0.020", 0.025", 0.026", Metric; 0.203, 0.254, 0.305, 0.330, 0.356, 0.381, 0.406, 0.457, 0.483, 0.508, 0.635, 0.660mm
Brand: Siegen
Nett Weight: 0.08kg
Type: Dual Marked
