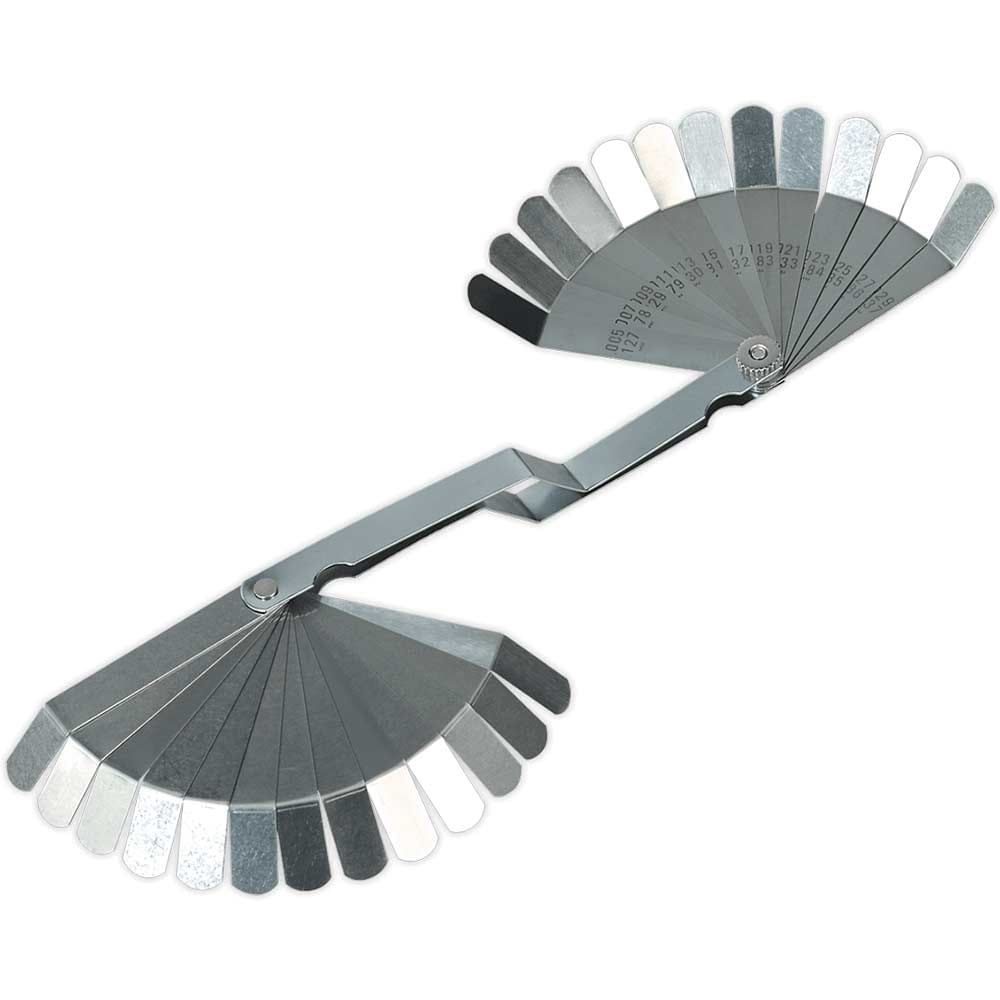

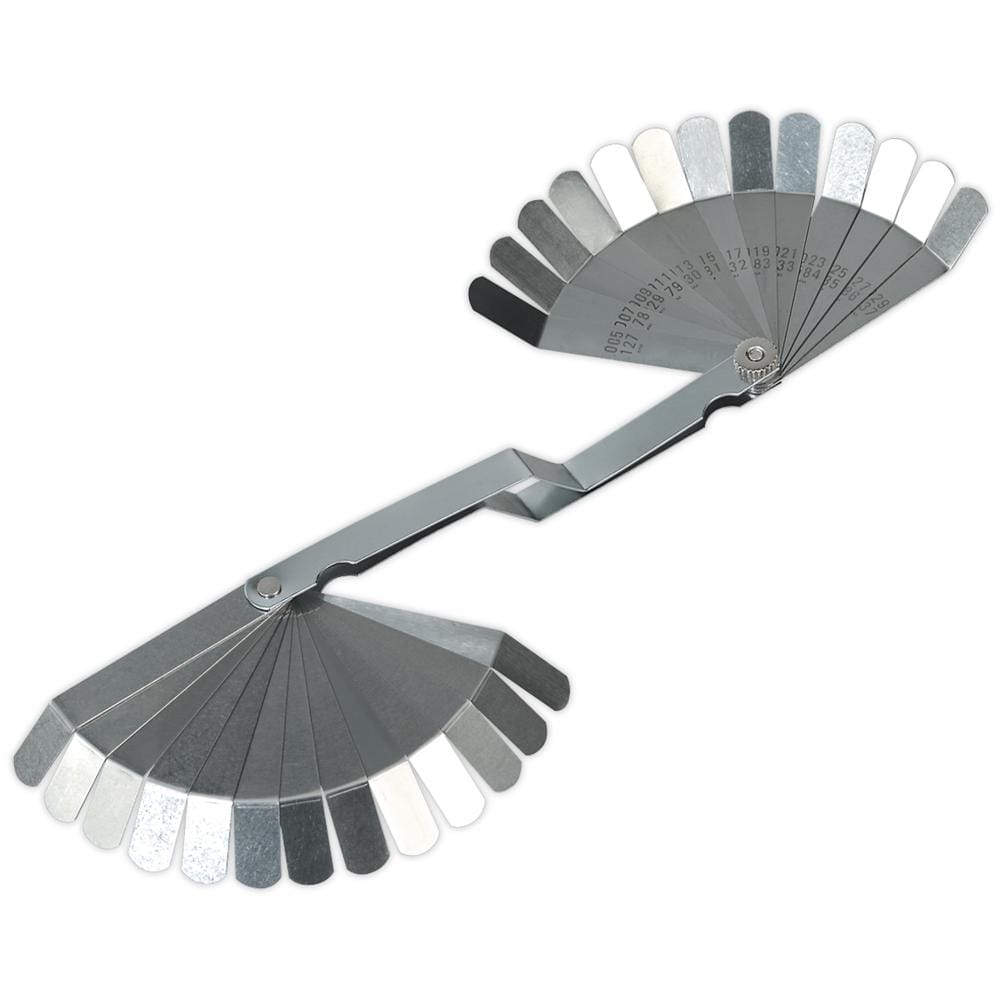

Siegen 26 Blade Feeler Gauge Offset Dual Marked

The Siegen 26 Blade Feeler Gauge is a precision measuring tool designed for checking clearances and tolerances in tight spaces where standard straight blades cannot reach. Featuring dual imperial and metric markings, this offset feeler gauge is particularly valuable for automotive work involving overhead camshaft (OHC) configurations.

The offset design incorporates a 45-degree angle with a 25mm offset tip, allowing access to recessed areas and awkward angles that would otherwise be impossible to measure accurately. With 26 individual blades ranging from 0.005" to 0.030" (0.127mm to 0.762mm), this gauge set provides comprehensive coverage for valve clearances, spark plug gaps, and other precision measurement applications. Each blade measures 100mm in length and 12.7mm in width, offering excellent reach whilst remaining manoeuvrable in confined spaces.

Both imperial and metric graduations are clearly marked on each blade, eliminating the need for conversion calculations and reducing the risk of measurement errors. This dual marking system makes the gauge suitable for working with equipment and specifications from different manufacturers or regions. The compact design and lightweight construction (0.05kg) ensure the tool can be easily carried in a toolbox or pocket for on-site use.

Features and Benefits:
• 26 blade selection providing fine increments for precise tolerance checking
• Offset tip design essential for accessing OHC configurations and restricted areas
• Dual imperial and metric markings for versatile measurement compatibility
• Lifetime guarantee for long-term reliability and peace of mind

Specifications:
Blade Size(s): Imperial 0.005", 0.006", 0.007", 0.008", 0.009", 0.010", 0.011", 0.012", 0.013", 0.014", 0.015", 0.016", 0.017", 0.018", 0.019", 0.020", 0.021", 0.022", 0.023", 0.024", 0.025", 0.026", 0.027", 0.028", 0.029", 0.030" Metric 0.127, 0.152, 0.178, 0.203, 0.229, 0.254, 0.279, 0.305, 0.330, 0.356, 0.381, 0.406, 0.432, 0.457, 0.483, 0.508, 0.533, 0.559, 0.584, 0.610, 0.635, 0.660, 0.686, 0.711, 0.737, 0.762mm
Brand: Siegen
Nett Weight: 0.05kg
Type: Dual Marked
