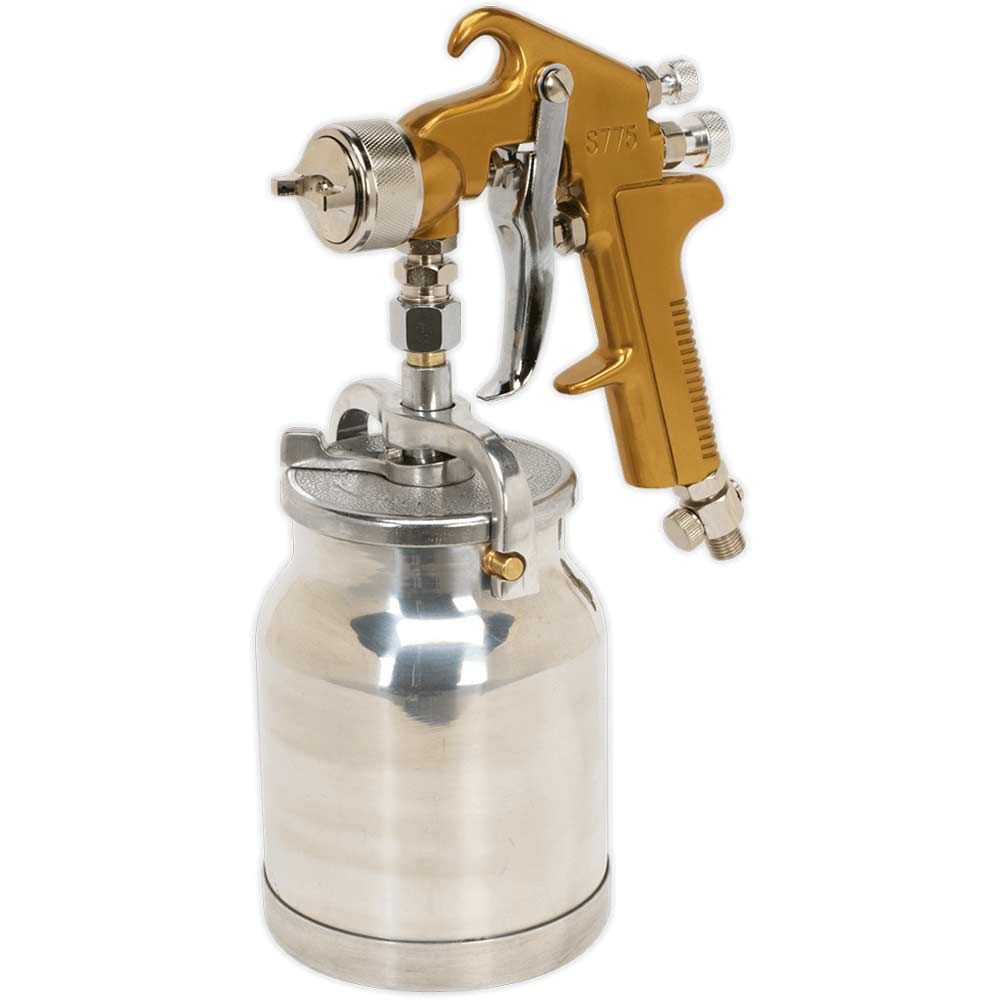

Siegen S775 Spray Gun Suction Feed

The Siegen S775 is a professional suction feed spray gun designed for automotive refinishing and general spray applications. This high-quality air spray gun combines precise control with versatility, making it well-suited for both professional bodyshops and experienced users working with automotive paints and water-based coatings.

Supplied as standard with a 1.7mm set-up, the spray gun delivers excellent atomisation for medium viscosity materials including primers, base coats and water-based paints. The integrated air regulator control allows fine adjustment of spray pressure directly at the gun, ensuring consistent results without returning to the compressor. Operating at 30-70psi with an air consumption of 12-15cfm, this spray gun works efficiently with most workshop compressors.

The cam-action suction pot provides a generous 900ml capacity, reducing the need for frequent refills during larger projects. Alternative nozzle set-ups are available separately to suit different coating viscosities - 1.5mm (Model S775-1.5) for fine finishing work, 1.8mm (Model S775-1.8) for heavier materials, or 2mm (Model S775-2.0) for high-build primers and fillers.

Features and Benefits:
• 1.7mm standard set-up ideal for automotive refinishing applications
• Fitted air regulator for precise pressure control at the gun
• Compatible with water-based paint systems
• 900ml cam-action suction pot for extended spraying sessions
• Multiple nozzle options available for different coating types

Specifications:
Air Consumption: 12-15cfm
Available Set-Up(s): 1.5, 1.8, 2mm
Brand: Siegen
Nett Weight: 1.12kg
Pot Capacity: 900ml
Recommended Air Pressure: 30-70psi
Standard Set-Up: 1.7mm
