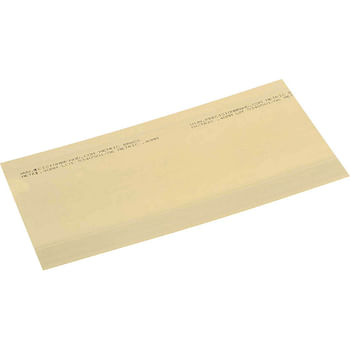

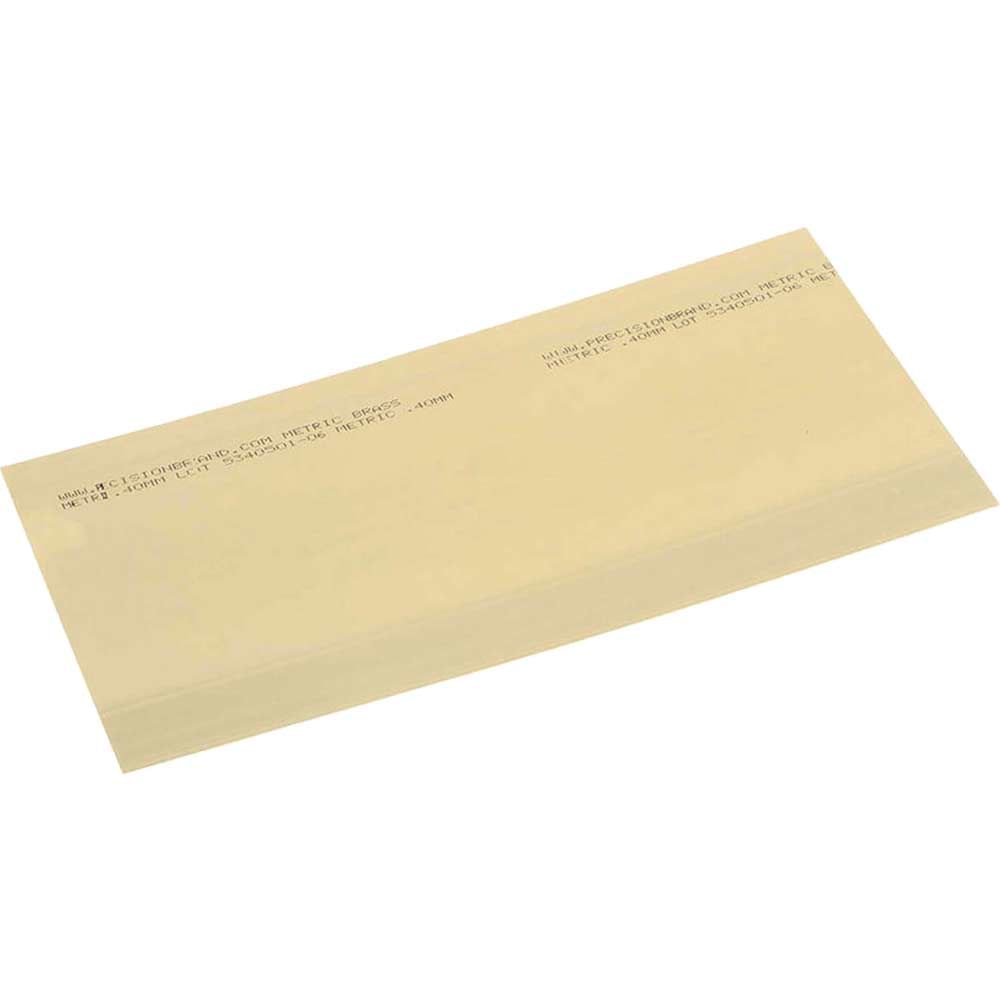

Sirius Precision 8 Piece Assorted Brass Shim Metric

The Sirius Precision 8 Piece Assorted Brass Shim Set is a professional-grade metric shimming kit, manufactured from cold rolled half hard brass alloy comprising 70% copper and 30% zinc. This precise material composition makes it particularly well suited to shimming applications in explosive atmospheres and environments where corrosion resistance is a priority.

The assorted set spans ten thickness increments from 0.05mm to 0.80mm, giving engineers, toolmakers, and precision machinists the flexibility to achieve accurate tolerances across a wide range of applications. Each individual shim has its thickness printed directly onto it, enabling rapid identification during use and reducing the risk of errors on site or in the workshop.

Thanks to its excellent forming quality, the brass shim stock can be lightly drawn, blanked, or stamped to shape, making it equally useful in metal fabrication and sculpture work. The material meets internationally recognised standards including SAE-CA-260, CDA 260, ASTM B-19, and ASTM B-36, providing confidence in material consistency and performance.

Features and Benefits:
• Cold rolled half hard 70/30 brass alloy for consistent accuracy and temper
• Suitable for use in explosive atmospheres and corrosive environments
• Thickness printed directly onto each shim for quick, reliable identification
• Can be lightly drawn, blanked, or stamped for custom fabrication
• Meets SAE-CA-260, CDA 260, ASTM B-19 and ASTM B-36

Specifications:
Rockwell Hardness: 30T 56–68
Tensile Strength: 57,000–67,000 p.s.i.
Elongation: 18 to 42% in 2"
Width: 165mm
Height: 25mm
Length: 470mm
Weight: 1427g
Code: 77-517-999

Contents:
0.05mm
0.10mm
0.15mm
0.20mm
0.25mm
0.30mm
0.40mm
0.50mm
0.65mm
0.80mm
