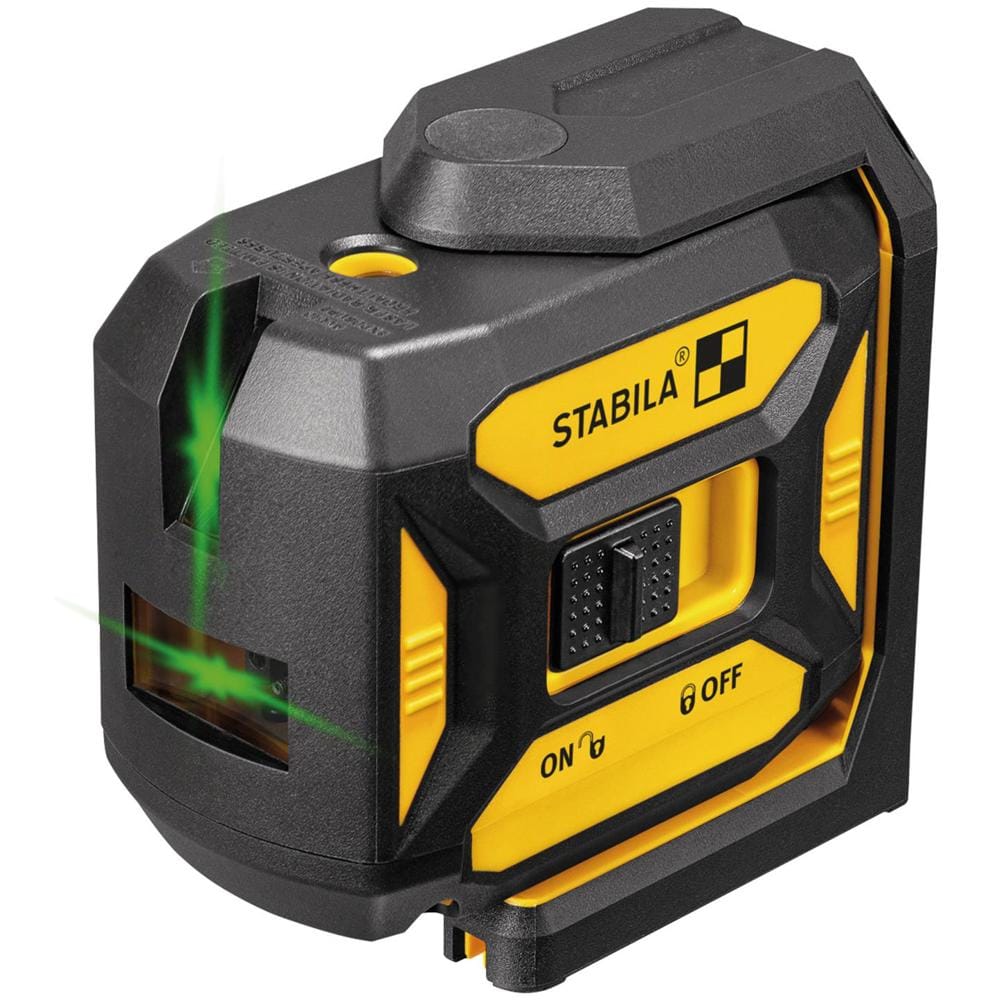

Stabila LAX 320 G Cross Line Plus Plumb Point Laser level
The Stabila LAX 320 G Cross Line Plus Plumb Point Laser with plumb-line dots enables you to work efficiently on the horizontal and vertical planes. Work directly on long, sharp green laser lines, with high visibility up to 30m thanks to STABILA GREENBEAM technology. High-performance diodes with large opening angle means the vertical line covers almost the entire room. There is also a plum line (upwards and downwards) for accurate transfer of layouts from floor to ceiling. The rotatable casing for flexible positioning of the vertical line.
Easy operation, each button has just one function. The quick self-levelling function allows the laser to be used immediately thanks to pendulum technology designed for the construction site. Mark diagonals in manual mode – by locking the pendulum and using the ST-K-S tripod (sold separately), the laser can be positioned at any inclination. Pulse-modulated laser lines, which can be activated when needed, allow you to work with line receivers (sold separately).
The energy-saving laser diodes enables an operating time of up to 20 hours. To extend the battery's service life, the lines can be switched on and off individually, depending on the application.
Protection rating IP54 for protection against dust deposits inside and against spray from all directions. The casing can be rotated inwards to protect the laser optics from dust and scratches in the park position. Fitted with a shock-absorbent STABILA soft grip casing that protects the laser from impact. A pendulum locking mechanism prevents damage and stops the accuracy being adjusted during transportation.
The 1/4in thread allows for tripod mounting or telescopic support and rare-earth magnet system for adhering to metal objects.
Supplied with:
Attachable SLB 320 laser base for direct positioning and working on U-profiles.
Wall bracket for positioning the laser at the desired working height.
Target plate with magnetic holder and cross-hair for aligning the laser with a target point – for suspended ceilings, the target plate can be attached to metal rails with the magnetic holder.
Belt pouch for easy transport and safe storage.
Specifications:
Accuracy (?mm/m): 0.3
Max. Range (m): 30
Working Range: 30m
Line Colour: Green Beam
Accuracy Range: ± 0.3mm/m
Self Levelling Range: ± 4°
Power: 3 x AA batteries (supplied)
Run Time: 20 Hours approx.
Protection Class: IP54
Tripod Mount Thread: 1/4in
Easy operation, each button has just one function. The quick self-levelling function allows the laser to be used immediately thanks to pendulum technology designed for the construction site. Mark diagonals in manual mode – by locking the pendulum and using the ST-K-S tripod (sold separately), the laser can be positioned at any inclination. Pulse-modulated laser lines, which can be activated when needed, allow you to work with line receivers (sold separately).
The energy-saving laser diodes enables an operating time of up to 20 hours. To extend the battery's service life, the lines can be switched on and off individually, depending on the application.
Protection rating IP54 for protection against dust deposits inside and against spray from all directions. The casing can be rotated inwards to protect the laser optics from dust and scratches in the park position. Fitted with a shock-absorbent STABILA soft grip casing that protects the laser from impact. A pendulum locking mechanism prevents damage and stops the accuracy being adjusted during transportation.
The 1/4in thread allows for tripod mounting or telescopic support and rare-earth magnet system for adhering to metal objects.
Supplied with:
Attachable SLB 320 laser base for direct positioning and working on U-profiles.
Wall bracket for positioning the laser at the desired working height.
Target plate with magnetic holder and cross-hair for aligning the laser with a target point – for suspended ceilings, the target plate can be attached to metal rails with the magnetic holder.
Belt pouch for easy transport and safe storage.
Specifications:
Accuracy (?mm/m): 0.3
Max. Range (m): 30
Working Range: 30m
Line Colour: Green Beam
Accuracy Range: ± 0.3mm/m
Self Levelling Range: ± 4°
Power: 3 x AA batteries (supplied)
Run Time: 20 Hours approx.
Protection Class: IP54
Tripod Mount Thread: 1/4in
Specifications
More Help
If you require more information or assistance with this product please consult the links below :
There is a Stabila manufacturer warranty for this product which covers all manufacturing defects for the normal lifetime of the tool but does not cover wear and tear or damaged cause by misuse. This does not affect your statutory rights.
