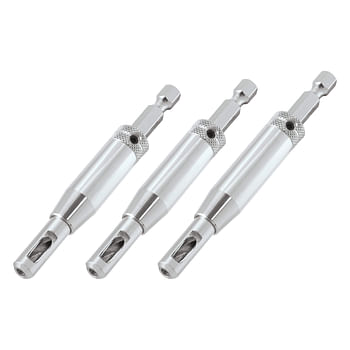

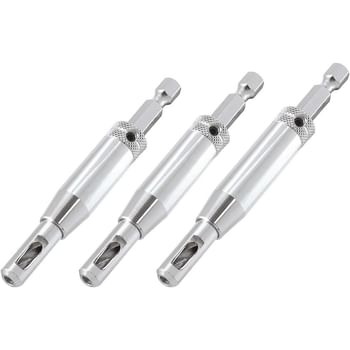

Trend 3 Piece Quick Release Drill Bit Guide Set

The Trend 3 Piece Quick Release Drill Bit Guide Set is a precision drilling accessory designed for accurate self-centred pilot hole drilling when fitting hinges and lock face plates.

The set features a 1/4 inch hex shank for use in quick tool change drills, quick chucks, and impact drivers, making it a practical addition to any joiner's or carpenter's toolkit. Each guide is sprung loaded to ensure the drill bit retracts safely after use, reducing the risk of accidental contact with the exposed bit between drillings.

Constructed with High Speed Steel (HSS) drill bits for extended service life, the guides are suitable for use on timbers and boards. They are easily dismantled for cleaning or drill bit replacement, keeping maintenance straightforward on site.

The three guides cover screw sizes No.6 (3.5 mm), No.8 (4.0 mm), and No.10 (5.0 mm), making this set ideal for general joinery and door hardware installation work.

Features and Benefits:
• 1/4 inch hex quick release shank — compatible with quick tool change drills, quick chucks, and impact drivers
• Self-centred design for accurate pilot hole placement on hinges and lock face plates
• Sprung loaded mechanism retracts the drill bit safely after each use
• HSS drill bits for improved durability and longer service life
• Easily dismantled for cleaning and drill bit replacement

Specifications:
Shank Diameter: 1/4 inch hex
D: 2.4 mm (3/32")
D: 2.8 mm (7/64")
D: 3.6 mm (9/64")
Screw size: No.6 (3.5 mm)
Screw size: No.8 (4.0 mm)
Screw size: No.10 (5.0 mm)

Contents:
1 x Drill bit guide 3/32"
1 x Drill bit guide 7/64"
1 x Drill bit guide 9/64"
