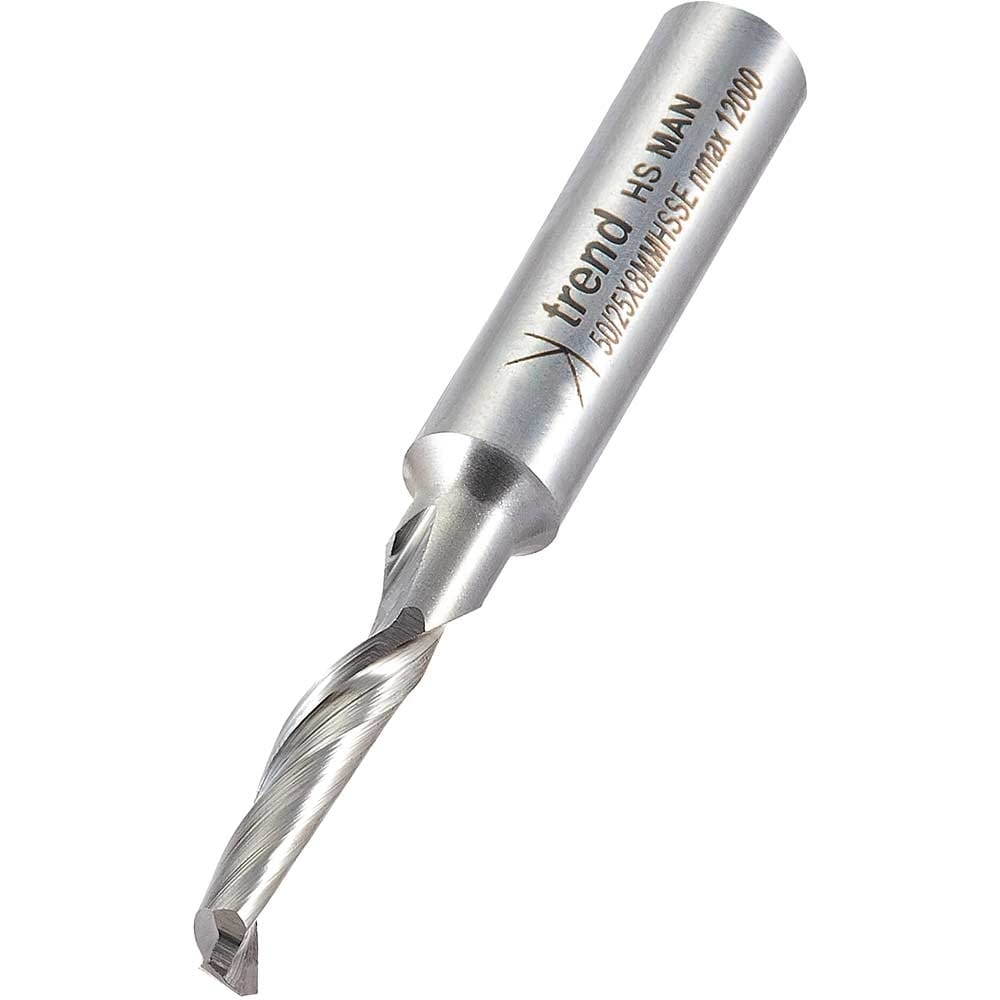

Trend Aluminium UPVC Single Flute Helical Upcut Cutter

This Trend HSSE Single Flute Helical Upcut Cutter features a 5mm diameter with an 18mm cut length and 8mm shank, offering a practical mid-range cut depth for slotting and recessing work in aluminium and uPVC extrusions. The 18mm cut length provides a useful step up from standard short-flute options where slightly deeper profiles are required.

The single flute helical upcut geometry delivers a precise shearing action with fast waste clearance, producing clean, accurate results in both uPVC and aluminium materials. The 8mm shank ensures solid support and reduced deflection during CNC routing.

Manufactured from special grade HSSE for extended tool life on abrasive anodised surfaces. Always use with a coolant, wax stick, or lubricant, and ensure the workpiece is securely clamped.

Features and Benefits:
• 18mm cut length for mid-depth slotting and recessing applications
• Single flute helical upcut for a clean shearing cut and fast chip clearance
• HSSE grade for enhanced durability on abrasive anodised finishes
• 8mm shank for increased rigidity and support under load
• Suitable for aluminium, anodised duralumin, and uPVC
• 'K' mark shank for safe working practices

Specifications:
Diameter Cut: 5mm
Cut Length: 18mm
Shank Diameter: 8mm
Overall Length Metric: 60mm
Type or Grade: Up-cut
