Trend AR/JIG Worktop Aperture and Radius Jig

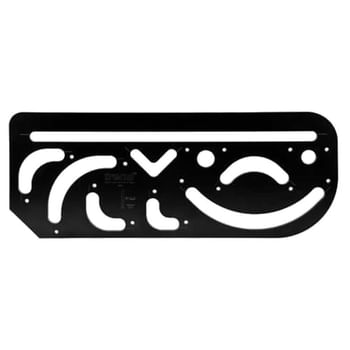

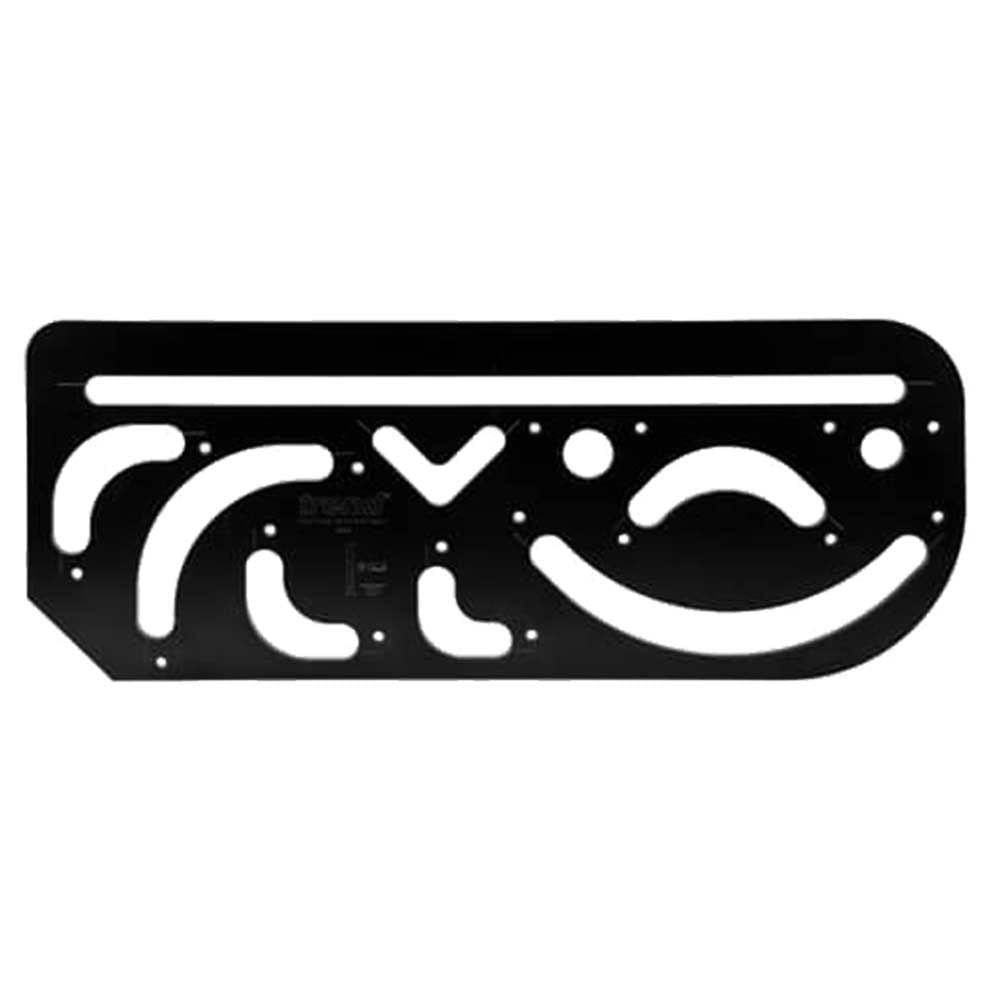

The Trend AR/JIG Worktop Aperture and Radius Jig is a precision routing jig designed for cutting apertures, recesses, and radius curves in kitchen worktops to accommodate sinks, hobs, and curved cabinetry installations.

Constructed from 12mm CNC machined Compact Grade High Pressure Laminate, this jig is built to withstand repeated use on site. The material offers excellent dimensional stability, ensuring accurate, repeatable results across multiple cuts.

The jig handles a wide range of routing tasks in a single tool. Internal radius curves are available at 40mm, 60mm, 80mm, 100mm, 150mm, and 250mm, while external radii of 50mm, 100mm, and 200mm are also catered for. A central straight slot accommodates cuts up to 820mm in length, and a 90-degree corner cut can be combined with the straight slot to complete full sink or hob apertures.

Additional features include a 45-degree end cut facility and recesses for 26mm and 35mm cabinet door hinges, making this jig suitable for a broader range of kitchen fitting tasks. Positioning is aided by engraved sight lines and paired peg holes for each radius curve, which index the jig accurately to the worktop edge.

Each radius curve is paired with peg holes to locate the jig consistently at the worktop edge. The included ABS plastic pins provide reliable registration without risk of marking the workpiece surface.

Features and Benefits:
• CNC machined High Pressure Laminate body for accurate, durable performance
• Six internal radius curves (40mm–250mm) plus three external radii (50mm, 100mm, 200mm)
• Central slot for straight cuts up to 820mm — ideal for sink and hob apertures
• 90-degree corner cut combined with straight slot for complete aperture routing
• 45-degree end cut and 26mm/35mm hinge recess facility for cabinet fitting work
• Engraved sight lines and peg holes for quick, accurate jig positioning
• ABS plastic pins for positive, mark-free workpiece registration

Contents:
4 x Pins
1 x Manual

Specifications:
Jig thickness: 12mm
Maximum straight cut length: 820mm
Internal radii: 40mm, 60mm, 80mm, 100mm, 150mm, 250mm
External radii: 50mm, 100mm, 200mm
Hinge recess sizes: 26mm, 35mm
Required router shank capacity: 12.7mm (1/2 inch)
Minimum router power: 1300W
Required guide bush outside diameter: 30mm
Required cutter diameter: 12.7mm (1/2 inch)
Required cutter cut length: 50mm (2 inch)
