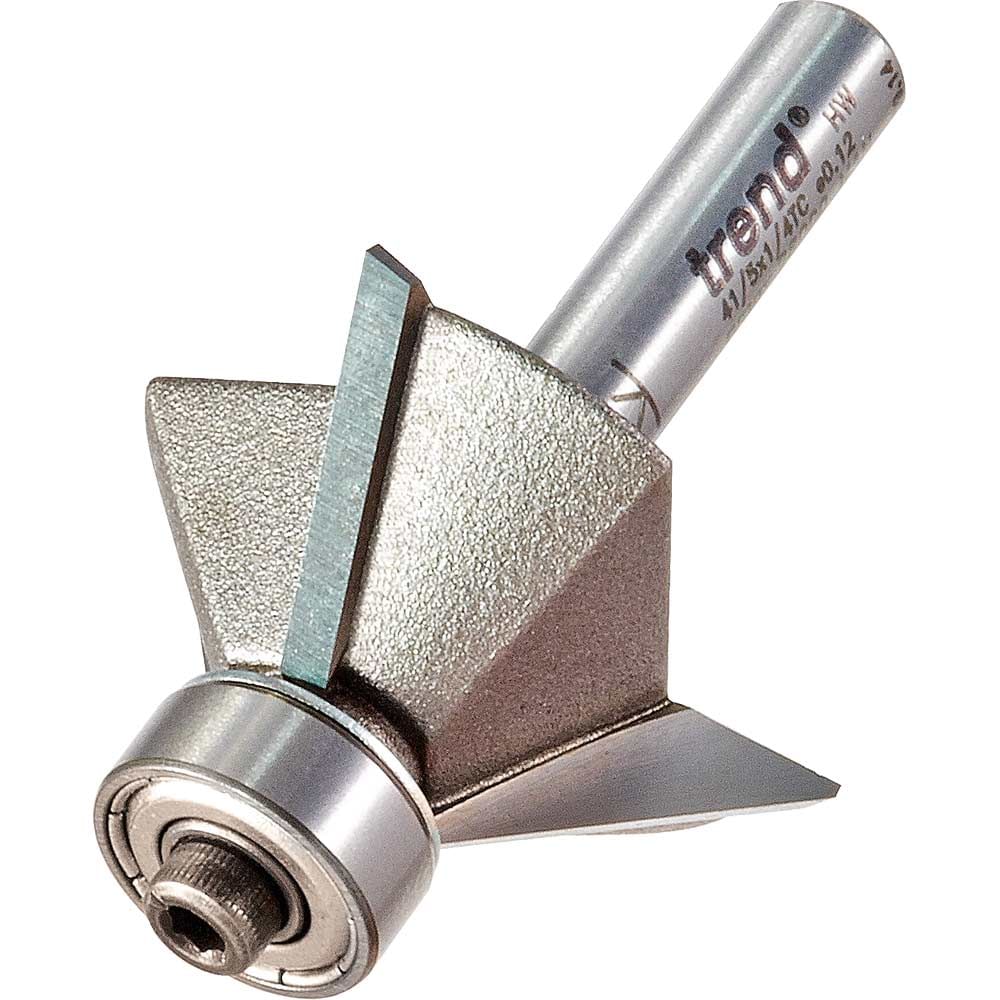

Trend Bearing Guided Triple Flute Chamfer Router Bit

The Trend Bearing Guided Triple Flute Chamfer Router Bit is a precision 45° chamfer bit designed to produce exceptionally clean, smooth angled profiles on timber.

The triple flute configuration sets this bit apart, enabling a finer finish compared to standard single or double flute chamfer bits. This makes it particularly well suited to decorative joinery where surface quality is critical.

The included bearing guide runs against the workpiece edge to maintain a consistent cut depth and angle throughout the pass. It is especially well suited for profiling newel posts and stair caps, where accurate, repeatable chamfers are essential to the finished appearance.

With a 34mm cutting diameter, an 11mm cut length, and a 1/4" shank, this bit is compatible with a wide range of handheld routers and router tables commonly used in carpentry and joinery work.

Features and Benefits:
• Triple flute design delivers an extra fine finish on timber profiles
• 45° chamfer angle ideal for decorative edge work and joinery
• Bearing guided for consistent, controlled cutting depth
• Suitable for newel posts and stair caps
• Compatible with standard 1/4" shank routers

Specifications:
Shank Diameter: 1/4"
Cutting Diameter: 34mm
Cut Length: 11mm
Overall Length: 50mm
Bearing Diameter: 12.7mm (1/2")
Angle: 45°
