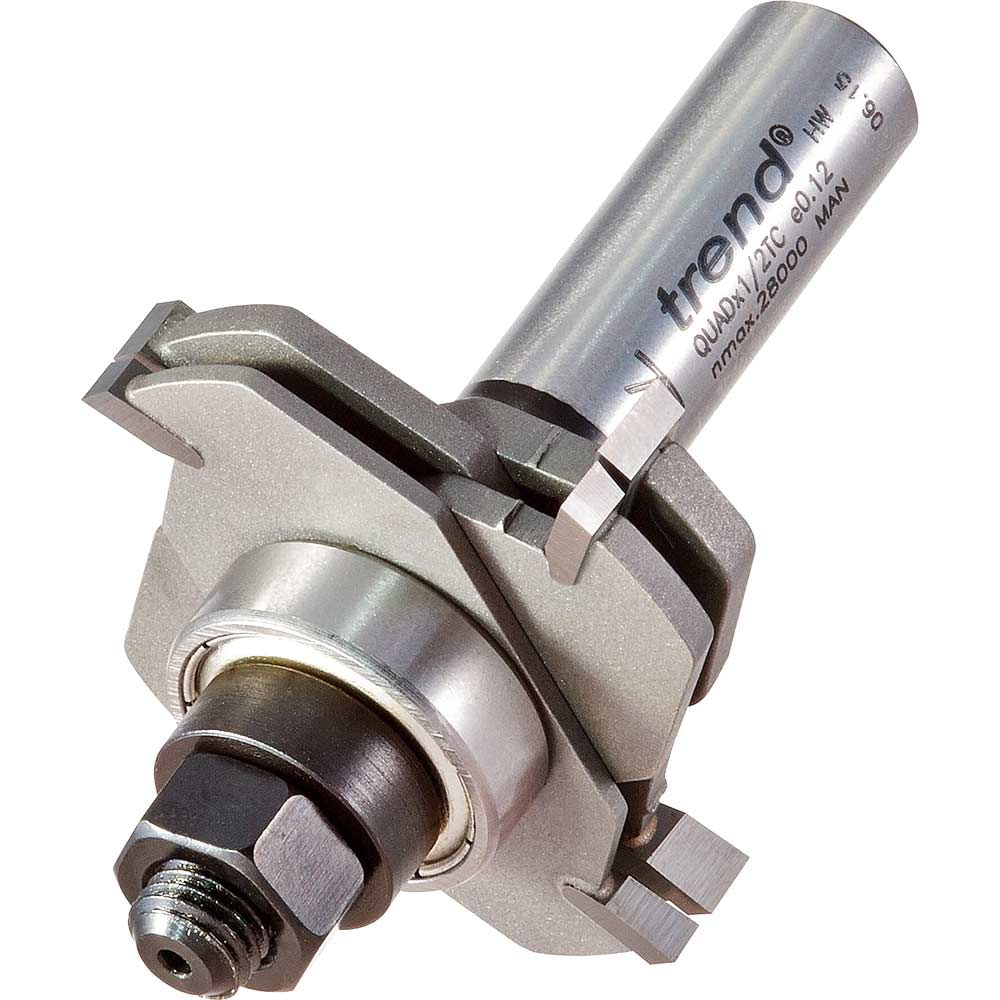

Trend Bearing Guided Variable Quad Groover Set

The Trend Bearing Guided Variable Quad Groover Set is a professional router bit set designed for precision grooving and jointing work, offering exceptional versatility in a single kit.

Fitted with a 1/2 inch shank, the set delivers four fixed grooving widths of 3.2mm, 4.0mm, 4.8mm and 6.3mm. When the four 2-wing groovers are used in combination on the arbor, the cut width becomes infinitely variable from 6.6mm to 18mm in fine 0.1mm increments — giving carpenters and joiners precise control over groove dimensions to suit the material in hand.

The included ball bearing enables a jointing facility, making this set suitable for edge-to-edge jointing applications as well as standard grooving work. It can also be used for tongue and groove work on boards ranging from 9mm to 22mm, extending its usefulness across a range of timber joinery tasks.

Each of the four groovers features a 7.94mm (5/16 inch) bore and mounts onto the supplied arbor, allowing the cutters to be used individually or stacked in combination. This makes the set a practical choice for cabinet makers, shopfitters, and joiners who regularly work with varying material thicknesses.

Features and Benefits:
• Infinitely variable groove width from 6.6mm to 18mm in 0.1mm increments
• Four fixed grooving widths: 3.2mm, 4.0mm, 4.8mm and 6.3mm
• Bearing-guided jointing facility for edge jointing applications
• Suitable for tongue and groove work on 9mm to 22mm board
• Cutters can be used singly or combined on the arbor for flexible output
• 1/2 inch shank for compatibility with standard half-inch router collets

Specifications:
Diameter: 47.6mm
Cut Length: 3.2mm to 18mm
Overall Length: 76.2mm
Bearing Diameter: 22mm
Rebate: 13mm
Shank: 1/2 inch
Bore: 7.94mm (5/16 inch)

Contents:
4 x 2 Wing Groovers
1 x Arbor
1 x Bearing
