Trend Contractor One Piece Hinge Jig

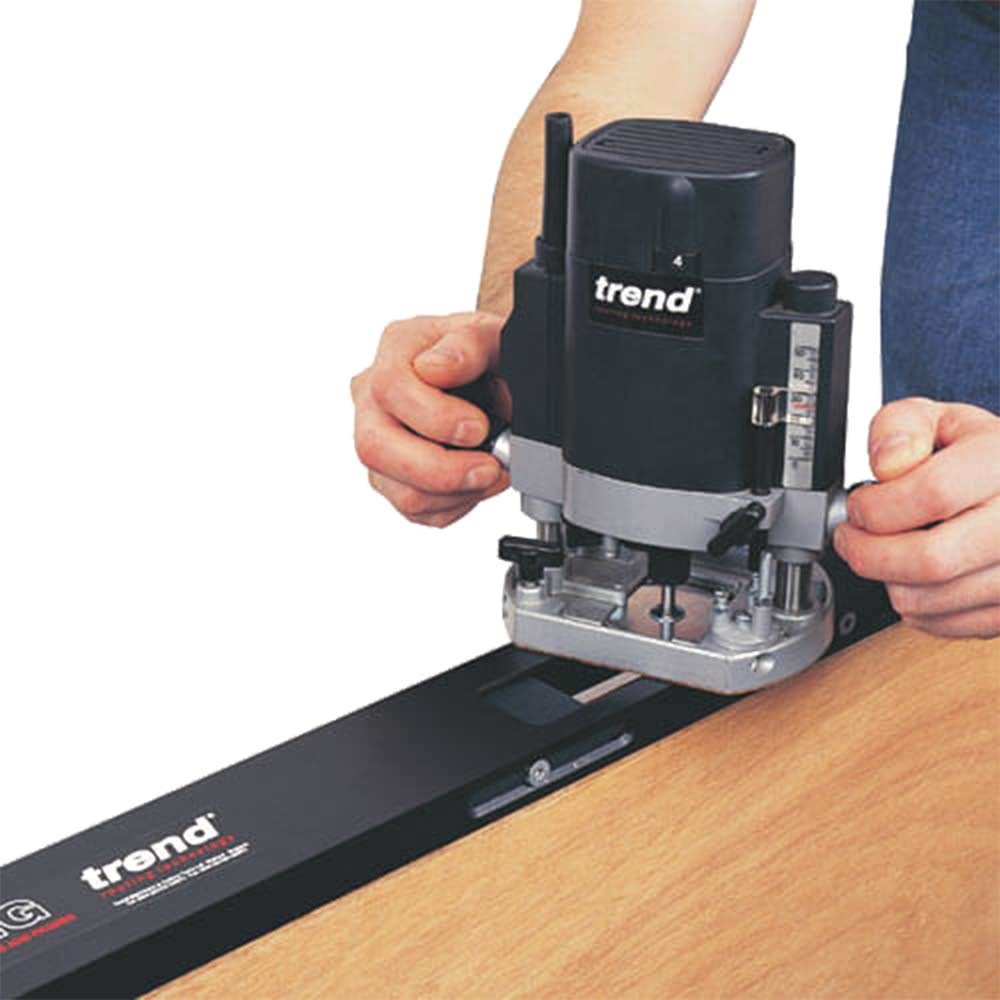

The single piece Contractor Hinge Jig is designed for recessing hinges in wooden doors & frames with a plunge router.

It is easy to use with minimal setting-up time, completing the job both accurately & quickly.

Used on-site & in joinery shops to increase productivity with excellent results.

Four apertures for fire door requirements.

No need for marking out in the conventional way.

Quick & simple to set-up as the hinge is used as the pattern.

Clean & accurate recesses are achieved every time. Suitable for timber based doors & square butt hinges.

Can be used on both inside and outside doors, rebated frames and on maximum 25mm thick fixed stops.

Use with a light duty plunge router with 1/4 inch collet.

Long reach router cutter required, 12mm diameter with 70mm overall length.

Angled position slots to prevent creep.

Unibase may be needed.

T4EK router requires a ref. UNIBASE or special guide bush ref. GB/T4/160.

Contents:
4 x Apertures
2 x Bradawls with spacer
1 x 16mm guide bush
1 x T-Handle hex key 4mm
1 x 4mm spacing gauge
1 x Plastic storage tube

Features and Benefits
• Four apertures for fire door requirements
• No need for marking out in the conventional way
• Quick & simple to set-up as the hinge is used as the pattern
• Clean & accurate recesses are achieved every time
• Suitable for timber based doors & square butt hinges
• Can be used on both inside and outside doors, and on maximum 25mm thick fixed stops
• Use with a light duty plunge router with 1/4" collet

Contents
• Contractor Hinge Jig
• 4 x Apertures
• 2 x Bradawls with spacer
• 1 x 16mm guide bush
• 1 x T-Handle hex key
• 1 x 4mm spacing gauge
• 1 x Plastic storage tube
