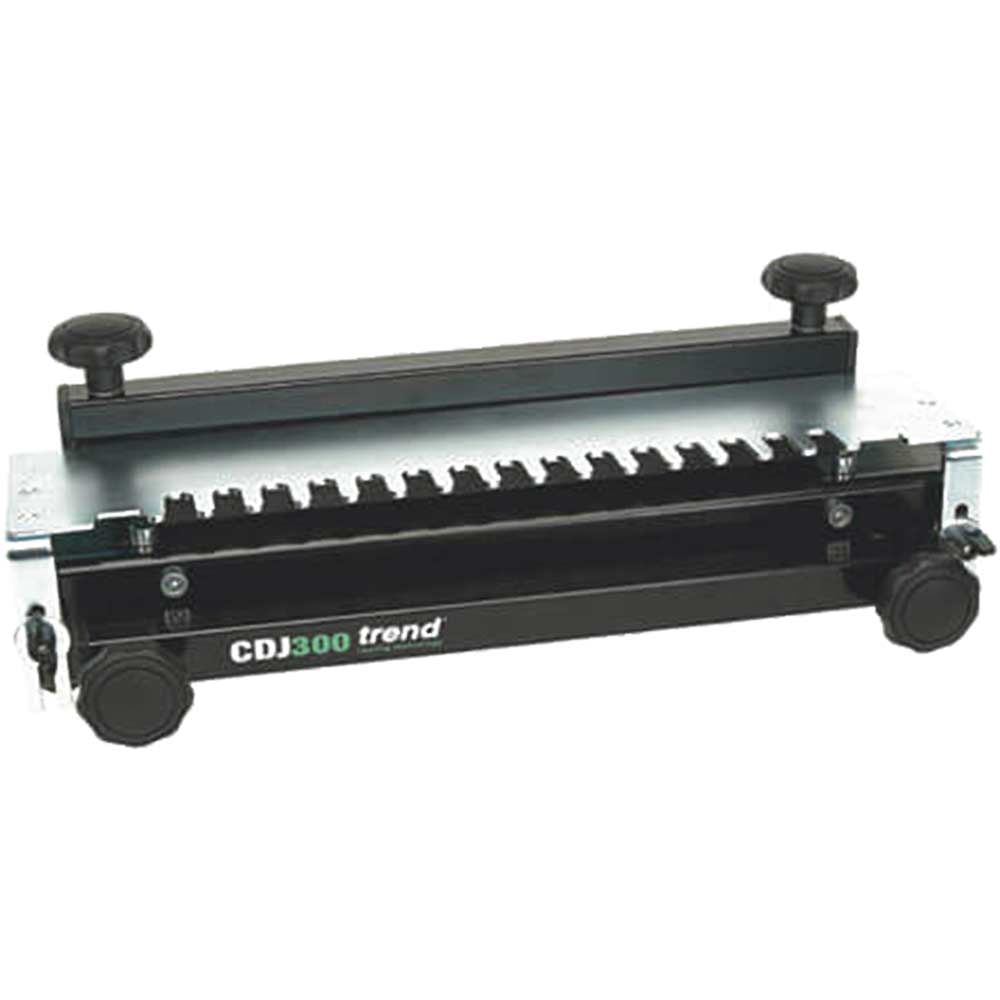

Trend Craft Dovetail Jig 300Mm

The Trend Craft Dovetail Jig 300mm is a precision woodworking jig designed to produce accurate half blind dovetails and rebated dovetails in a single operation.

Constructed from laser-cut zinc plated steel, the template offers reliable precision for consistent results across repeated use. A packing piece is included as standard, and the jig cuts 12.7mm (½ inch) wide dovetail joints, making it well suited to drawer and cabinet construction where tight, elegant joinery is required.

The jig is compatible with a range of routers, though a Unibase and fine height adjuster may be required depending on the make of router being used. For carpenters and woodworkers looking to expand their capabilities, a range of accessory templates is also available, covering box joints, dowel joints, and through dovetails.

Features and Benefits:
• Cuts 12.7mm half blind dovetails and rebated dovetails in one operation
• Precision laser-cut zinc plated steel template for consistent accuracy
• Packing piece included as standard
• Accessory templates available for box joint, dowel, and through dovetail applications
• Compatible with a wide range of routers

Contents:
1 x 1/4" Shank TCT 104 degree dovetail cutter
1 x 15.8mm Guide bush

Specifications:
Template Width: 300mm
Dovetail Width: 12.7mm (1/2 inch)
Guide Bush Diameter: 15.8mm
Cutter Shank: 1/4"
Cutter Angle: 104 degrees
