Trend CRAFTPRO Staggered Mortise Router Cutter

The Trend CRAFTPRO Staggered Mortise Router Cutter is a TCT (tungsten carbide tipped) router cutter designed for deep mortising and grooving applications, making it a reliable choice for joiners, carpenters, and furniture makers.

The staggered cutting surfaces are engineered to provide excellent chip clearance during deep plunge cuts, reducing heat build-up and maintaining cutting efficiency. This makes it particularly well suited to lock mortising work, where consistent, clean results are essential.

For standard lock mortising to achieve the 19mm mortise width, two width cuts are required using this 16mm diameter cutter. The cutter will plunge and clear chips to a depth of 70mm, though multiple passes are recommended to protect the cutter and avoid overloading the router motor.

Features and Benefits:
• TCT construction with staggered cutting surfaces for efficient chip clearance
• Capable of plunging and clearing chips to 70mm depth
• Suitable for lock mortising, deep grooving, and furniture joinery
• 1/2" shank for use with 1/2" collet routers

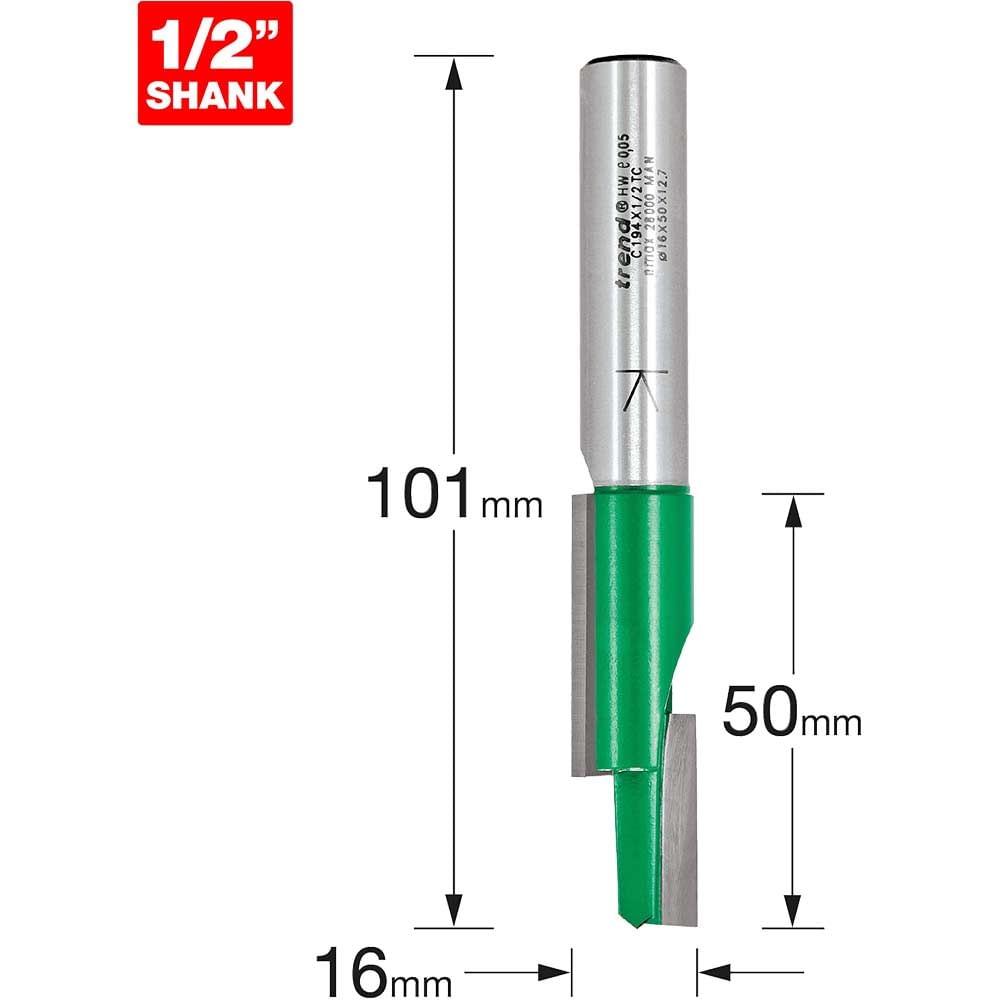

Specifications:
Shank Diameter: 1/2"
Diameter (Metric): 16mm
Diameter (Imperial): 5/8"
Cut Length (Metric): 50mm
Cut Length (Imperial): 2"
Overall Length: 101mm
