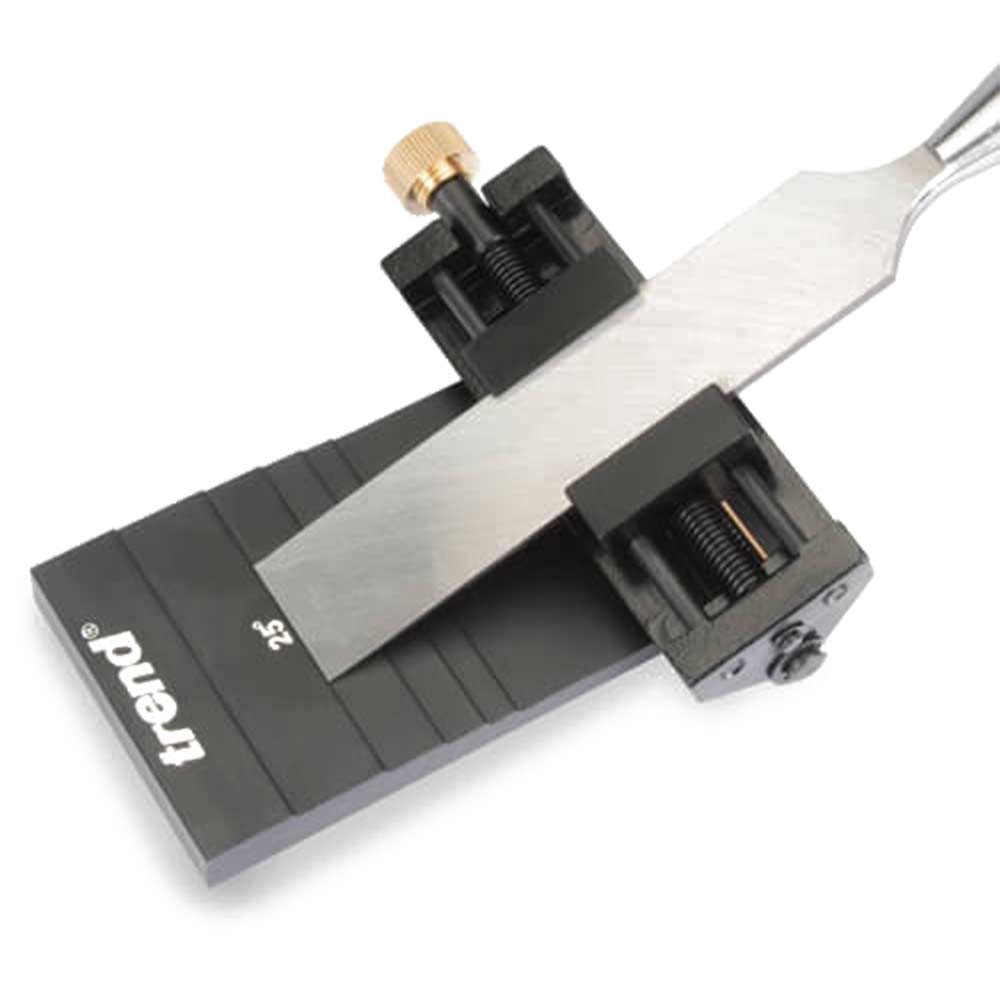

Trend Diamond Honing Guide Set

The Trend Diamond Honing Guide Set is a precision sharpening accessory designed to maintain consistent bevel angles on chisels and plane irons when used with a diamond whetstone.

The alloy-bodied guide features a precision roller that self-centres to clamp bevel edge chisels from 10mm to 32mm wide and plane irons up to 60.3mm wide, with a maximum tool thickness of 7mm. This makes it suitable for a wide range of woodworking edge tools commonly used by carpenters and joiners.

The included setting device takes the guesswork out of angle selection, with preset positions for 25°, 30°, 35°, and 40° bevel angles. An adjustable stop allows precise blade projection setting, ensuring repeatable results every time you sharpen. The guide is designed for use with 63mm wide by 178mm long bench stones or workshop stones.

Please note: this guide is not suitable for use with firmer chisels or short blade (butt) chisels.

Features and Benefits:
• Precision roller with alloy body for accurate, consistent honing
• Self-centring clamp accommodates bevel edge chisels from 10mm to 32mm
• Accommodates plane irons up to 60.3mm wide
• Setting device preset for 25°, 30°, 35°, and 40° bevel angles
• Adjustable stop for repeatable blade angle setting
• Positive location for roller and blade ensures stability during use

Contents:
1 x Diamond honing guide
1 x Diamond honing guide setting device

Specifications:
Chisel capacity (min): 10mm (3/8 inch)
Chisel capacity (max): 32mm (1-1/4 inch)
Plane iron capacity (max): 60.3mm (2-3/8 inch)
Maximum tool thickness: 7mm
Compatible stone width: 63mm (2-1/2 inch)
Compatible stone length: 178mm (7 inch)
Preset bevel angles: 25°, 30°, 35°, 40°
