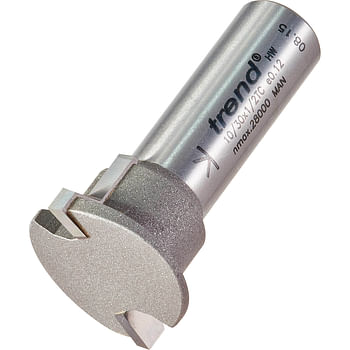

Trend Drawer Lock Jointer Router Cutter

The Trend Drawer Lock Jointer Router Cutter is a specialist routing bit designed to create strong, interlocking joints in drawer construction by significantly increasing the gluing surface area between components.

This cutter is particularly well suited to cabinet makers and joiners working on drawer boxes, where joint integrity is essential for long-term durability. By producing a drawer lock profile, the bit mechanically aligns and bonds the drawer sides and fronts with greater holding power than a simple butt joint.

With a 1/2" shank diameter, the cutter is compatible with standard half-inch router collets and offers a 25.4mm cutting diameter with a 12.7mm cut length, making it suitable for use with a table-mounted router for precise, repeatable results.

Features and Benefits:
• Increases gluing surface area for a stronger drawer joint
• Produces a mechanical drawer lock profile for improved alignment during assembly
• 1/2" shank for compatibility with standard router tables and collets
• Compact 12.7mm cut length suited to typical drawer material thicknesses

Specifications:
Shank Diameter: 1/2"
Cutting Diameter: 25.4mm (1")
Cut Length: 12.7mm (1/2")
Overall Length: 49mm
