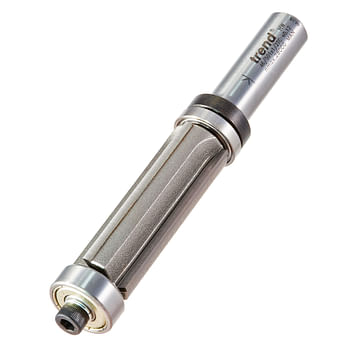

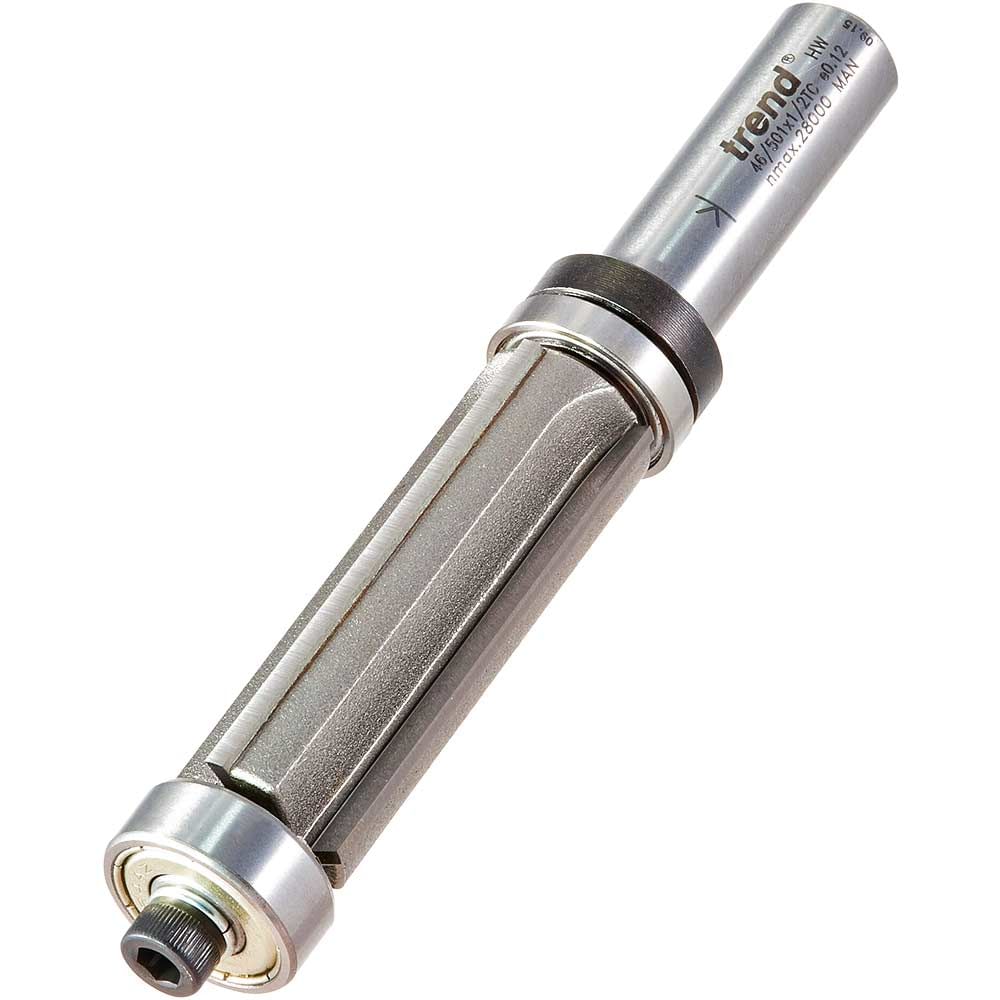

Trend Four Flute Double Bearing Guided Trimmer Router Bit

The Trend Four Flute Double Bearing Guided Trimmer Router Bit is a professional TCT trimming cutter designed for precise template routing and flush trimming on timber and similar materials.

Featuring four cutting flutes, this bit delivers a super fine finish that reduces or eliminates the need for further sanding or clean-up. The TCT (tungsten carbide tipped) construction ensures durability and long service life under regular workshop use.

A key advantage of this bit is its dual ball bearing arrangement, with bearings fitted to both the nose and the shank. This allows templates to be positioned either on top of or beneath the workpiece, giving you greater flexibility when routing complex or awkward profiles.

This dual-bearing design also makes it easier to work with irregular or difficult grained timber. By simply flipping the component, you can rout against a more favourable grain direction, reducing the risk of tearout and improving surface quality. Ideal for cabinetmakers, joiners, and pattern routing work requiring consistent, repeatable results.

Features and Benefits:
• Four-flute TCT construction for a super fine cutting finish
• Ball bearings on both nose and shank for versatile template placement
• Template can be positioned above or below the workpiece
• Suitable for irregular grained timber — simply flip the component to rout with the grain
• 1/2" shank for secure, stable fitting in compatible routers
• Light trimming work — maximum 2mm per pass

Specifications:
Shank Diameter: 1/2"
Diameter (Metric): 19.1mm
Diameter (Imperial): 3/4"
Cut Length (Metric): 50mm
Cut Length (Imperial): 1 31/32"
Overall Length (Metric): 114.5mm
Bearing Diameter: 19.1mm
