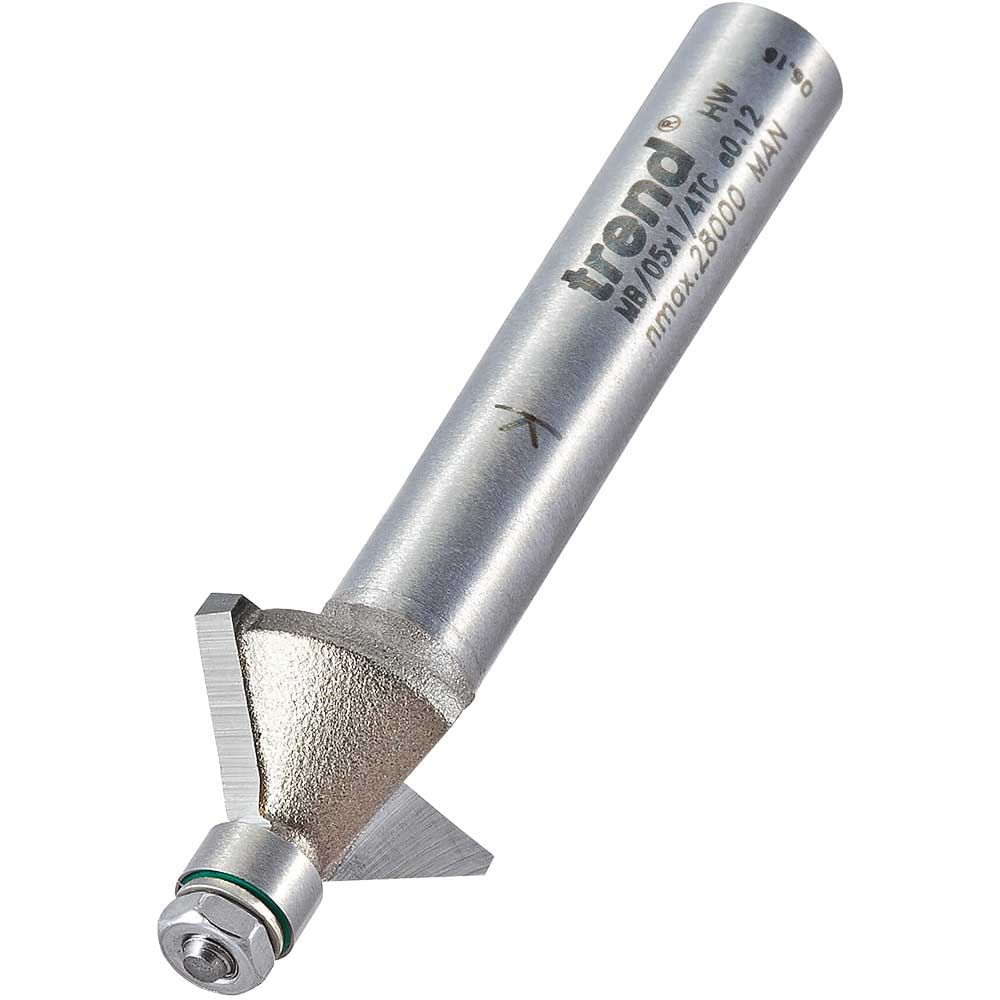

Trend Mini Bearing Guided Chamfer Router Cutter

The Trend Mini Bearing Guided Chamfer Router Cutter is a precision routing bit designed for detailed chamfering work on wood and plastic, fitted with a miniature bearing guide for accurate edge profiling.

The small-diameter bearing is purpose-designed to access tight spaces and produce sharp, clean corners — making this cutter particularly well-suited to sign-making, musical instrument building, and other intricate small-scale projects. The 45° cutting angle delivers a consistent chamfer along the full length of each pass.

A key advantage of this cutter's design is its constant cutting edge, which removes the need for hand sanding or filing after routing. This saves time on finishing and helps maintain clean, professional results across detailed or repetitive work.

The miniature bearing has an expected service life of approximately 100 linear metres, after which it should be replaced as a consumable part. Replacement bearings should be factored into the running cost for regular production work.

Features and Benefits:
• Miniature bearing guide for access to tight spaces and sharp corner definition
• 45° chamfer angle for clean, consistent edge profiling
• Constant cutting edge eliminates the need for post-routing sanding or filing
• Suitable for use on wood and plastic
• Ideal for sign-making, musical instrument building, and small intricate projects
• 1/4" shank for compatibility with standard routers

Specifications:
Shank Diameter: 1/4"
Diameter: 14.3mm
Cut Length: 6.35mm
Overall Length: 47mm
Bearing Diameter: 4.8mm
Angle: 45°
