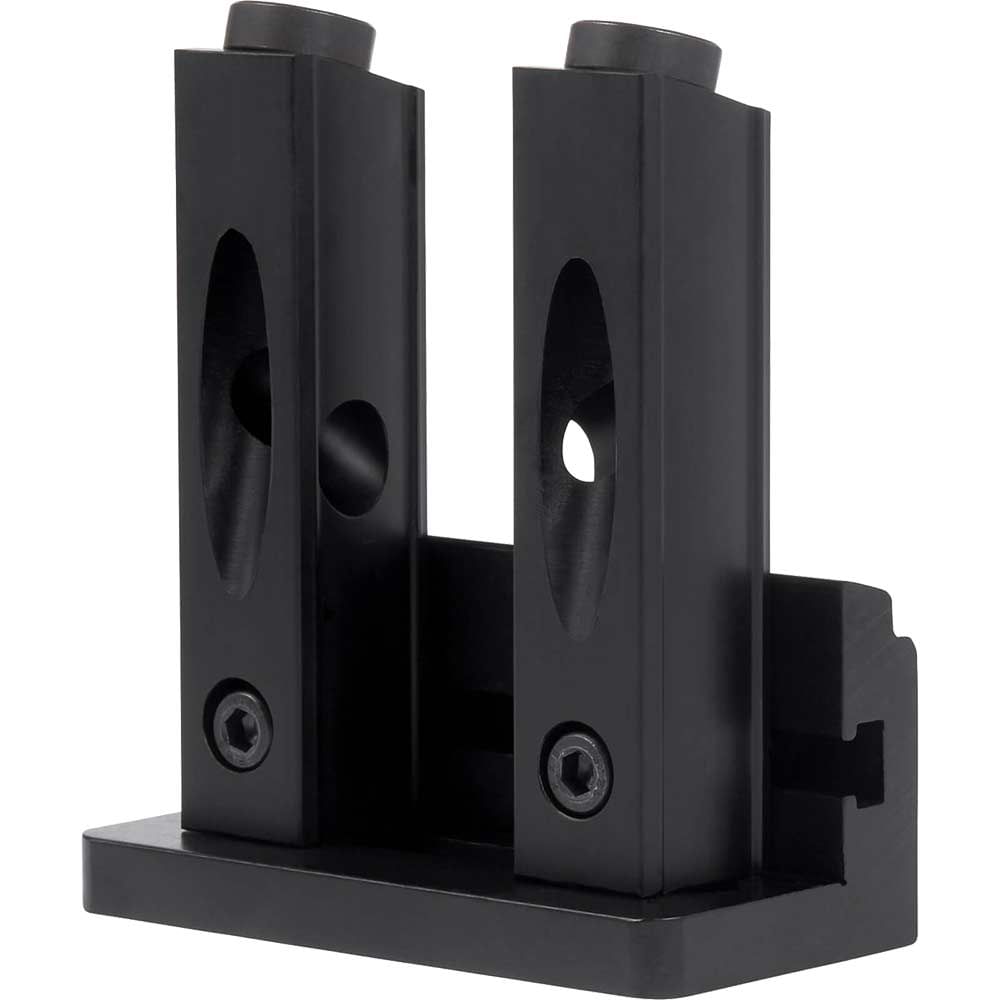

Trend Pocket Hole Jig Mini

The Trend Pocket Hole Jig Mini is a compact, portable pocket hole jig designed for jointing and repair work on furniture, cupboards, and cabinets — including work carried out in situ.

Built entirely from metal for durability and consistent performance, this jig is supplied ready to use straight from the box. It includes everything needed to get started, from the HSS drill bit and square drive bit through to a supply of pocket hole screws.

The jig is fully adjustable from 18mm to 54mm centres for twin-hole configurations, or can be stripped back for single pocket joints — making it particularly well suited to repairs and work on thinner components. Sight arrows assist with accurate pitch setting.

Two bases are included to extend the jig's versatility: the long base is used along the edge of a component, while the short base is designed for jointing into corners during refurbishment work. Compatible with timber, MDF, plywood, and blockboard, the jig uses square drive self-tapping screws and allows workpieces to be handled immediately after gluing and screwing.

Features and Benefits:
• Compact design suited to in-situ repair work on furniture and cabinets
• Fully adjustable from 18mm to 54mm centres with sight arrows for accurate pitch setting
• Two bases included — long base for edge work, short base for corner jointing
• Compatible with timber, MDF, plywood, and blockboard
• All-metal construction for durability and consistent performance
• Workpiece can be handled immediately after gluing and screwing
• Supplied ready to use with drill bit, driver bit, and screws included

Contents:
50 x Dome head pocket hole screws (No.7 x 30mm / 1-1/4 inch fine)
1 x Long base
1 x Short base
1 x HSS drill bit with collar
1 x 150mm Square drive bit
1 x Hex key 4mm A/F
1 x Hex key 2.5mm A/F

Specifications:
Adjustable centres: 18mm to 54mm
Screw size: No.7 x 30mm (1-1/4 inch)
Driver bit length: 150mm
Hex key sizes: 4mm A/F, 2.5mm A/F
