Trend Professional Router Table Aluminium Mitre Fence

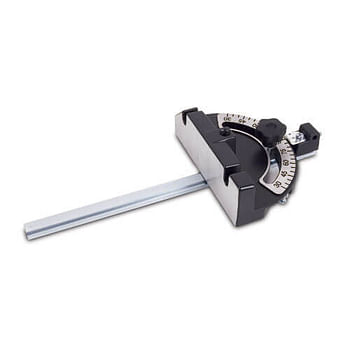

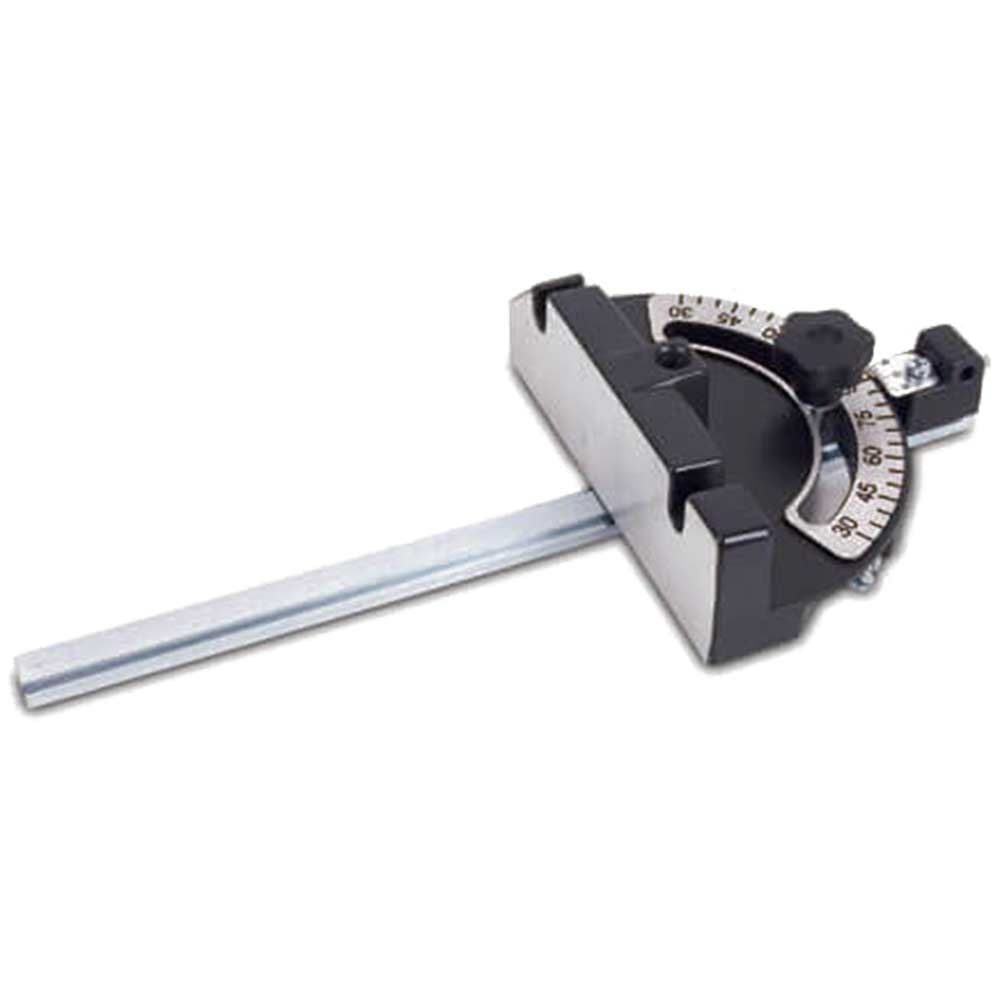

The Trend Professional Router Table Aluminium Mitre Fence is a heavy-duty precision fence designed for use with user-made router tables, saw benches, and band saws.

Built for accurate angled cutting, it features adjustable stops at -45°, 90°, and +45°, making it well suited to a wide range of joinery and woodworking tasks. The scale pitch of 5° allows for straightforward angle setting across the full range of movement.

The spring-loaded locator provides reliable, repeatable positioning at 90°, with a 1° adjustable location centring scale for fine-tuning accuracy. This makes it particularly useful for tradespeople and skilled woodworkers who need consistent results when crosscutting or mitre cutting.

With a protractor body measuring 142mm x 48mm high and a metal bar of 300mm x 17mm, this mitre fence offers a practical combination of compact form and solid construction.

Features and Benefits:
• Heavy-duty aluminium construction for durability and long-term use
• Adjustable stops at -45°, 90°, and +45° for versatile angle setting
• Scale pitch of 5° for clear, easy-to-read angle increments
• Spring-loaded locator ensures accurate, repeatable 90° positioning
• 1° adjustable location centring scale for precise fine-tuning
• Compatible with user-made router tables, saw benches, and band saws

Specifications:
Protractor Body Width: 142mm
Protractor Body Height: 48mm
Metal Bar Length: 300mm
Metal Bar Width: 17mm
Angle Range: -45° to +45°
Scale Pitch: 5°
