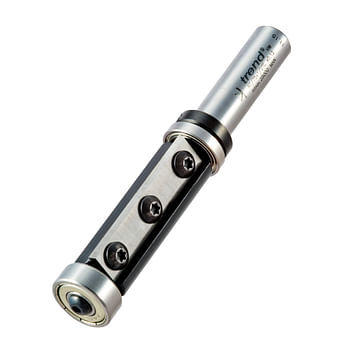

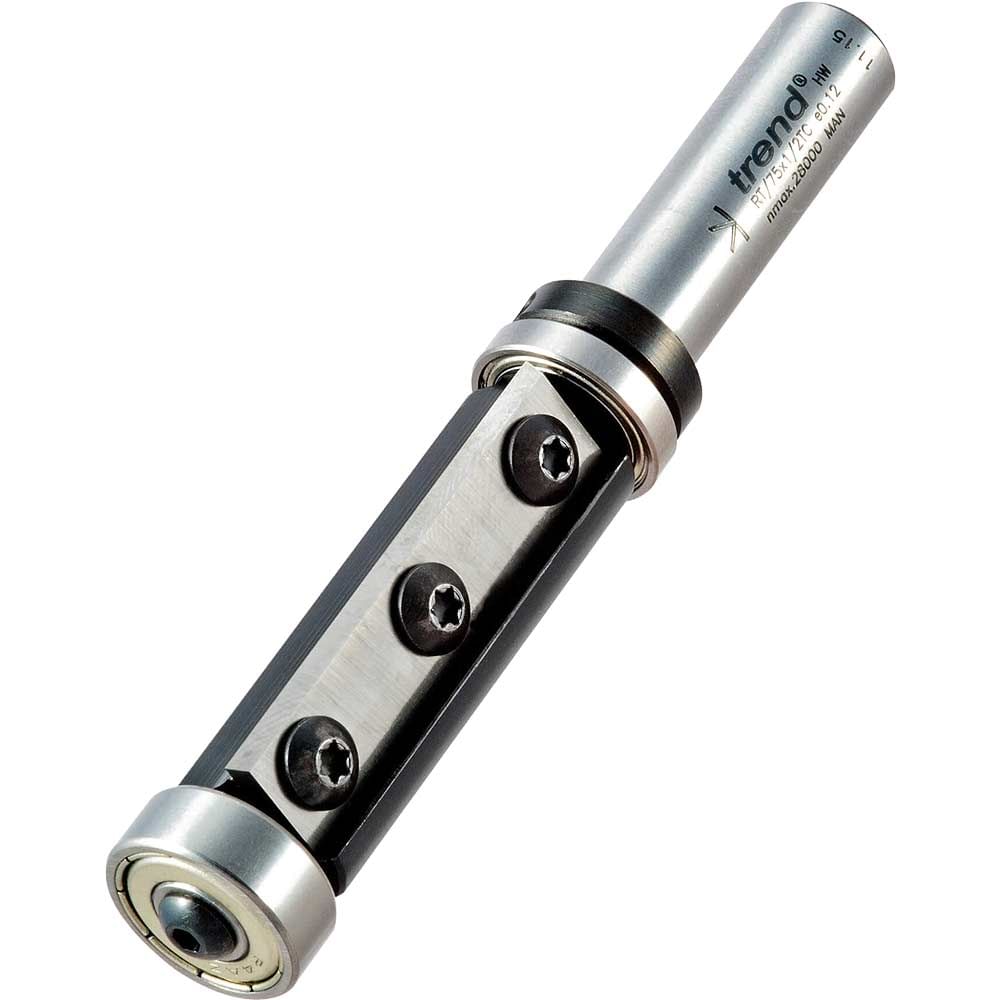

Trend Rota-Tip Two Flute Double Bearing Guided Trimmer

The Trend Rota-Tip Two Flute Double Bearing Guided Trimmer is a specialist trimming cutter bit designed for precise template routing in timber and sheet materials. Fitted with ball bearings at both the nose and shank, it allows templates to be positioned either above or below the workpiece, giving the router operator greater flexibility depending on the job.

This dual-bearing configuration is particularly useful when working with irregularly grained timber, where turning the component over to rout from the opposite direction helps achieve a cleaner finish and reduces the risk of grain tearout. The two-flute design contributes to a smooth, accurate cut on each pass.

A key feature of the Rota-Tip design is the ability to rotate each blade 180 degrees when the cutting edge becomes worn, effectively doubling the usable life of the tool compared to a conventional fixed-blade trimmer. This makes it a cost-efficient choice for joiners, shopfitters, and other tradespeople carrying out regular template routing work.

Features and Benefits:
• Dual ball bearings at nose and shank for top or bottom template routing
• Compatible with irregular grain timber by routing from either face
• Two-flute design for a clean, accurate cut
• Reversible blades rotate 180 degrees to double tool life
• 1/2" shank for secure fitment in compatible routers

Specifications:
Shank Diameter: 1/2"
Dia Metric: 19mm
Cut Length Metric: 50mm
Overall Length Metric: 113mm
Bearing Dia Metric: 19.05mm
Type or Grade: Two flute
