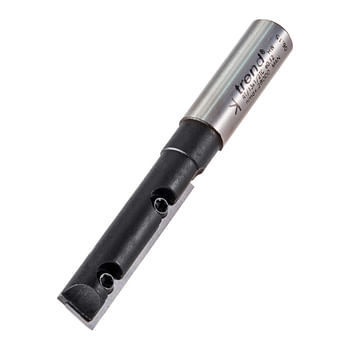

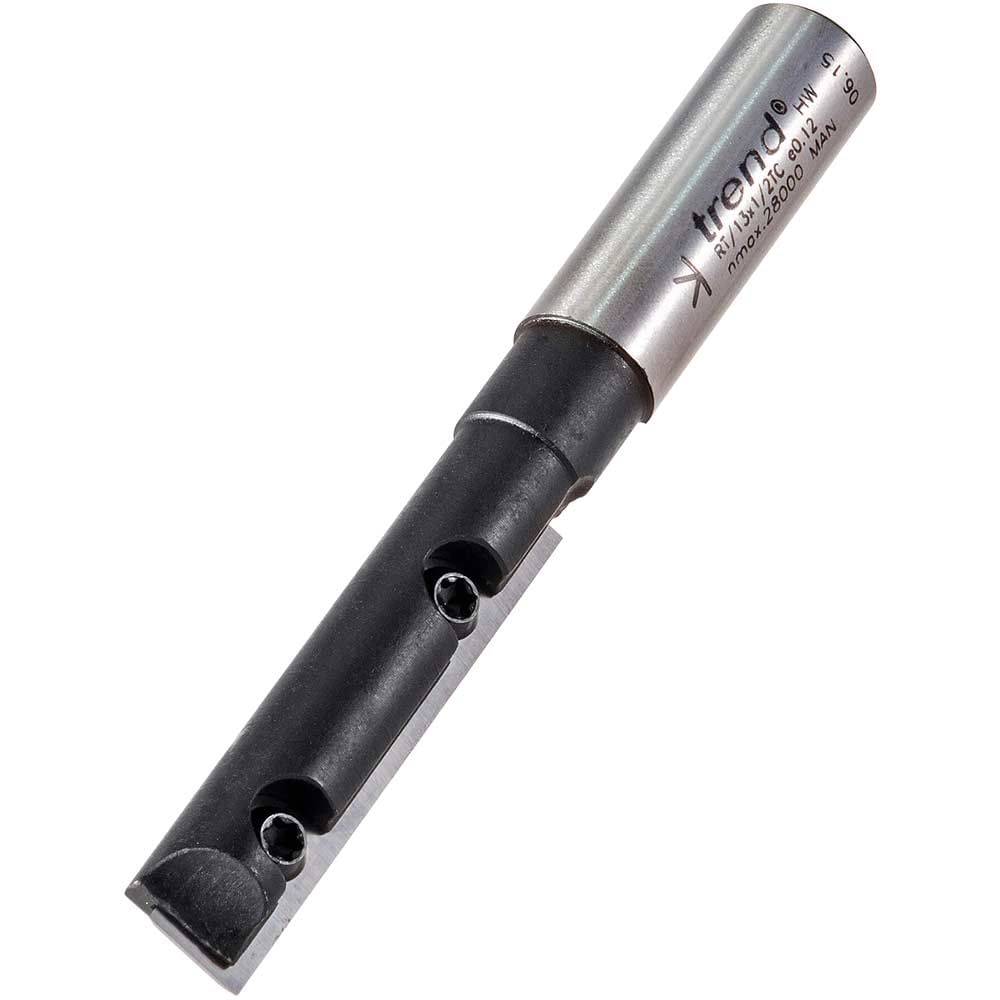

Trend Rota-Tip Worktop Jig Router Cutter

The Trend Rota-Tip Worktop Jig Router Cutter is a solid carbide replaceable-blade router cutter designed specifically for use with worktop jigs in kitchen fitting applications. Built for production environments, it is ideally suited for use with Trend Combi worktop jigs and is suitable for plunge cutting. For use on chipboard only.

The standout feature of this cutter is the Rota-Tip blade system, which allows the tool body to remain in place during blade changes, significantly reducing downtime on the job. Straight cutters feature blades with two or four cutting edges that can be rotated and locked into identical positions, while the single blade can also be rotated 180 degrees to double the usable life compared to a conventional tool.

This design offers a clear economical advantage over traditional brazed tip tooling, making it a cost-effective choice for kitchen fitters and joiners working in high-volume or production settings. The 1/2 inch shank ensures compatibility with a wide range of professional routers suited to demanding applications.

Features and Benefits:
• Solid carbide replaceable blades for consistent cutting performance
• Tool body stays in place during blade changes, minimising downtime
• Blade rotates 180° to double the effective tool life
• Two or four cutting edges per blade for versatile use
• Economical alternative to conventional brazed tip tooling
• Ideally suited for use with Trend Combi worktop jigs
• Suitable for plunge cutting

Specifications:
Shank Diameter: 1/2"
Cutting Diameter (Metric): 12.7mm
Cutting Diameter (Imperial): 1/2"
Cut Length: 49.5mm
Overall Length: 100mm
Type: For worktop jigs
