Trend Router Surfacing Jig

The Trend Router Surfacing Jig is a compact, adaptable woodworking jig designed for flattening, surfacing, and trenching work on wide or irregularly shaped material.

Built around twin 12mm stainless steel rails, the jig provides a stable, rigid platform capable of supporting routers up to 7kg without distortion. The running rails and router cradle are constructed from High Pressure Laminate (HPL) for wear-free performance and long-term accuracy. This makes it a reliable choice for repetitive surfacing tasks where consistency matters.

The jig accommodates stock up to 400mm wide and can be used for both cross-grain and along-the-grain cutting, as well as end grain routing for a clean finish. Depth of cut is managed through the router's own plunge mechanism, giving the operator precise control for fine skimming passes or deeper levelling cuts. The cradle can also be locked to the bars for single-axis movement, making it well suited to trenching work.

Setup is straightforward — a 30mm guide bush connection means there's no fixed sub base required, allowing fast attachment and removal across a range of router brands and sizes. The modular design supports the addition of extra running rails for longer sled configurations, while the slim profile keeps storage simple when the jig is not in use.

Features and Benefits:
• Surfaces and flattens material up to 400mm wide
• Twin 12mm stainless steel rails support routers up to 7kg without distortion
• HPL running rails and cradle for accurate, wear-free performance
• Bi-directional cutting — suitable for use across or along the grain
• Cradle locks to bars for single-axis trenching cuts
• 30mm guide bush connection compatible with multiple router brands and sizes
• No fixed sub base required for fast setup and removal
• Extendable with additional running rails for longer sled configurations
• Slim modular design for compact storage

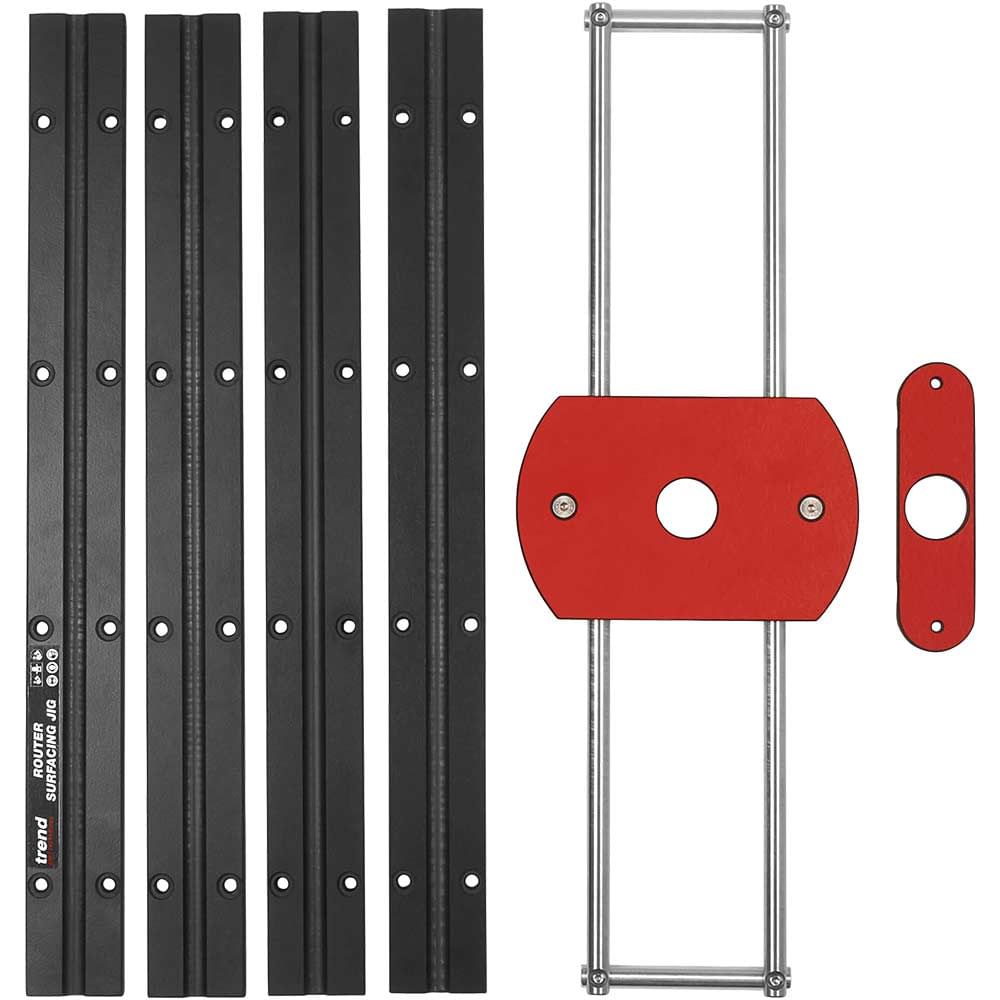

Contents:
4 x Rails
2 x Steel bars
1 x Router base plate
16 x Fixing screws

Specifications:
Maximum material width: 400mm
Rail diameter: 12mm
Maximum router weight: 7kg
Guide bush connection: 30mm
