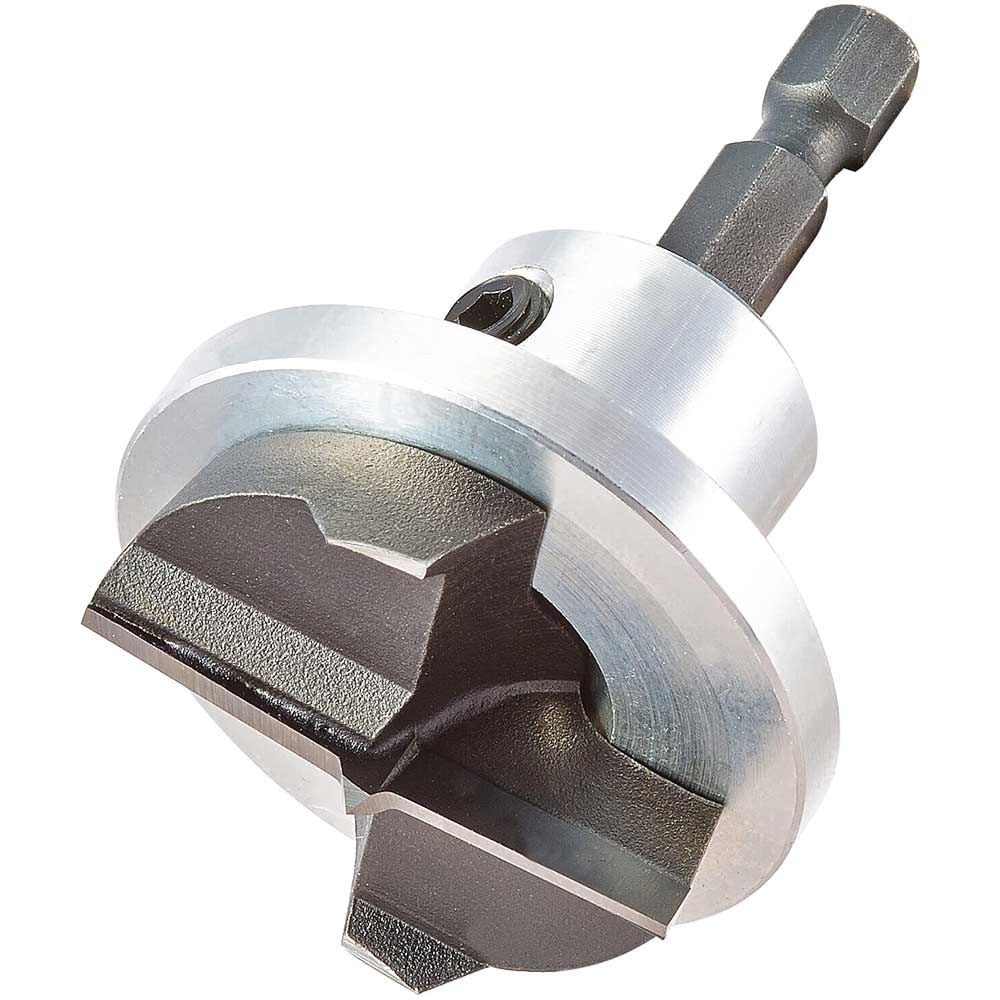

Trend Snappy 35mm TCT Hinge Cutter With Depth Stop

The Trend Snappy 35mm TCT Hinge Cutter with Depth Stop is a specialist drill bit designed for cutting accurate 35mm diameter holes for concealed circular hinges in kitchen and cabinet doors.

The adjustable depth stop collar is a standout feature for professional cabinet installers and joiners, allowing precise depth settings between 9mm and 13mm. The access viewing hole makes setting fast and accurate, ensuring consistent results across repeated cuts.

TCT (Tungsten Carbide Tipped) construction delivers long-lasting performance in abrasive sheet materials. Cutting spurs scribe cleanly around the outer edge of each hole, preventing breakout and leaving a professional finish on MDF and laminated chipboard.

The 1/4" hex shank is compatible with the Trend Snappy Quick Chuck system, making tool changes fast and straightforward. The cutter is ideally suited for use in a pillar drill for maximum control and repeatability. Note: this cutter is not suitable for use on natural timber.

Features and Benefits:
• Cuts precise 35mm diameter hinge holes for concealed hinges
• Adjustable depth stop collar — sets from 9mm to 13mm deep
• Access viewing hole for fast, accurate depth setting
• TCT construction for durability in MDF and laminated chipboard
• Cutting spurs produce clean, chip-free holes
• 1/4" hex shank compatible with Trend Snappy Quick Chuck system
• Includes 1/8" A/F hex key for collar adjustment

Specifications:
Shank Diameter: 1/4" hex
Diameter (Metric): 35mm
Diameter (Imperial): 1 3/8"
Overall Length: 60mm
Depth Stop Range: 9mm–13mm

Contents:
1 x Hex key 1/8 inch A/F
