Trend TEMP/CDH/A Cabinet Door Hinge Template Jig

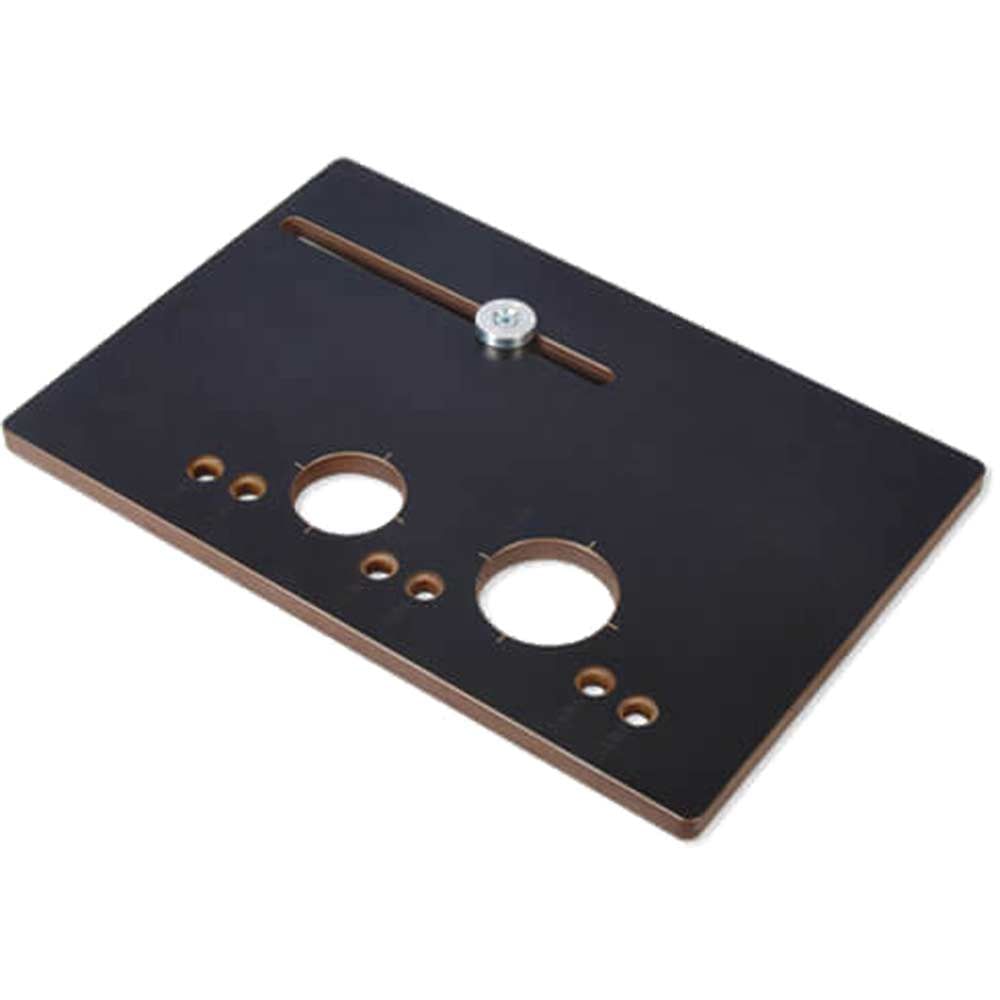

The Trend TEMP/CDH/A is a precision routing template designed for cutting accurate blind hole recesses for circular cabinet door hinges. It accommodates both 26mm and 35mm diameter hinges, making it a practical and versatile choice for kitchen fitters, cabinet makers, and joiners working with standard European-style concealed hinge systems.

The template features an adjustable alloy edge guide that allows the recess position to be set relative to the top or bottom of the door, ensuring consistent placement across multiple doors. The edge guide is also removable when routing a middle hinge recess, and engraved centre sight lines aid precise alignment throughout the process.

Constructed from hard-wearing 12mm thick high pressure laminate, this jig is built to withstand repeated use on site or in the workshop. Pin holes are reversible, making it suitable for both left-hand and right-hand doors, while 3mm and 5mm location holes ensure accurate positioning of each recess relative to the door edge.

Features and Benefits:
• Cuts recesses for both 26mm and 35mm diameter circular hinges
• Adjustable alloy edge guide for precise positioning from top or bottom of door
• Removable edge guide accommodates middle hinge recess routing
• Reversible pin holes for left-hand and right-hand door compatibility
• 3mm and 5mm location holes for accurate edge positioning
• Engraved centre sight lines for reliable alignment
• 12mm high pressure laminate construction for durability

Contents:
1 x Sliding stop
4 x ABS Plastic Pins

Specifications:
Hinge recess diameters: 26mm and 35mm
Template thickness: 12mm
Required cutter diameter: 12.7mm
Required guide bush: 30mm
Required clamps: Two 100mm throat F-clamps
