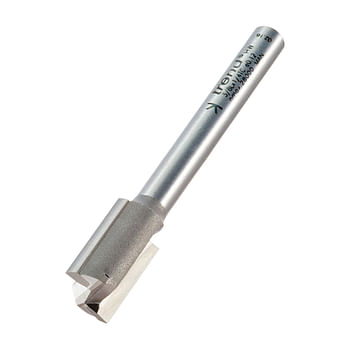

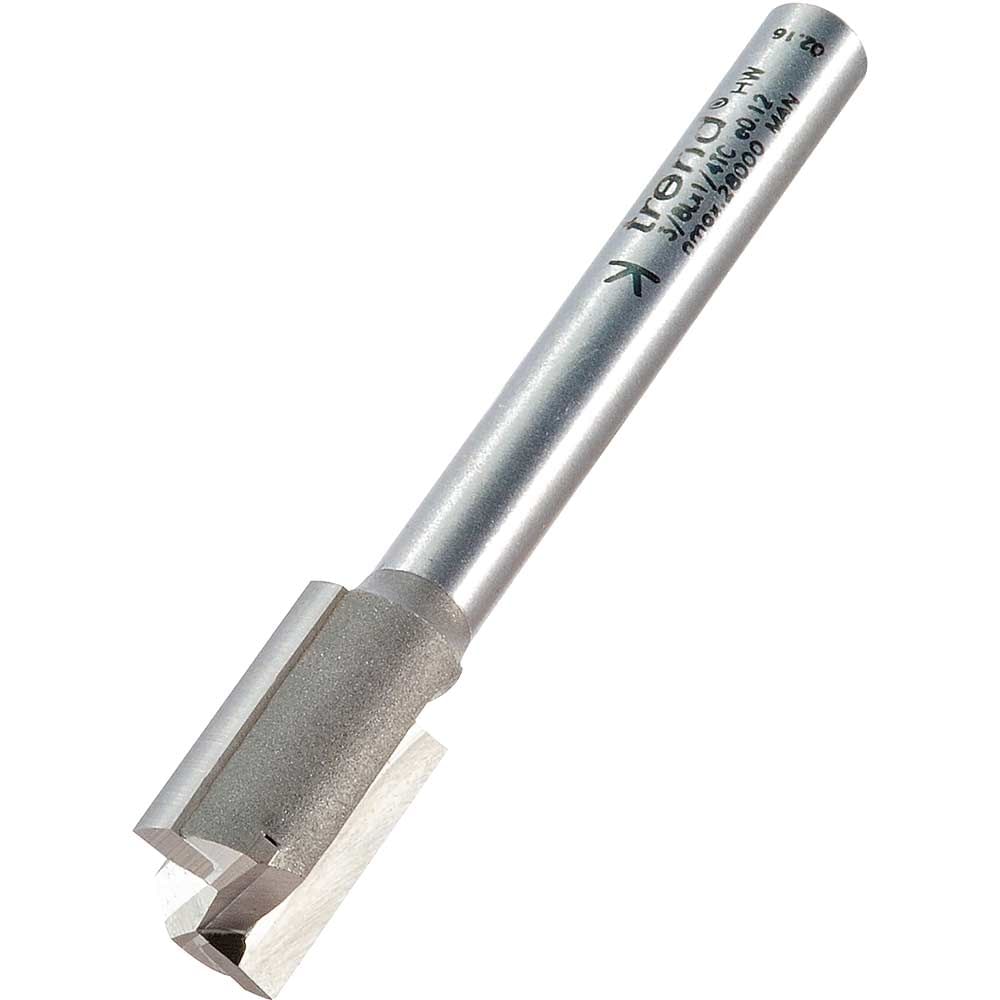

Trend Two Flute Long Reach Hinge and Lock Jig Router Cutter

The Trend Two Flute Long Reach Hinge and Lock Jig Router Cutter is a tungsten carbide tipped routing bit designed for precise, shallow lateral cuts including hinge recessing and lock plate mortising.

The two-flute configuration promotes efficient chip clearance during cutting, helping to maintain a clean, consistent finish in the recess. With a 12mm cutting diameter and a 19mm cut length, it is well suited to the controlled depth cuts required when fitting door hardware.

This cutter is specifically compatible with Trend Hinge and Lock Jigs, making it a practical choice for carpenters and joiners working on door hanging, where accuracy and repeatability are essential. As with all square-edged hinge recessing work, corners will require final trimming with a hand chisel or corner chisel to achieve a clean, sharp finish.

Features and Benefits:
• Two-flute TC construction for good chip clearance and clean cutting
• 12mm diameter suited to standard hinge recess work
• Long reach design for controlled lateral routing cuts
• Compatible with Trend Hinge and Lock Jigs for accurate, repeatable results
• 1/4" shank for use with standard routers

Specifications:
Shank Diameter: 1/4"
Cutting Diameter: 12mm (15/32")
Cut Length: 19mm
Overall Length: 70mm
