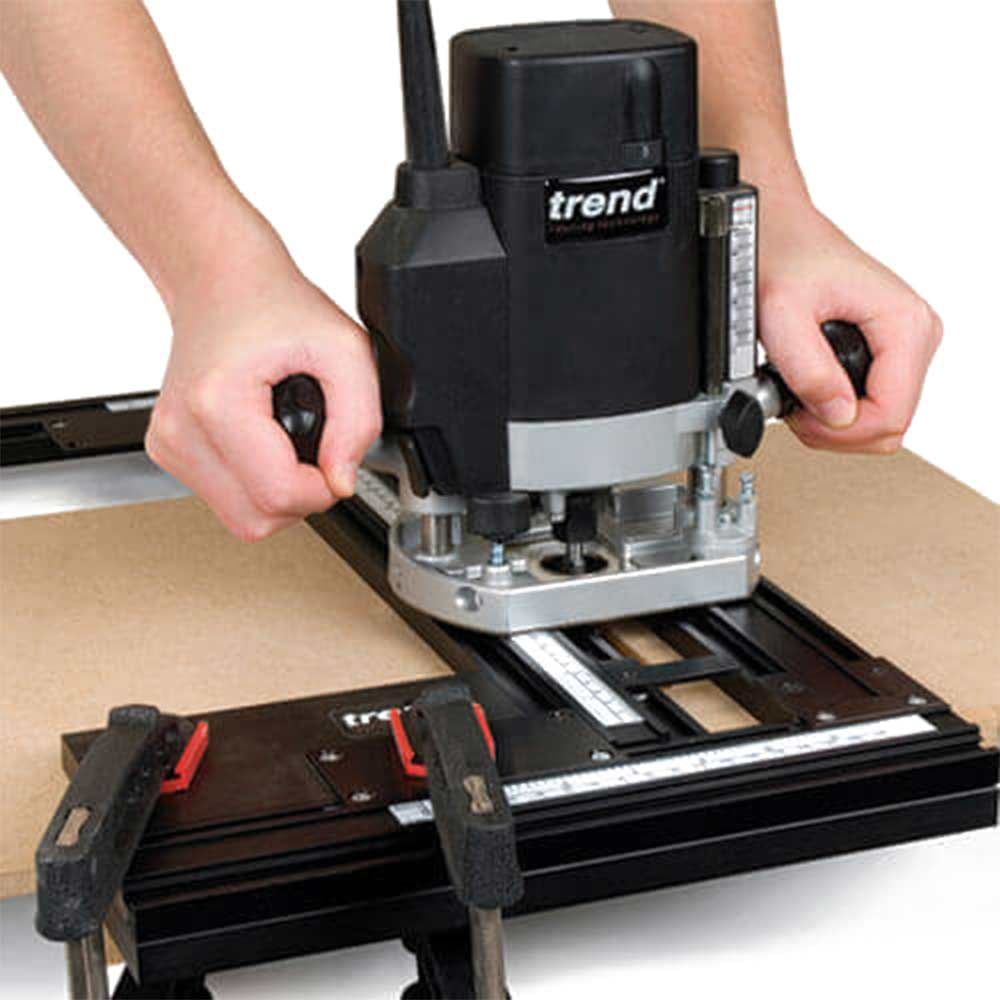

Trend Varijig Tenon and Grooving Jig
Allows grooves and tenons to be cut using a router.
Can be used to crosscut boards with a router or circular saw.
Frame is adjustable to allow narrower or wider grooves to be routed.
The max. adjustment is 70mm depending on the diameter of the router base.
The edge of the frame can be used as a guide to trim a panel square using a router.
Two sliding stops to set groove length.
Squaring butt has the facility to accept a spelch block to allow a full-length groove.
Fixing screws are included for this purpose. Working length is 400mm.
Can be used with any plunge router fitted with a guide bush of minimum 8mm projetction.
Router not included.
Contents:
4 x Alloy extrusions
4 x Corner brackets
3 x Scales
1 x Squaring butt
2 x Length stops
1 x Hex key
Specifications
