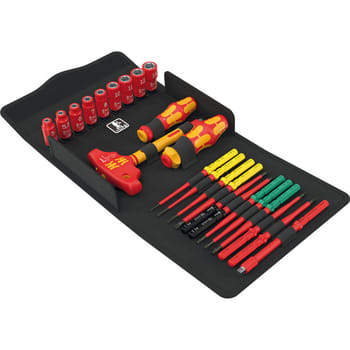

Wera Kraftform Kompakt 24 Piece VDE Insulated Allrounder Screwdriver Set

The Wera Kraftform Kompakt 24 Piece VDE Insulated Allrounder Screwdriver Set is a comprehensive electrical safety tool kit designed for professional electricians and tradespeople working on live or potentially live systems.

At the heart of the set are two Kraftform Kompakt blade-holding handles — the 837 i RA with ratchet functionality for faster screwdriving, and the 817 VDE for standard interchangeable blade use. Eleven VDE insulated blades cover the most common drive types encountered in electrical work: slotted, Phillips, Pozidriv, and TORX®. The reduced blade diameter allows access to recessed screw and spring elements that would be difficult to reach with a standard screwdriver.

The set also includes a VDE-insulated T-handle adapter with ratchet function for use with the nine included Zyklop sockets, ranging from 5 mm to 13 mm. These sockets feature a two-component insulation system — a yellow inner core beneath the outer red VDE layer — so any damage to the insulation is immediately visible before use. All tools are individually tested at 10,000 Volt in accordance with IEC 60900, providing reliable protection for live electrical work.

Blade identification is made straightforward by the Take it easy tool finder system, which uses colour coding by drive profile and laser-engraved size markings. Everything stores neatly in the included textile box, which can be docked onto the Wera 2go transport system or mounted to a workshop trolley or tool wall using the hook and loop fastener strip.

Features and Benefits:
• All tools individually tested at 10,000 Volt to IEC 60900 for verified electrical safety
• 837 i RA ratchet handle (40 teeth, 9° return angle) for rapid interchangeable blade use
• VDE-insulated T-handle with ratchet function for 1/4" sockets and bit sockets
• Nine Zyklop sockets (5–13 mm) with dual-layer insulation — visible yellow core warns of outer layer damage
• 712 i adapter blade converts 1/4" external hexagon to 9 mm external hexagon for socket and bit use
• Take it easy tool finder with colour-coded profiles and laser-engraved size markings
• Reduced blade diameter for access to low-lying screw and spring elements
• Anti-roll protection and spinning function on all 157 mm VDE blades
• Textile storage box compatible with the Wera 2go transport system and workshop mounting via hook and loop strip

Contents:
1x 837 i RA Kraftform blade-holding handle with ratchet functionality: 9 x 115 mm
1x 817 VDE Kraftform blade-holding handle: 9 x 98 mm
1x 410 i VDE A RA VDE-insulated T-handle adapter screwdriver with ratchet functionality for 1/4" sockets: 1/4" x 130 mm
2x Kraftform Kompakt VDE 60 i Take it easy: 0.4x2.5x157 mm, 1.2x6.5x157 mm
2x Kraftform Kompakt VDE 60 iS Take it easy: 0.6x3.5x157 mm, 0.8x4x157 mm
2x Kraftform Kompakt VDE 62 iS Take it easy: PH 1x157 mm, PH 2x157 mm
2x Kraftform Kompakt VDE 65 iS Take it easy: PZ 1x157 mm, PZ 2x157 mm
3x Kraftform Kompakt VDE 67 iS TORX® Take it easy: TX 15x157 mm, TX 20x157 mm, TX 25x157 mm
1x Kraftform Kompakt A VDE 712 i Adapter blade, insulated, for 1/4" sockets: 1/4" x 154 mm
9x 8790 A VDE Zyklop Socket, insulated, with 1/4" drive: 5x41 mm, 5.5x41 mm,
