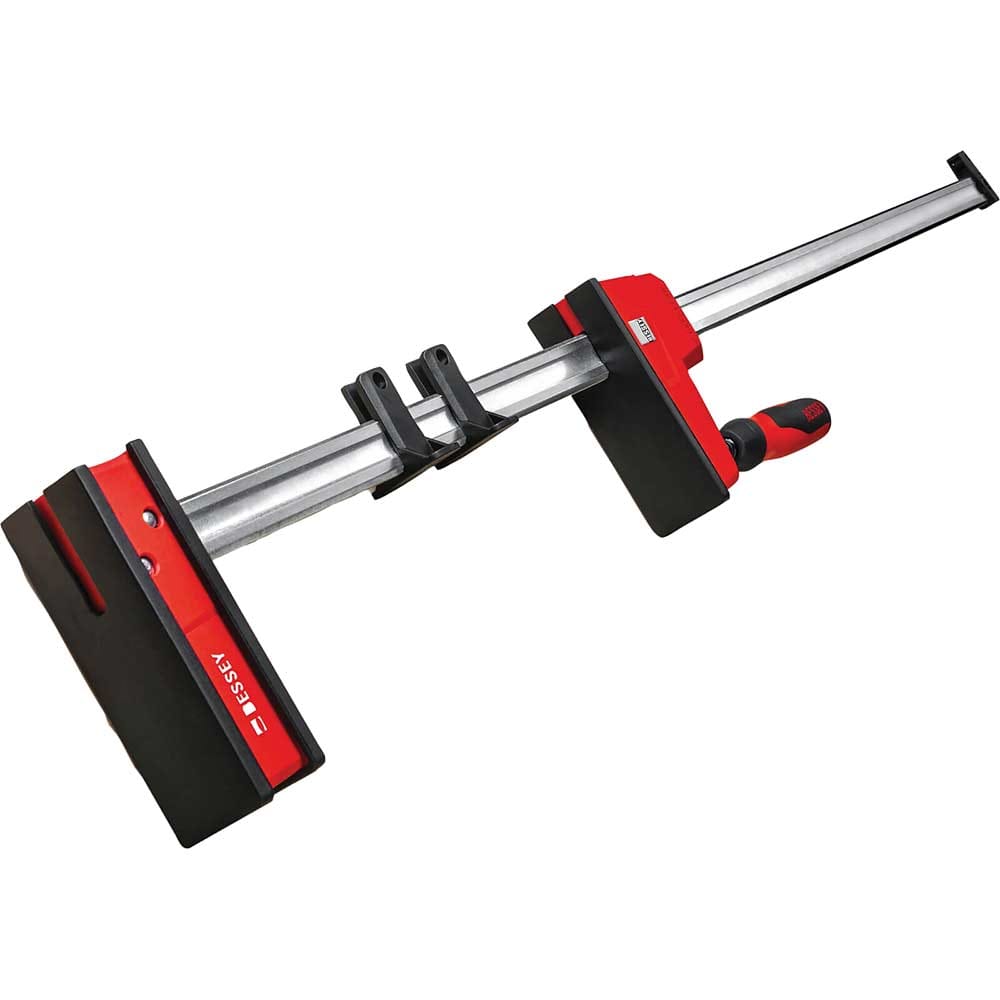

Bessey K Body REVO Clamp

The Bessey K Body REVO Clamp with 1500mm clamping capacity is designed for substantial joinery work, large furniture assembly, worktop installation, and construction projects requiring extended reach. This metre-and-a-half clamp handles sizeable workpieces with the precision and reliability that professional tradespeople demand.

With up to 8,000N of clamping force distributed through extremely large parallel jaw surfaces, this 1500mm model secures large assemblies with consistent, even pressure. The metal-reinforced plastic housing features an optimised sliding arm with double slide protection that maintains clamping force and prevents unintentional slippage. Three removable pressure caps protect delicate surfaces whilst resisting glue, paint, and grease solvents.

Convert seamlessly between clamping and spreading functions without tools, with spreading range from 255mm to 1610mm for exceptional versatility. The high-quality 2-component symmetrical plastic handle with hexagon socket ensures comfortable operation during demanding applications, whilst the robust construction delivers long-term durability on professional sites.

Features and Benefits:
• Clamping force up to 8,000N for substantial assemblies
• Very large parallel clamping surface for large workpieces
• Three pressure caps protect delicate surfaces
• Tool-free conversion to spreading function
• High-quality 2-component plastic handle for extended comfort

Specifications:
• Clamp Capacity (Length): 1500mm
• Clamping Force: up to 8,000N
• Opening: 1500mm
• Throat Depth: 95mm
• Rail: 29 x 9mm
• Spreading Min/Max: 255/1610mm
• Weight: 4.28kg
