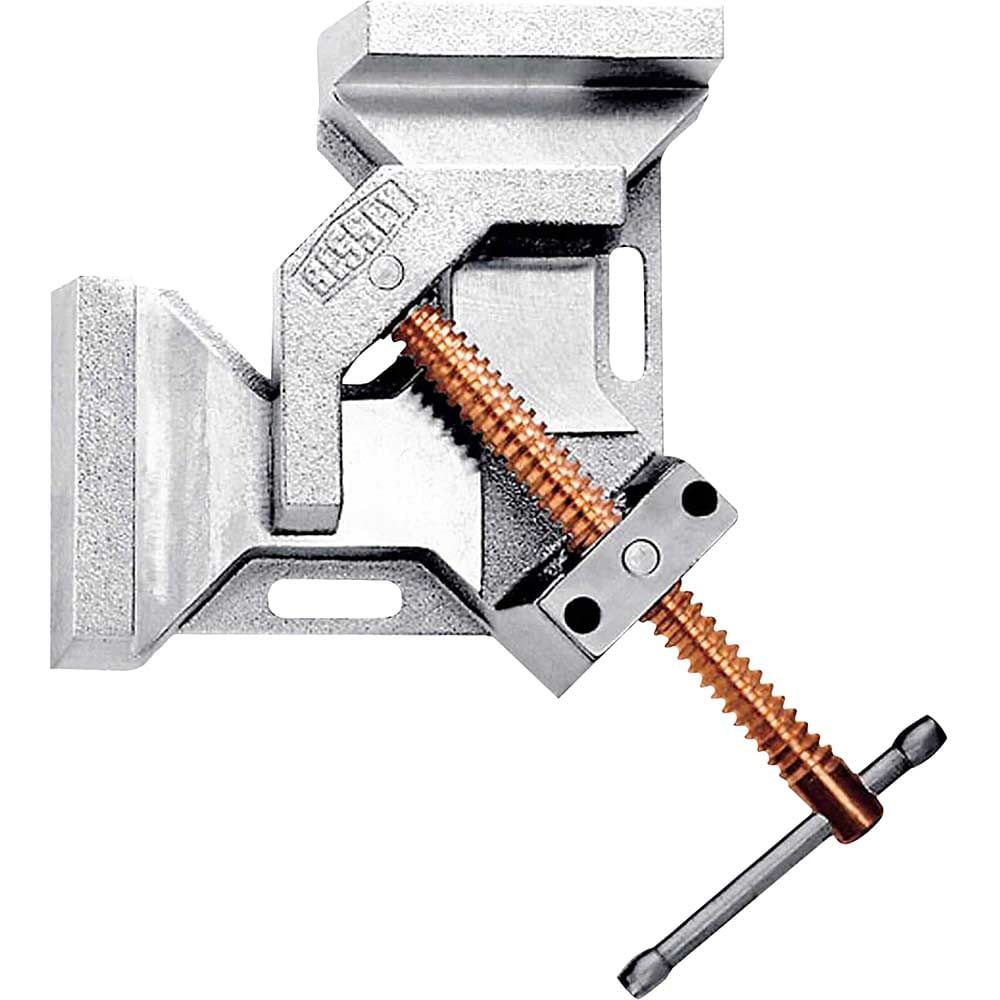

Bessey WSM12 Welders Angle Clamp

The Bessey WSM12 is a heavy-duty welders angle clamp designed specifically for steel construction, welding and metalworking applications. Offering substantially larger clamping capacity than the WSM9 model, with almost twice the jaw height, this professional-grade corner clamp excels at holding, fixing and aligning materials at precise 90-degree angles.

Built for demanding workshop environments, the WSM12 features sturdy jaws and a robust base plate manufactured from high-quality cast iron for exceptional durability and stability. The copper-plated spindle is specially designed to prevent welding splatter from adhering to the thread, ensuring smooth operation even in intensive welding applications. With a generous 120mm maximum opening and 120mm jaw length, this clamp accommodates a wide range of workpiece sizes whilst maintaining precise right-angle alignment.

The intelligent design provides a clear, unobstructed working area, allowing welders and fabricators to access the workpiece freely during welding, assembly work and when fixing T-joints. The automatic adjustment feature adapts to workpieces of varying thicknesses, streamlining setup time and improving productivity on site or in the workshop.

Features and Benefits:
• Automatic adjustment to workpieces of various thicknesses
• Sturdy jaws and base plate made from high-quality cast iron
• Copper-plated spindle prevents welding splatter from sticking
• Precise 90° angles
• Clear working area for unhindered access during welding and assembly

Specifications:
Jaw height: 61mm
Jaw length: 120mm
Max current passage: 100
Max opening: 120mm
Weight: 7.80kg
