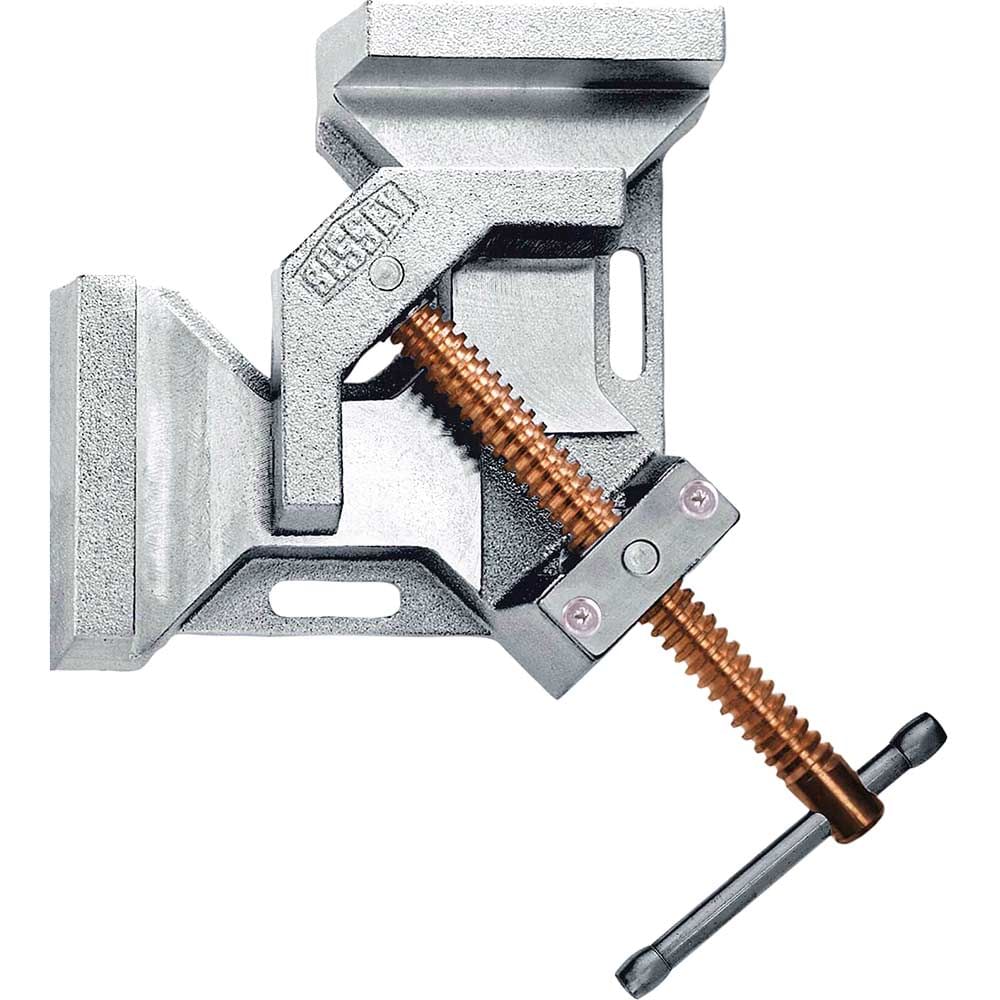

Bessey WSM9 Welders Angle Clamp

The Bessey WSM9 is a heavy-duty welders angle clamp designed specifically for steel construction, welding and metalworking applications. Engineered to hold, fix and align materials at precise 90-degree angles, this professional-grade corner clamp delivers the accuracy and durability required for demanding fabrication work.

Built with a robust cast iron construction, both the jaws and base plate provide exceptional stability during welding and assembly operations. The copper-plated spindle prevents welding splatter from adhering to the mechanism, ensuring smooth operation even in the harshest workshop environments. With a 90mm maximum opening and 35mm jaw height, the clamp accommodates workpieces of varying thicknesses through its automatic adjustment feature.

The clear working area is a key advantage for welders, allowing unobstructed access to the workpiece during welding and when fixing T-joints. The 110mm jaw length provides ample support for most fabrication tasks, while the substantial 3.8kg weight ensures the clamp remains firmly positioned during operation. With a maximum current passage of 60 amps, the WSM9 is suitable for most welding applications in steel fabrication workshops.

Features and Benefits:
• Automatic adjustment to workpieces of various thicknesses
• Sturdy jaws and base plate made from high-quality cast iron
• Copper plated spindle prevents welding splatter from sticking
• Fixes workpieces at precise 90° angles
• Clear working area for unhindered access during welding and assembly

Specifications:
Jaw height: 35mm
Jaw length: 110mm
Max current passage: 60
Max opening: 90mm
Weight: 3.8kg
EAN Code: 4008158016832
HS (Harmonised) Code: 82057000
