Bosch 18 Piece PointTeq HSS Drill Bit Set

The Bosch 18 Piece PointTeQ HSS Drill Bit Set is a professional-grade twist drill bit set designed for fast, accurate drilling in metal and a wide range of other materials.

The set's defining feature is the PointTeQ tip design, which self-centres on contact to prevent the bit from wandering at the start of a hole. This precision entry point also increases the drilling rate, reducing heat build-up and wear during use — helping the bits stay sharper for longer and extending overall working life.

Each bit is manufactured to DIN 338 standard with a Type N flute angle and 135-degree tip, making them suitable for drilling clearance and pilot holes in alloyed and non-alloyed steel, non-ferrous metals, cast steel, cast iron, and plastics. The black-oxide coated flute promotes fast chip removal, keeping the cutting action clean and efficient.

The cylindrical shank design is compatible with standard three-jaw drill chucks and is intended for use in drill stands and drill drivers. For smaller diameters below 6mm, the highly elastic body construction significantly reduces the risk of breakage — a practical advantage when working with precision pilot holes. The 18 bits are supplied in a ToughBox case, covering diameters from 1mm to 10mm for versatile day-to-day use on site or in the workshop.

Features and Benefits:
• PointTeQ self-centring tip prevents wandering for accurate hole starts
• Increased drilling rate reduces heat and wear, extending bit life
• Suitable for steel, non-ferrous metals, cast iron, cast steel, and plastics
• Cylindrical shank compatible with standard three-jaw drill chucks
• Highly elastic body reduces breakage risk, especially on bits below 6mm
• Black-oxide coated flute for fast, efficient chip removal
• Manufactured to DIN 338, Type N, 135-degree tip
• 18-piece set supplied in a ToughBox storage case

Specifications:
Net Weight: 0.411kg
Included Diameters (mm): 1, 1.5, 2, 2, 2.5, 3, 3, 3.5, 4, 4, 4.5, 5, 5.5, 6, 7, 8, 9, 10
Total Lengths (mm): 34, 40, 49, 49, 57, 61, 61, 70, 75, 75, 80, 86, 93, 93, 109, 117, 125, 133
Working Lengths (mm): 12, 18, 24, 24, 30, 33, 33, 39, 43, 43, 47, 52, 57, 57, 69, 75, 81, 87
Tip Angle: 135 degrees
Flute Type: Type N
Standard: DIN 338
Shank Type: Cylindrical

Contents:

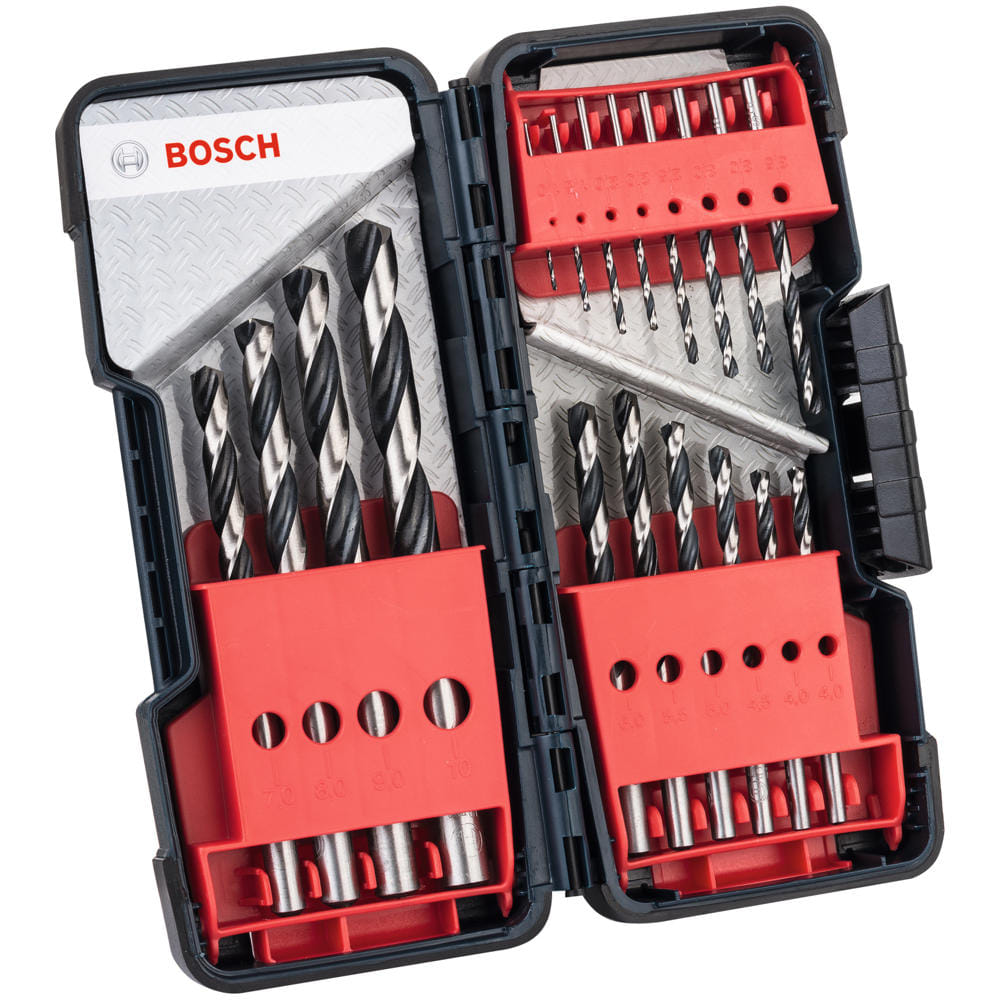

HSS Twist Drill Bit PointTeQ 18-piece ToughBox Set
Included diameters (mm): 1, 1.5, 2, 2, 2.5, 3, 3, 3.5, 4, 4, 4.5, 5, 5.5, 6, 7, 8, 9, 10
Working lengths (mm): 12, 18, 24, 24, 30, 33, 33, 39, 43, 43, 47, 52, 57, 57, 69, 75, 81, 87
