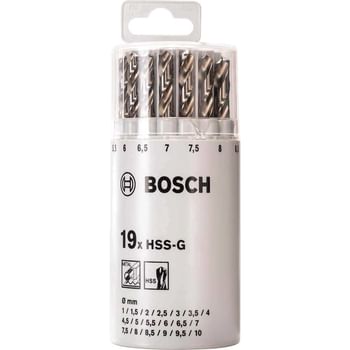

Bosch 19 Piece HSS-G Drill Bit Set

The Bosch 19 Piece HSS-G Drill Bit Set is a metal drill bit set designed for accurate drilling in steel, cast iron and non-ferrous metals. Each precision-ground HSS (high-speed steel) bit has an exposed 135-degree self-centring split-point tip. This combines active cutting with accurate centring, so the bit doesn't wander at the start of the hole.

The split-point tip removes the need to pre-punch or pilot drill up to 10 mm. Bosch states the ground HSS construction gives up to 40% faster drilling and up to 50% lower feed pressure than standard-ground HSS bits with chisel edges.

This set suits holes in alloyed and non-alloyed steel, cast steel, cast iron, sintered iron, malleable cast iron, non-ferrous metals and hard plastics. The cylindrical shank matches the bit diameter, so the bits fit three-jaw drill chucks, drill drivers and drill stands. The bits are manufactured to DIN 338, Type N (flute angle), with a diameter tolerance of h8.

Features and Benefits:
• 135-degree self-centring split-point tip for accurate starts without wandering
• No pre-punching or pilot drilling needed up to 10 mm diameter
• Precision-ground HSS for fast drilling in metal
• Cylindrical shank for three-jaw drill chucks
• Manufactured to DIN 338, Type N, with h8 diameter tolerance
• 19 sizes from 1 mm to 10 mm in a plastic tube

Specifications:
Net Weight: 0.445 kg
Diameter, mm: 1.0/1.5/2.0/2.5/3.0/3.5/4.0/4.5/5.0/5.5/6.0/6.5/7.0/7.5/8.0/8.5/9.0/9.5/10.0
Total length, mm: 34.0/40.0/49.0/57.0/61.0/70.0/75.0/80.0/86.0/93.0/93.0/101.0/109.0/109.0/117.0/117.0/125.0/125.0/133.0
Working length, mm: 12.0/18.0/24.0/30.0/33.0/39.0/43.0/47.0/52.0/57.0/57.0/63.0/69.0/69.0/75.0/75.0/81.0/81.0/87.0
Tip Angle: 135°
Standard: DIN 338
Diameter Tolerance: h8

Contents:
19-piece metal drill bit set HSS-G, DIN 338, 135° in plastic tube
Included diameters (mm): 1; 1.5; 2; 2.5; 3; 3.5; 4; 4.5; 5; 5.5; 6; 6.5; 7; 7.5; 8; 8.5; 9; 9.5; 10
