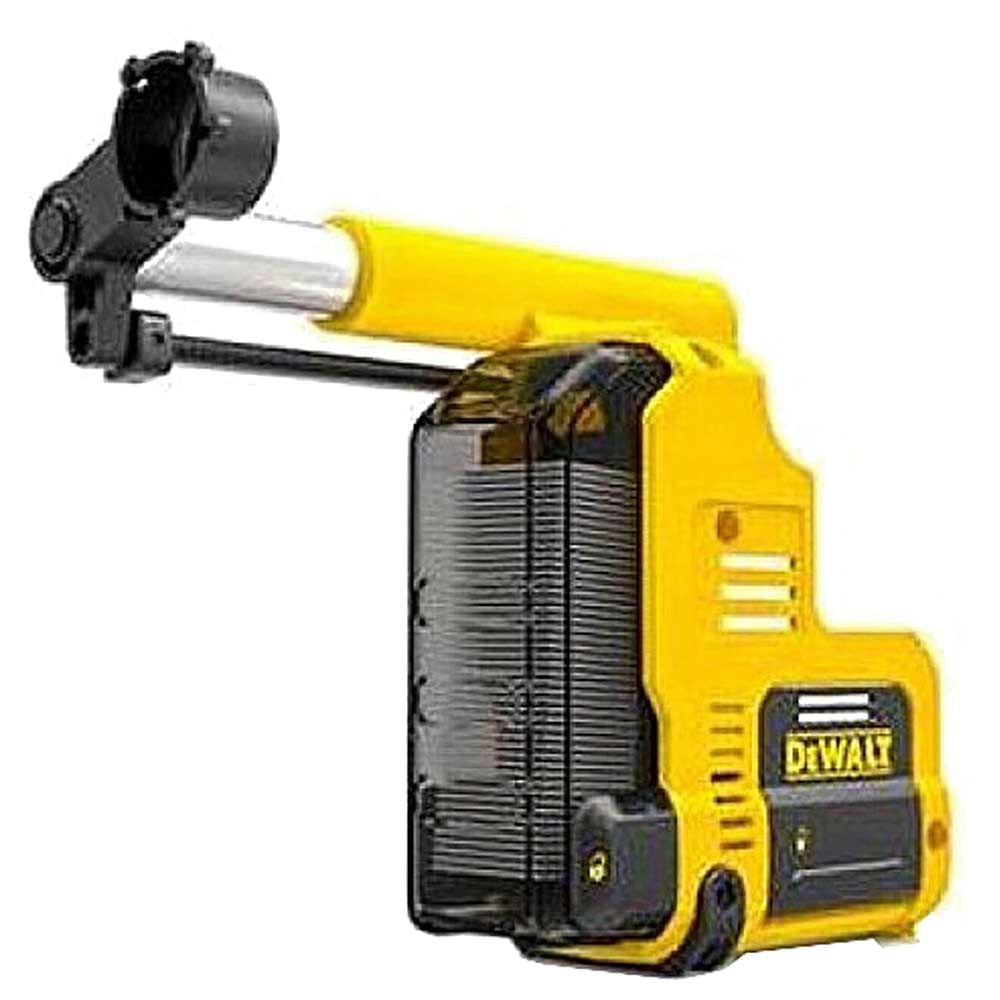

DeWalt D25303DH Integrated Dust Extraction Unit

The DeWalt D25303DH is an integrated dust extraction unit designed for use with compatible 18v DeWalt SDS hammer drills, enabling cleaner and safer drilling in wood and drywall applications. This cordlessly powered attachment captures airborne particles at source, protecting both the drill's internal components from dust ingress and maintaining a healthier working environment on site.

Fitted with a washable HEPA filter, the D25303DH achieves 99.5% efficiency with dust particles as small as 0.3 microns, making it particularly valuable for tradespeople working in occupied buildings or environments where dust control is critical. The independent motor powers the extraction system separately from the hammer drill, ensuring consistent suction performance regardless of drilling speed whilst maintaining the tool's full operational power.

The compact, lightweight design adds just 1.4kg to your drill setup and maintains excellent weight balance for comfortable handling during extended use. A quick-release mechanism allows tool-free attachment and detachment, whilst the unit continues to operate for two seconds after trigger release to ensure complete debris removal from the extraction system.

Compatibility:
Compatible with DeWalt models DCH273, DCH274, DCH253 (Type 2 Only) and DCH254 (Type 2 Only)

Features and Benefits:
• Enables dust-free working when drilling up to 16mm diameter
• Powered by an independent motor to prevent any impact on hammer drill performance
• Increases tool service life by protecting against dust ingress
• Washable HEPA filter captures 99.5% of particles as small as 0.3 microns
• Quick-release system for easy tool-free attachment and detachment
• Compact design and low weight offer excellent comfort and near-perfect balance
• Maximum extraction maintained regardless of hammer speed
• Extractor continues operating for two seconds after trigger release to clear all debris

Specifications:
Max. Drill Bit Diameter: 16mm
Max. Drill Bit Length: 160mm
Max. Drilling Depth: 125mm
Weight: 1.4kg
