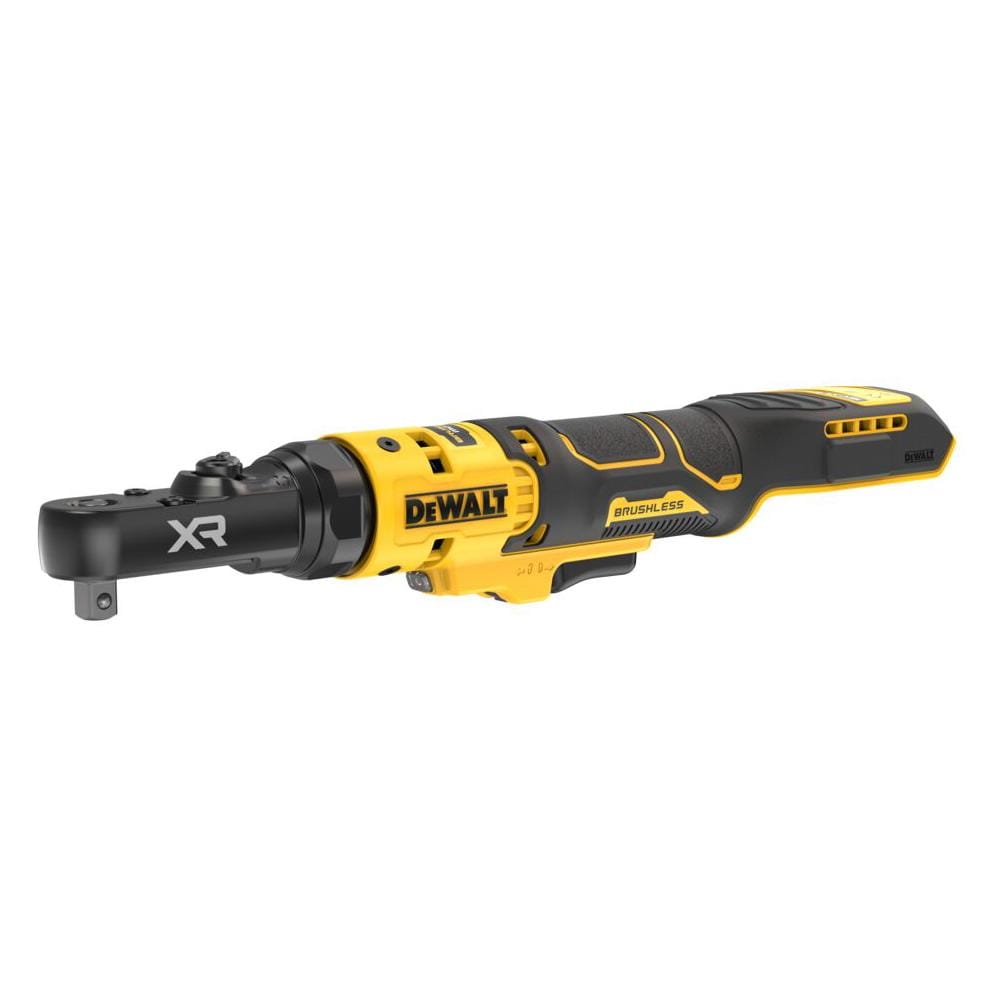

DeWalt DCF520 18v XR Brushless Cordless Combination Drive Ratchet Wrench
The DeWalt DCF520 18V XR Brushless Cordless Combination Drive Ratchet Wrench is a professional-grade cordless ratchet designed for automotive, mechanical, industrial, and maintenance applications.
At the heart of this tool is an interchangeable anvil system that allows quick switching between 1/4" square drive, 3/8" square drive, and 1/4" quick change hex configurations. This multi-drive versatility makes the DCF520 a genuinely flexible platform for working with sockets, hex accessories, and fastening bits without needing separate tools.
Powered by an 18V XR brushless motor, the DCF520 delivers up to 67Nm of maximum torque and a no-load speed of up to 450 RPM. The compact sealed head design improves access in confined spaces while protecting internal components from workshop contaminants.
The oil-resistant glass-filled nylon housing is built to withstand exposure to automotive oils, chemicals, and solvents — making it well suited to workshop environments. An integrated LED illuminates dark work areas, and trigger lock-off technology helps prevent accidental activation during use.
Features and Benefits:
• 18V XR Brushless Motor — Enhanced efficiency, extended runtime, and increased durability for professional use
• Interchangeable Anvil System — Quickly swap between 1/4" drive, 3/8" drive, and 1/4" quick change hex configurations
• Up to 67Nm Maximum Torque — Reliable fastening and loosening power for demanding applications
• 450 RPM No-Load Speed — High-speed performance for increased productivity on the job
• Sealed Head Design — Improved durability and protection against workshop contaminants
• Forward, Reverse & Variable Speed Trigger — Full control during fastening and removal tasks
• Oil-Resistant Glass-Filled Nylon Housing — Resists damage from automotive oils, chemicals, and solvents
• Integrated LED Worklight — Improved visibility in low-light working areas
• Trigger Lock-Off — Helps prevent accidental activation for safer operation
• Compact Lightweight Body — Easier manoeuvrability in tight or restricted spaces
Specifications:
Drive Types: 1/4" square drive, 3/8" square drive, 1/4" quick change hex
Ratchet Head Type: Sealed head
Voltage: 18V
Battery Platform: DeWalt XR
Motor Type: Brushless
Maximum Torque: 67Nm
No Load Speed: 0–450 RPM
Forward / Reverse Switch: Yes
Variable Speed Trigger: Yes
Trigger Lock: Yes
LED Worklight: Yes
Product Weight: 1.1kg
Contents:
DeWalt DCF520 18V XR Brushless Cordless Combination Drive Ratchet Wrench
1/4" anvil
3/8" anvil
1/4" quick change hex attachment
No Battery
No Charger
No Case
Battery AH Explained
The best way to describe battery amp hour is that this is effectively the size of your fuel tank, the more amp hours your battery has then the longer the battery will last between charges. More amp hours does not increase the power of a given tool.
Battery Voltage Explained
A tool with a higher voltage than another is a bit like choosing an engine in a car, the higher voltage will generally mean higher power & performance. As with cars though a bigger engine does not always translate to better performance so it is important to compare the specifications of tools at different voltages between different manufacturers.
