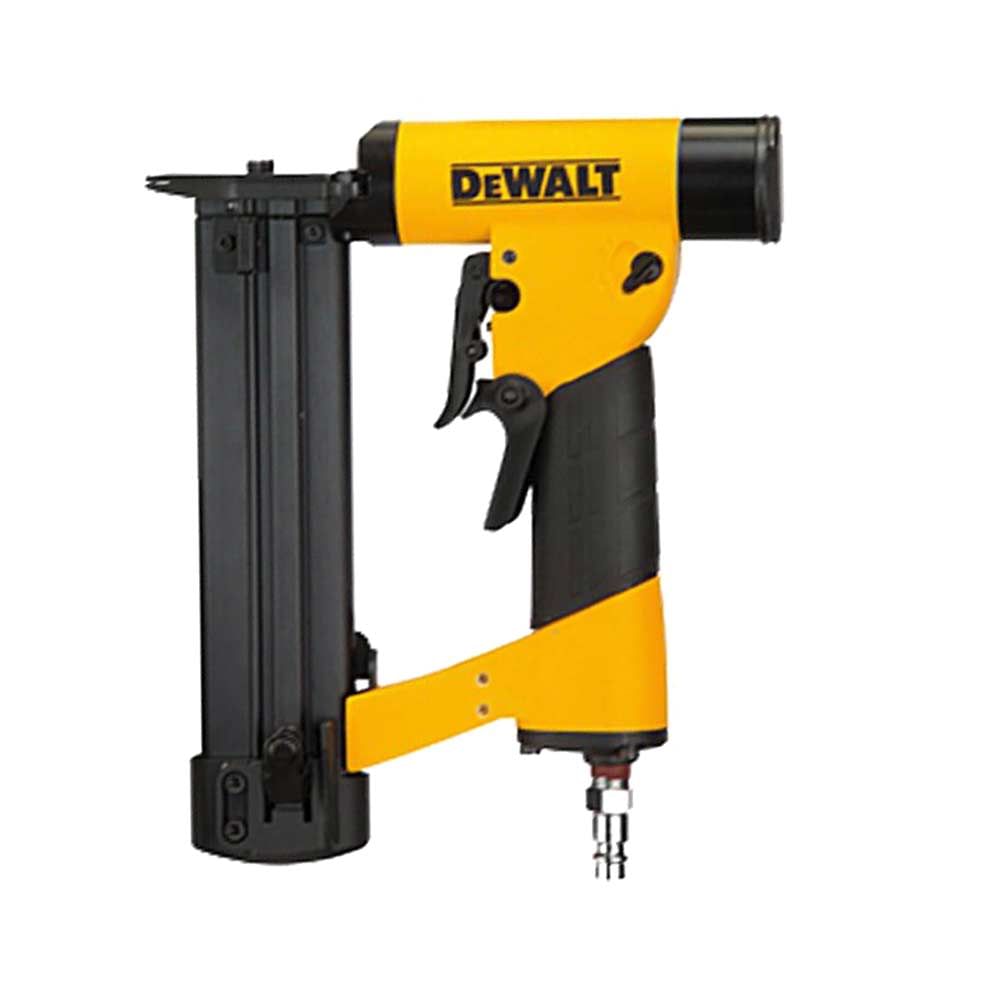

DeWalt DPN2330 23 Gauge Headless Pinner Air Nail Gun

The DeWalt DPN2330 is a 23 gauge headless pinner nail gun designed for fine detail work and precision fastening in delicate surfaces and trim applications.

Weighing under 1 kg, this pneumatic pinner is compact enough for confined areas yet robust enough for demanding construction environments. The aluminium housing delivers a high strength-to-weight ratio, reducing fatigue during extended use without compromising durability on site.

The compact nose design and power adjustment system give tradespeople precise control when working with mouldings, beading, veneers, and other fine finishing materials. The 0.6 mm headless pins leave minimal surface marks, reducing filler and finishing time. With a 200-nail magazine capacity and easy-loading mechanism, it keeps downtime to a minimum during high-volume pinning tasks.

A rubber grip ensures comfortable handling, and the sequential trigger provides consistent, controlled actuation. Operating at between 4.9 and 7 Bar, it is compatible with standard workshop and site compressors. Supplied with a carry case, making it straightforward to transport between locations.

Features and Benefits:
• Lightweight aluminium housing for strength without added bulk
• Compact nose and power adjustment system for precision work on delicate surfaces
• Headless 23 gauge pins leave virtually invisible fixings in finished surfaces
• 200-nail magazine capacity for fewer reloads during continuous use
• Rubber grip for comfortable, controlled operation
• Sequential trigger for accurate, consistent firing
• Supplied with carry case for safe storage and transport

Specifications:
Power Source: Pneumatic
Nail Length: 10 - 30 mm
Nail Head Diameter / Crown: 0.6 mm
Magazine Capacity: 200 nails
Trigger Type: Sequential
Operating Pressure: 4.9 - 7 Bar
Air Consumption Per Actuation: 0.52 l
Noise LPa 1sd / Uncertainty: 68.1 / 4 dB
Noise LWa 1sd / Uncertainty: 81.1 / 4 dB
Noise LPa 1s, 1m / Uncertainty: 78.9 / 4 dB
Vibration / Uncertainty: <2.5 m/s²
Length: 230 mm
Height: 198 mm
Width: 41 mm
Weight: 0.98 kg
