Dormer L113-204 14 Piece HSS E003 Spiral Flute Tap & A002 Drill Set

The Dormer L113-204 is a professional 14-piece drill and tap set engineered for creating precise metric threads in general-purpose applications. Designed specifically for blind hole threading, this comprehensive set combines 7 HSS-E-PM spiral flute taps with 7 matched TiN-tip coated drill bits, providing everything needed for accurate thread production in free machining steels, plain carbon steels, and wrought or cast aluminium.

The E003 spiral flute taps feature a 2-3xP plug lead with chamfer form C, delivering smooth and consistent threading whilst minimising the risk of thread damage during operation. Each tap is steam tempered to enhance strength and durability, making them suitable for demanding threading applications.

The accompanying A002 jobber length drills feature TiN-tip coating on straight shanks, specifically sized to create the correct pre-machined hole diameters for each corresponding tap size. This matched pairing ensures optimal thread formation and tool performance. Covering thread sizes from M3 to M12, the set is designed for 2.5xD blind hole threading and arrives in a robust plastic cassette for organised storage and easy transportation on site.

Features and Benefits:
• Specifically designed for blind hole threading, ensuring smooth, accurate, and reliable operation in challenging applications
• Covers thread sizes from M3 to M12, providing versatility for numerous general-purpose applications
• Chamfer form C and 2-3xP plug lead enable precise and consistent threading, reducing the risk of damage during the process
• TiN-tip coating on jobber drills reduces friction and enhances tool life, ensuring better performance in tough materials
• HSS-E-PM spiral flute taps are steam tempered, offering increased strength and long-lasting durability
• Compatible with free-machining steels, plain carbon steels, and wrought or cast aluminium for versatile material applications
• Supplied in a robust plastic cassette, ensuring all tools are securely stored and easily accessible

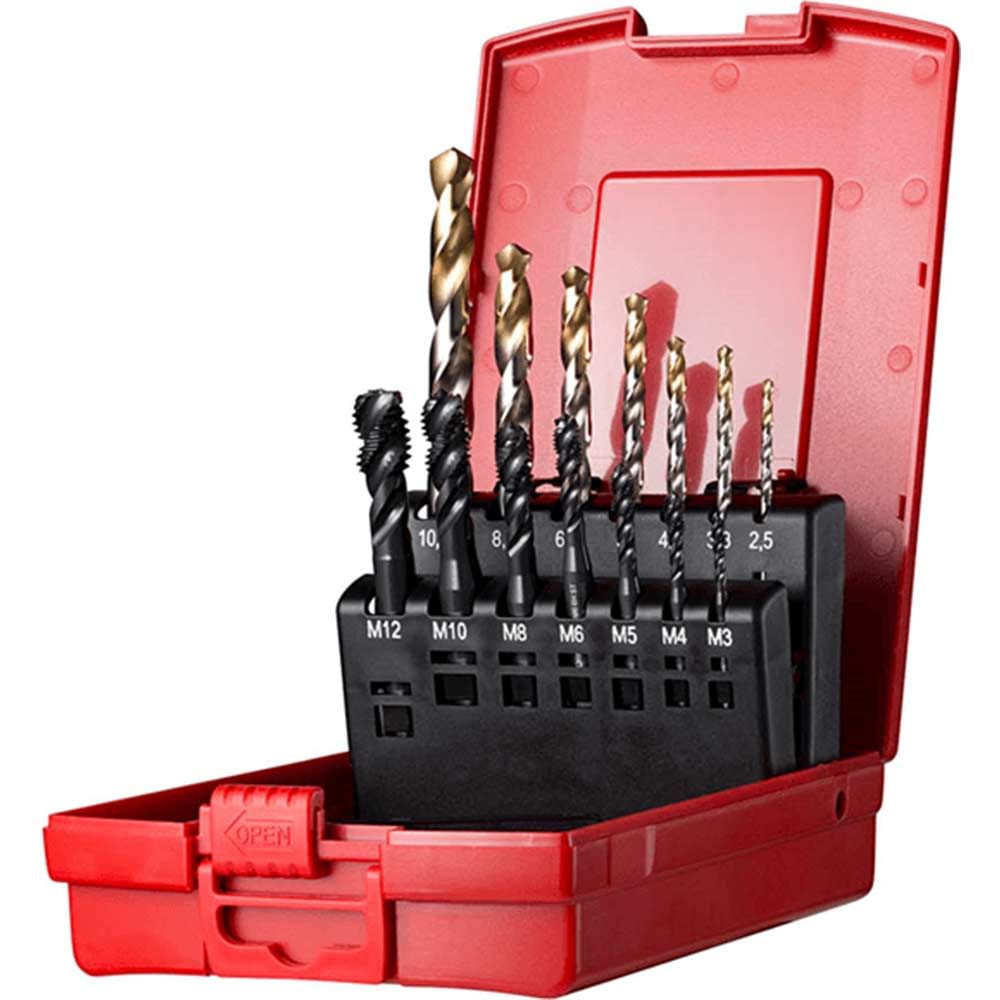

Contents:
1 x E003M3, E003M4, E003M5, E003M6, E003M8, E003M10, E003M12 – Spiral Flute Taps
1 x A0022.5, A0023.3, A0024.2, A0025.0, A0026.8, A0028.5, A00210.2 - Drill Bits
