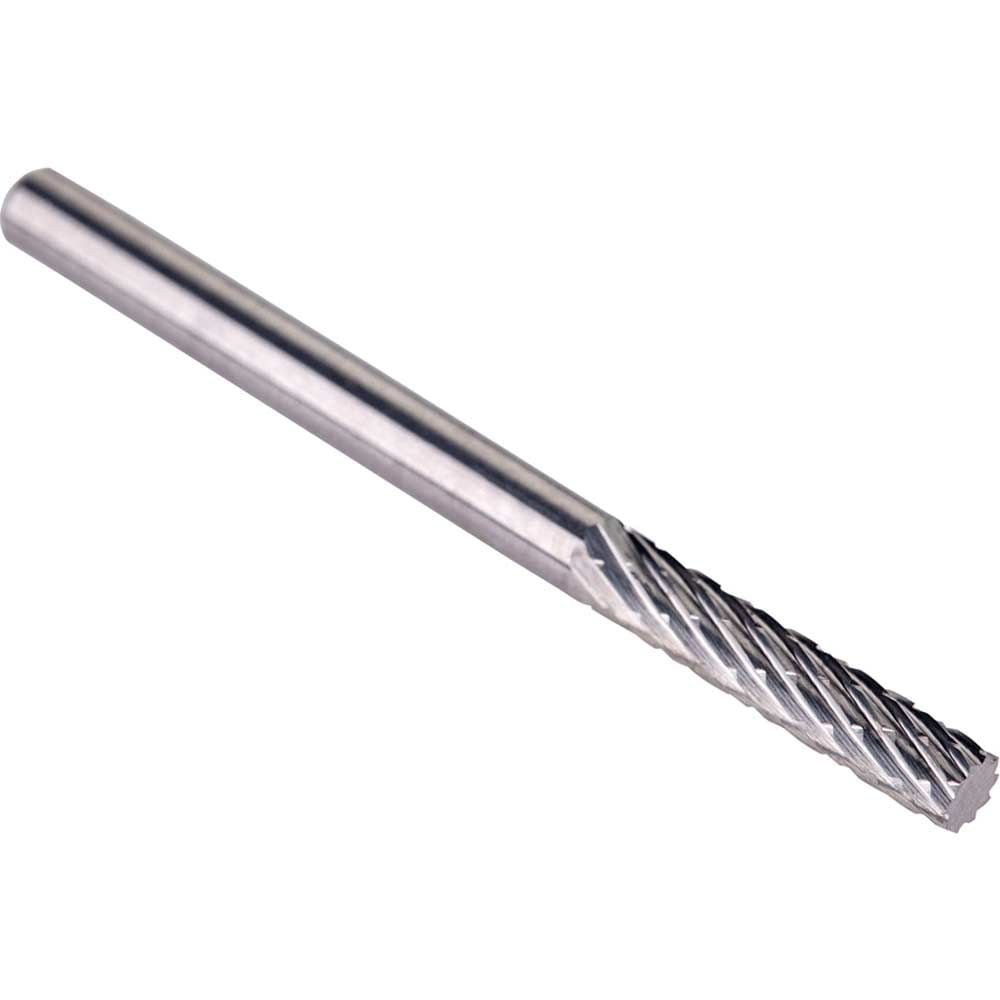

Dormer P501 Without End Cut Carbide Burr

The Dormer P501 Without End Cut Carbide Burr is a precision-engineered rotary burr designed for superior surface finishing in high-temperature alloys and superalloy applications. This cylinder-shaped burr features solid carbide construction with a bright finish, delivering exceptional durability and performance when machining difficult materials in demanding industrial environments.

Engineered with an AS single-cut flute style and light left-hand cross-cut geometry, this burr ensures efficient material removal whilst maintaining smooth cutting action and excellent surface quality. The micrograin carbide composition provides extreme hardness and wear resistance, extending tool life significantly when working with challenging materials. The ground finish prevents work material from adhering to the cutting edges, ensuring consistent performance throughout extended machining operations.

Ideal for precision grinding, deburring, and surface finishing tasks on high-temperature alloys, this cylinder burr without end cut is particularly suited to aerospace, automotive, and engineering applications where superalloy machining is required. The compact 3mm diameter and 38mm overall length make it suitable for detailed work and accessing confined spaces whilst maintaining exceptional control during operation.

Features and Benefits:
• AS cut geometry optimised for superalloys, ensuring high quality surface finish with fast and smooth cutting action
• Micrograin carbide providing extreme hardness and wear resistance for increased tool life when machining difficult materials
• Ground finish prevents work material from sticking to cutting edges

Specifications:
Diameter Cut: 3mm
Length Cut: 12mm
Shank Diameter: 3mm
Overall Length: 38mm
Burr Type Code: Superalloy Cut Geometry
Material Code: Solid Carbide
Coating: Bright
Burr Shape: A - Cylinder Shape without endcut
Material Application Priority Usage: S - High-temperature alloys
