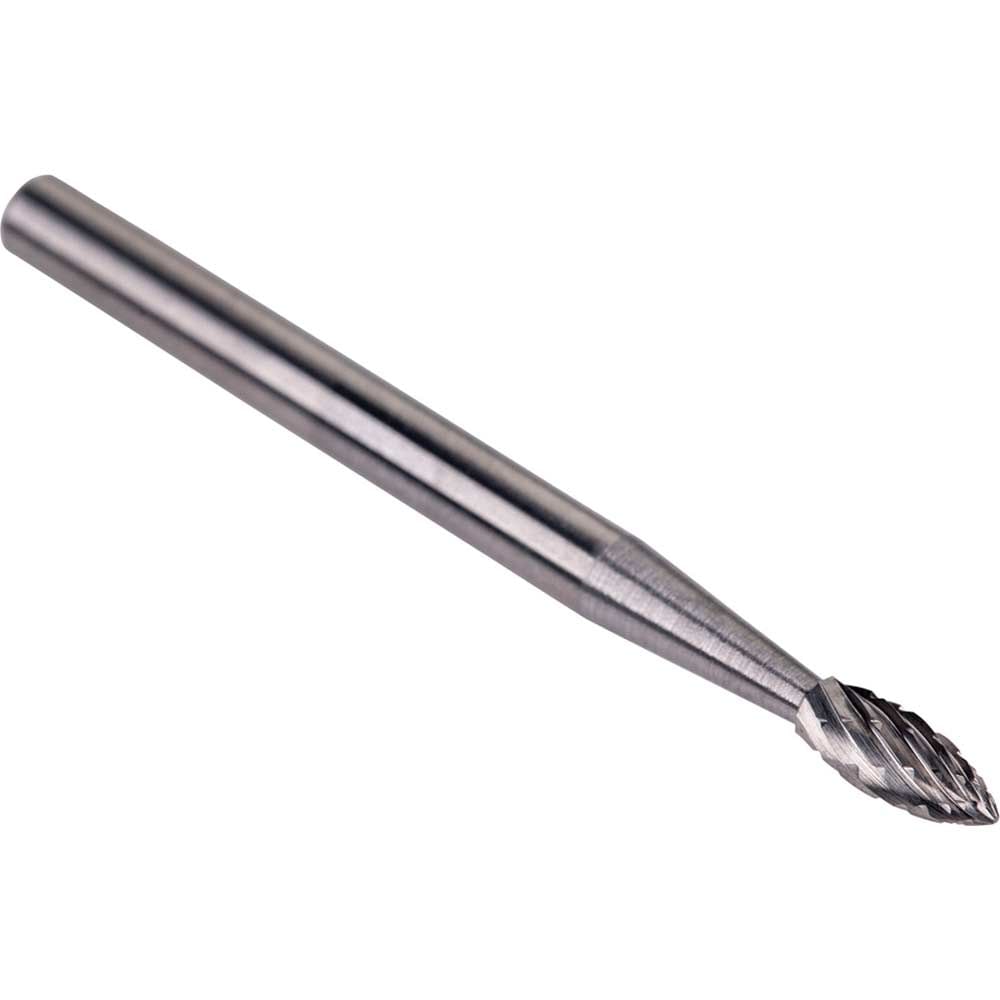

Dormer P515 Flame Carbide Burr

The Dormer P515 Flame Carbide Burr is a precision rotary burr designed for demanding machining applications in high-temperature alloys and superalloys. Featuring a distinctive flame-shaped profile, this solid carbide tool excels at round edge contouring and surface preparation work, making it particularly suitable for both professional engineering workshops and precision metalworking projects.

Constructed from micrograin carbide with a bright ground finish, this burr delivers exceptional hardness and wear resistance when working with difficult materials. The AS single-cut flute geometry incorporates a light left-hand cross-cut, specifically engineered for superalloys to provide fast, smooth cutting action whilst maintaining excellent surface finish quality.

The ground finish prevents work material from adhering to the cutting edges, reducing friction and heat buildup during operation. This promotes extended tool life and consistent performance across a range of applications, from preparing welding joints to detailed contouring work in aerospace-grade alloys and other challenging materials.

Features and Benefits:
• Ground finish prevents work material from sticking to the cutting edges
• AS cut geometry is first choice for superalloys, ensuring high quality surface finish with fast and smooth cutting action
• Micrograin carbide construction provides extreme hardness and wear resistance for increased tool life when machining difficult materials

Specifications:
Diameter Cut: 3mm
Length Cut: 6mm
Shank Diameter: 3mm
Overall Length: 38mm
Burr Type Code: Superalloy Cut Geometry
Material Code: Solid Carbide
Coating: Bright
Burr Shape: H - Flame Shape
Material Application Priority Usage: S - High-temperature alloys
