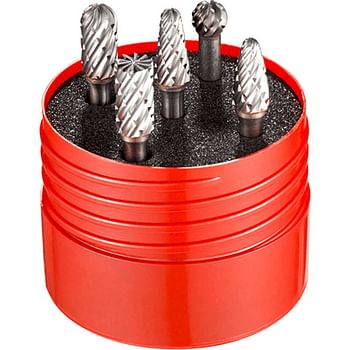

Dormer P88004 5 Piece Solid Carbide Burr Set

The Dormer P88004 is a 5-piece solid carbide burr set designed for precision material removal, shaping, and finishing tasks across a range of applications. Manufactured by Dormer, a trusted name in cutting tools, this comprehensive set delivers the versatility needed for professional metalworking, fabrication, and repair work.

Each burr features a 6mm shank diameter for compatibility with standard die grinders and rotary tools, with cutting diameters of 9.6mm and 10mm depending on the profile. The solid carbide construction ensures exceptional hardness and wear resistance, making these burrs suitable for use on steel, cast iron, aluminium, and other ferrous and non-ferrous metals.

The set includes five essential burr shapes to tackle different machining requirements: a cylinder with end cut for flat-bottom work and internal corners, a ball-nosed cylinder for radius cuts and profiling, a ball shape for spherical contours and concave surfaces, a ball-nosed tree for intricate shaping in tight spaces, and a ball-nosed cone for chamfering and deburring angular edges. This combination makes the set ideal for engineers, maintenance technicians, toolmakers, and fabricators who need reliable tools for both precision work and heavy stock removal.

Features and Benefits:
• Solid carbide construction delivers superior hardness and longevity compared to high-speed steel
• Five complementary burr shapes cover a wide range of grinding and shaping applications
• 6mm shank diameter fits standard die grinders and rotary tools
• Suitable for use on ferrous and non-ferrous metals including steel, cast iron, and aluminium
• Professional-grade Dormer quality ensures consistent performance

Specifications

Rotary Burr - Cylinder with endcut (P7039.6X6.0)
Diameter Cut: 9.6mm
Length Cut: 19mm
Shank Diameter: 6mm
Overall Length: 64mm
Burr Shape: B
Material Application Priority Usage: Cylinder with endcut

Rotary Burr - Ball Nosed Cylinder (P7059.6X6.0)
Diameter Cut: 9.6mm
Length Cut: 19mm
Shank Diameter: 6mm
Overall Length: 64mm
Burr Shape: C
Material Application Priority Usage: Ball Nosed Cylinder

Rotary Burr - Ball (P7059.6X6.0)
Diameter Cut: 9.6mm
Length Cut: 19mm
Shank Diameter: 6mm
Overall Length: 64mm
Burr Shape: D
Material Application Priority Usage: Ball

Rotary Burr - Ball Nosed Tree (P7119.6X6.0)
Diameter Cut: 9.6mm
Length Cut: 19mm
Shank Diameter: 6mm
Overall Length: 64mm
Burr Shape: F
Material Application Priority Usage: Ball Nosed Tree

Rotary Burr - Ball Nosed Cone (P72110.0X6.0)
Diameter Cut: 9.6mm
Length Cut: 20mm
Shank Diameter: 6mm
Overall Length: 65mm
Burr Shape: L
Material Application Priority Usage: Ball Nosed Cone

Contents
1x P7039.6X6.0; P7059.6X6.0; P7079.6X6.0; P7119.6X6.0; P72110.0X6.0
