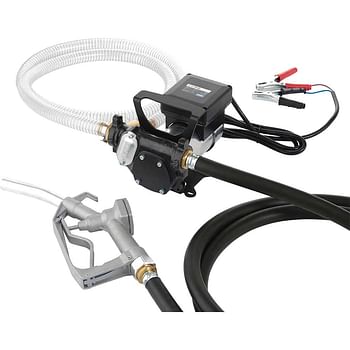

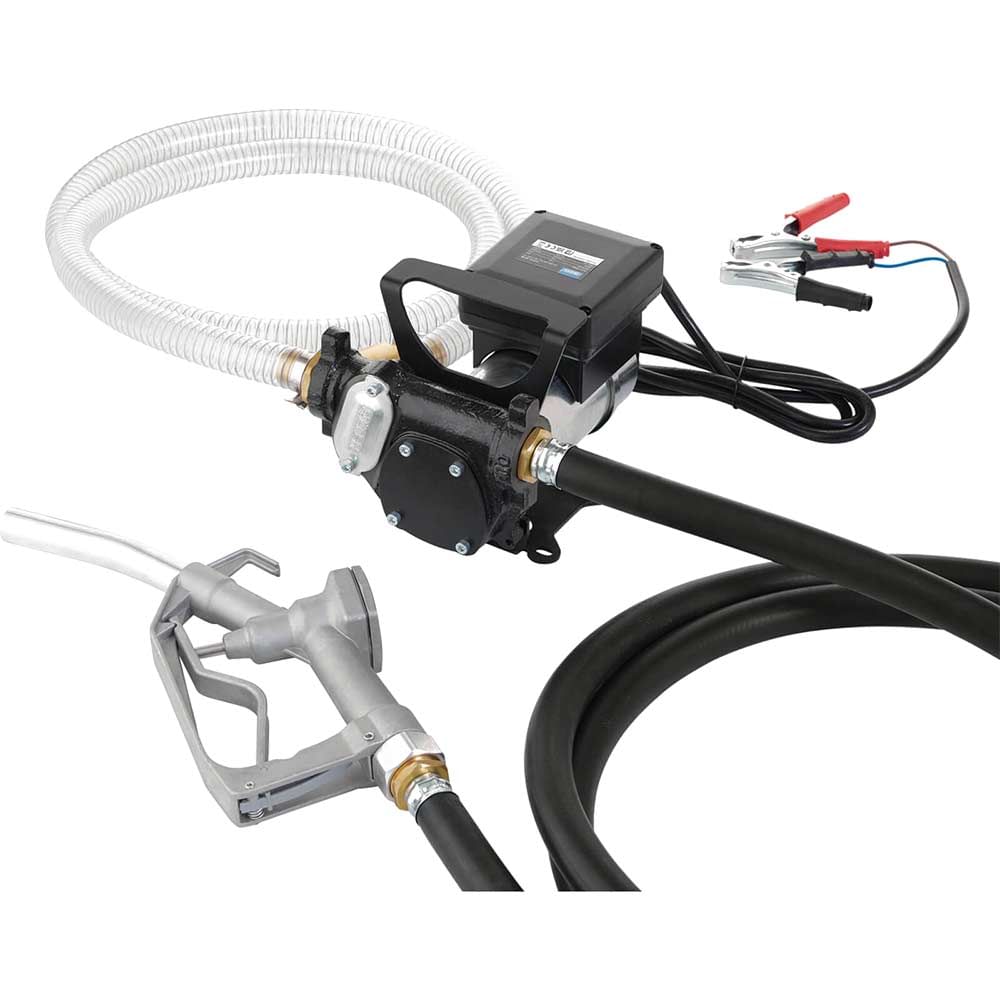

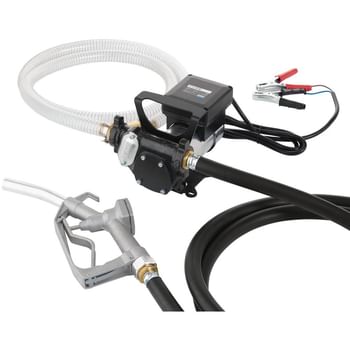

Draper 12v / 24v Diesel Transfer Pump

The Draper 12v / 24v Diesel Transfer Pump is a self-priming electric pump designed for refuelling construction and agricultural vehicles and equipment while on site. This versatile dual-voltage pump delivers impressive flow rates of 35L/min at 12V or 70L/min at 24V, making it ideal for both light commercial vehicles and larger plant machinery.

The transparent inlet hose allows operators to visually confirm that the pump is priming correctly, whilst the integrated filter minimises contaminants entering the internal mechanisms. The aluminium pump nozzle features a convenient two-speed trigger for controlled dispensing, giving you precise control whether you're topping up a generator or filling a larger tank. The robust motor operates with a 30-minute duty cycle, providing reliable performance for extended refuelling operations.

With its lightweight and compact design weighing just 6.5kg, this diesel transfer pump is easy to store in a van or service vehicle and simple to manoeuvre around site. The pump comes ready to use straight from the box, complete with positive and negative leads fitted with spring-loaded crocodile clips for quick connection to vehicle batteries. The 2-metre inlet hose and 4-metre outlet hose provide sufficient reach for most applications.

Features and Benefits:
• Self-priming pump for quick setup and reliable operation
• Transparent inlet hose with filter to minimise contaminants
• Aluminium nozzle with two-speed trigger for controlled dispensing
• Lightweight and compact design for easy storage and manoeuvrability
• Dual voltage operation suitable for both 12V and 24V systems

Specifications:
Flow rate (12V): 35L/min
Flow rate (24V): 70L/min
Motor (12V): 1,800rpm 16A
Motor (24V): 3,500rpm 25A
Duty cycle: 30 min on/off
Inlet hose length: 2m
Outlet hose length: 4m
Weight (net): 6.5kg

Contents:
1 x Pump
1 x Pump nozzle
1 x Inlet hose
1 x Outlet hose
1 x Positive lead and clamp
1 x Negative lead and clamp
1 x Brass filter
3 x O-rings
