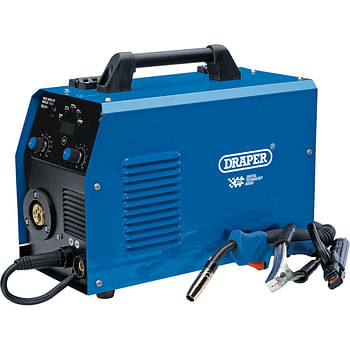

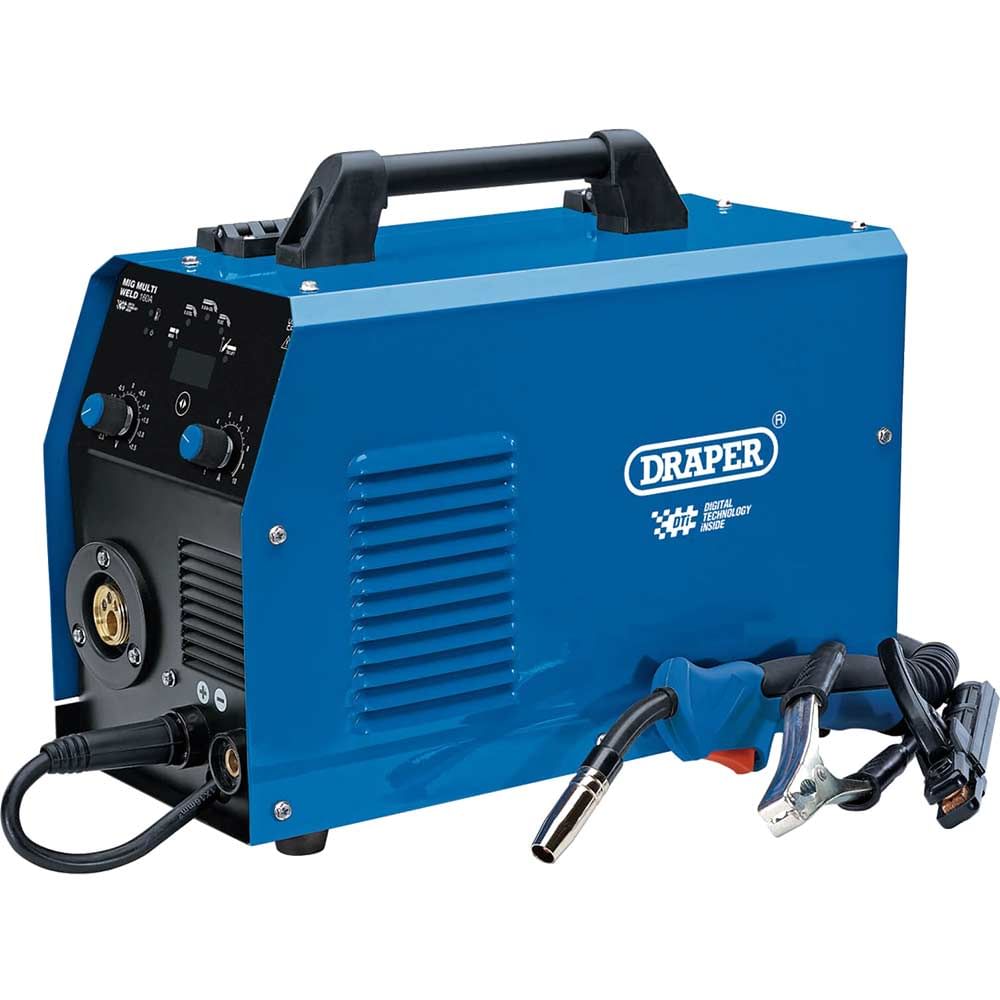

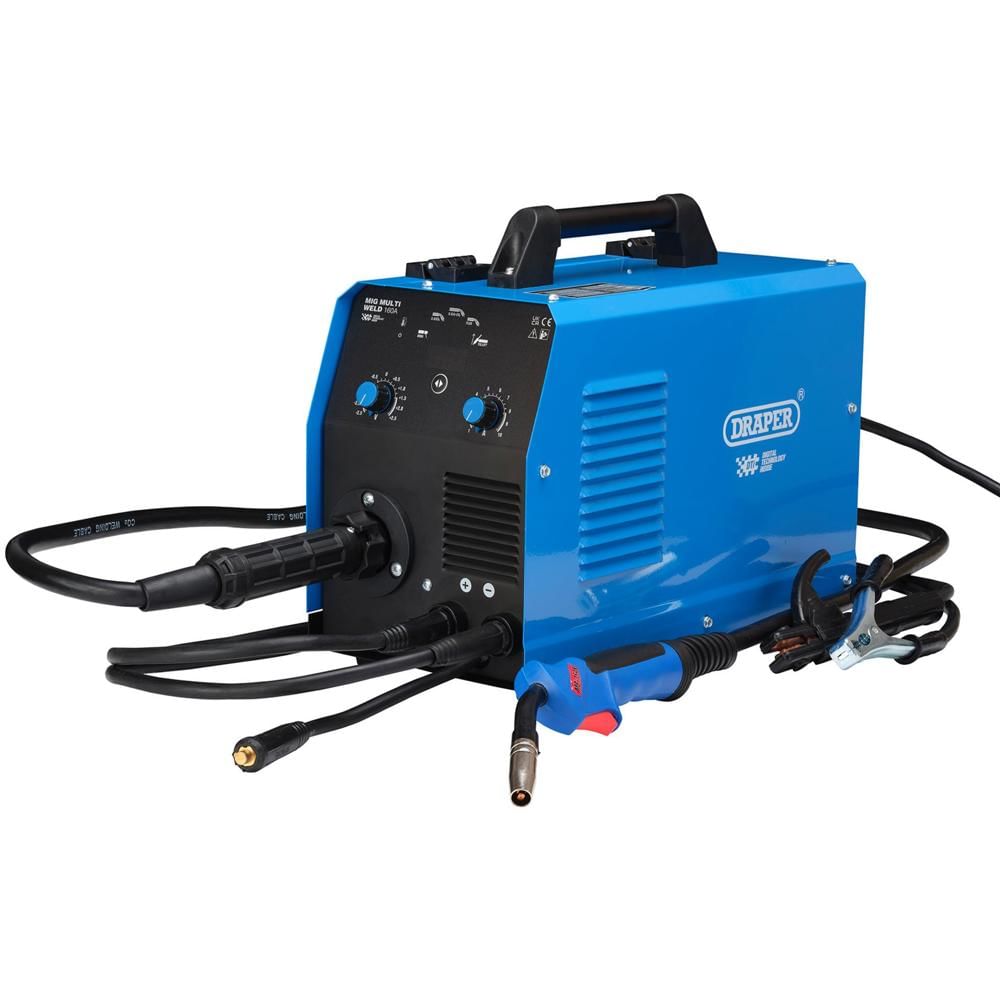

Draper 70047 Gas/Gasless MIG Inverter Multi Welder DTi

The Draper 70047 Gas/Gasless MIG Inverter Multi Welder DTi is a highly versatile multi-process welder designed for professional fabricators, mechanics and workshop applications. This compact unit handles MIG, MAG, flux-cored wire, MMA stick welding and TIG-Lift processes, making it suitable for steel, stainless steel and aluminium work across diverse welding tasks.

Built around powerful IGBT inverter technology, this welder delivers optimised performance with synergic wire feed operation that automatically adjusts parameters for consistent results. The one-touch setting system and digital display provide immediate control and precision, whilst the synergic function simplifies setup for less experienced operators. With a duty cycle of 60% at 160A and 100% at 120A, this unit offers reliable output for sustained workshop use.

The welder accommodates both 1kg and 5kg wire spools and accepts standard gas bottles, giving flexibility for on-site or workshop environments. Minimal spatter production ensures cleaner welds with reduced post-weld finishing. The MIG amperage range spans 30-160A whilst MMA operation covers 20-160A, handling electrode sizes from 1.6-4.0mm. Despite its capabilities, the unit weighs just 12kg with a compact footprint and integrated carry handle for portability between workstations.

Features and Benefits:
• IGBT inverter technology for superior performance and precision control
• Synergic wire feed simplifies setup and ensures consistent weld quality
• Multi-process capability handles five different welding applications
• Digital display provides clear parameter monitoring
• Lightweight portable design at 12kg with carry handle

Specifications:
Power supply: 230V
Plug Fitted: NO (16A PLUG REQUIRED)
Electrode size: 1.6-4.0mm
Welding wire spool size: 1kg and 5kg
Duty cycle: 60% @160A / 100% @120A
Dimensions: 420 x 205 x 300mm
Weight (net): 12kg
IGBT Tech: YES
Euro Torch Connector/Dinse Type Coupling: 10/25
Synergic Wire Feed: YES
Compatible with Regular gas Bottle: YES
Suitable for MMA welding: YES
TIG-Lift: YES
DTi: YES
MIG Amperage range: 30-160A
MMA Amperage range: 20-160A

Contents:
1 x MIG Torch
1 x Cable, 3m
1 x Electrode holder, 200A
1 x Earth clamp, 200A
1 x Gas hose, 2m
2 x Contact tips, 0.8mm
1 x Chipping hammer/wire brush
1 x Face mask
