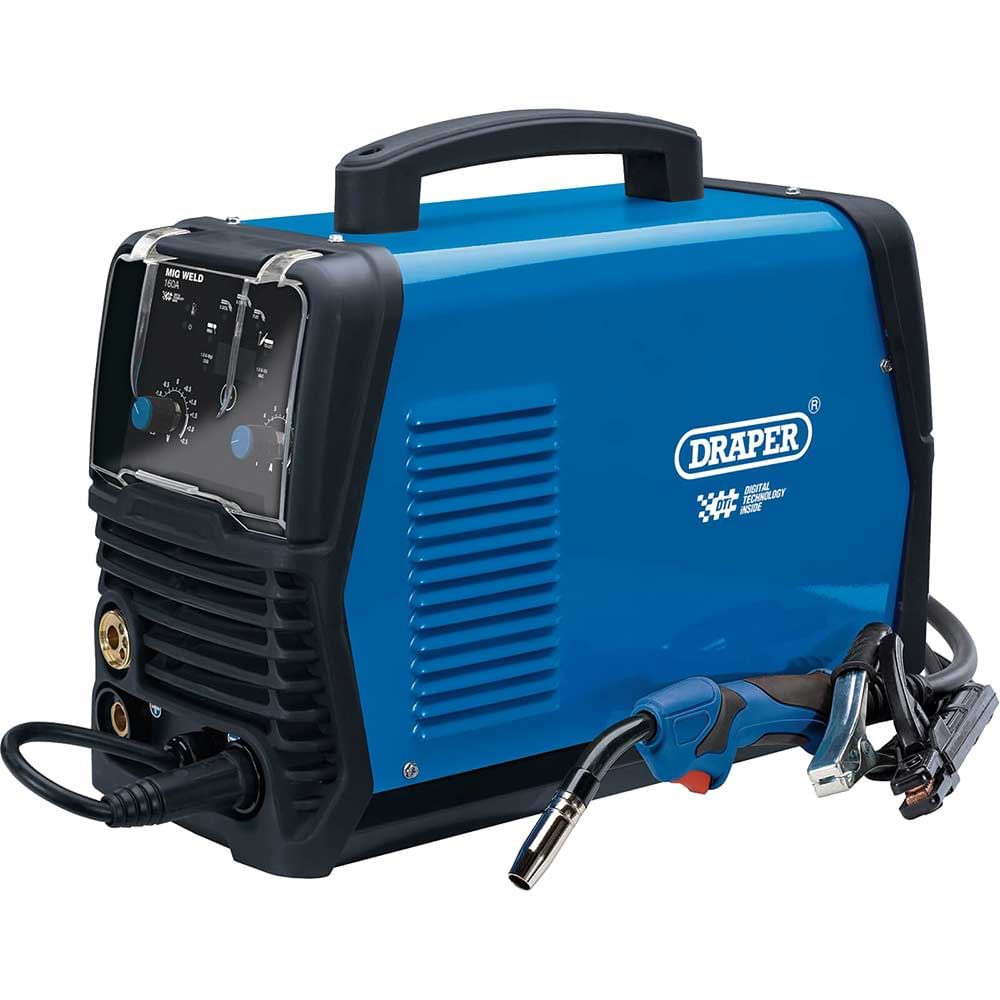

Draper 70048 Gas/Gasless AC/DC MIG Aluminium Welder

The Draper 70048 is a versatile multi-process welder designed for professional welders and fabricators working with aluminium and other metals. This compact unit combines MIG, MMA and TIG-Lift capabilities in a single portable package, making it ideal for workshops with varied welding requirements or mobile repair work where space is at a premium.

Built around advanced IGBT inverter technology, this welder delivers precise control across a 20-160A range with synergic wire feed operation that automatically adjusts parameters for optimal results. The digital display and one-touch settings simplify job setup, whilst pulse welding capability provides enhanced control when working with heat-sensitive materials. The unit operates in both gas-shielded and gasless modes, offering flexibility for indoor and outdoor applications.

Suitable for aluminium fabrication, steel repairs and general metalwork, the welder accommodates wire spool sizes from 1kg to 5kg and handles electrodes from 1.6mm to 4.0mm diameter. With a duty cycle of 60% at 160A and 100% at 120A, it provides sustained performance for demanding professional use. At just 14kg with an integrated carry handle, the unit is easily transported between job sites whilst the comprehensive accessory package includes everything needed to start welding immediately.

Features and Benefits:
• IGBT inverter technology for stable arc performance and reduced power consumption
• Multi-process capability combining MIG, MMA and TIG-Lift in one unit
• Pulse welding function for improved control on thin materials
• Synergic wire feed automatically optimises settings for consistent results
• Gas/gasless operation provides versatility for different working environments
• Lightweight portable design at 14kg with carry handle for easy transport
• Digital display and one-touch controls for straightforward operation
• Accepts both 1kg and 5kg wire spools to suit job requirements

Specifications:
• Amperage range: 20-160A
• Power supply: 230V
• Plug Fitted: NO (32A PLUG REQUIRED)
• Electrode size: 1.6-4.0mm
• Welding wire spool size: 1kg and 5kg
• Duty cycle: 60% @160A / 100% @120A
• Dimensions: 425 x 220 x 320mm
• Weight (net): 14kg
• IGBT Tech: YES
• Euro Torch Connector/Dinse Type Coupling: 35/50
• Synergic Wire Feed: YES
• Compatible with Regular gas Bottle: YES
• Suitable for MMA welding: YES
• TIG-Lift: YES
• Alu Only: YES
• Pulse Welding: YES
• Digital Display: YES
• DTi: YES

Contents:
• 1 x Aluminium welding MIG torch
• 1 x Cable, 3m
• 1 x Electrode holder, 200A
• 1 x Earth clamp, 200A
• 1 x Contact tips, 1.0mm
• 1 x Contact tips, 1.2mm
• 1 x Gas hose, 2m
• 1 x Chipping hammer/wire brush
• 1 x Face mask
