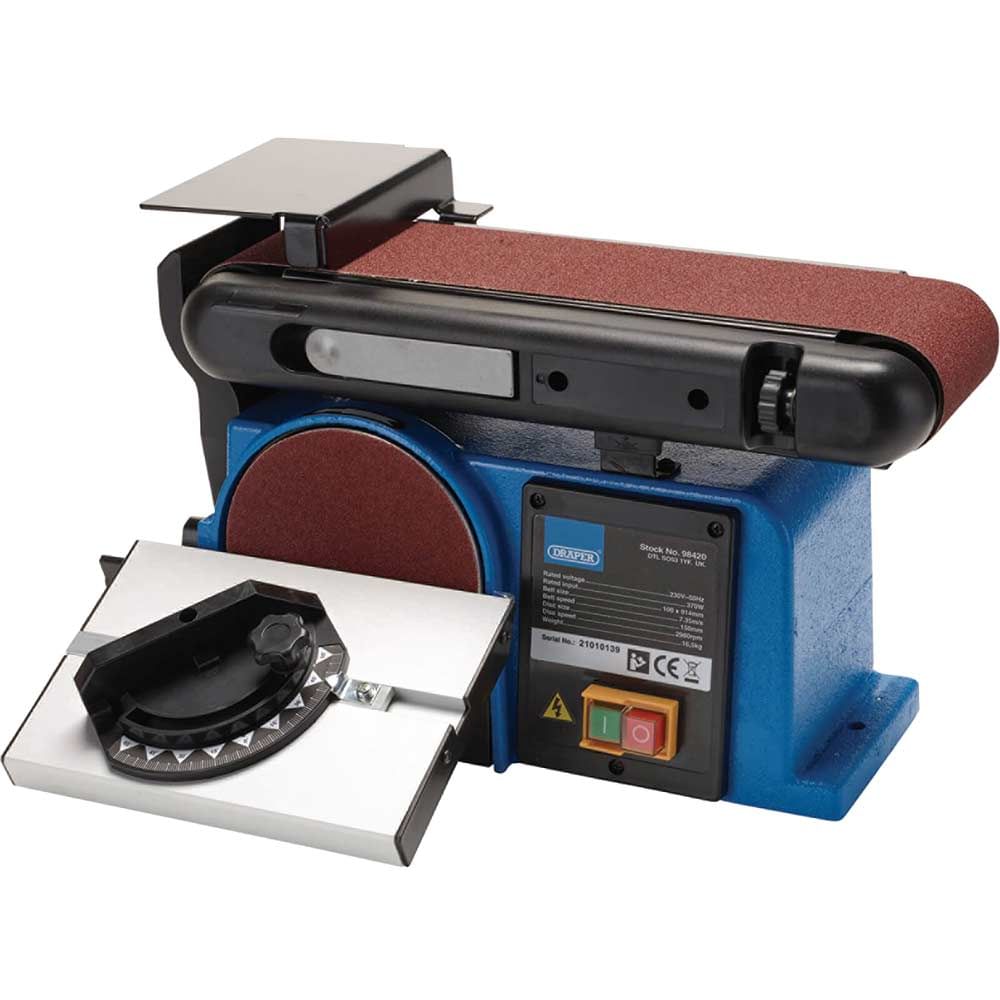

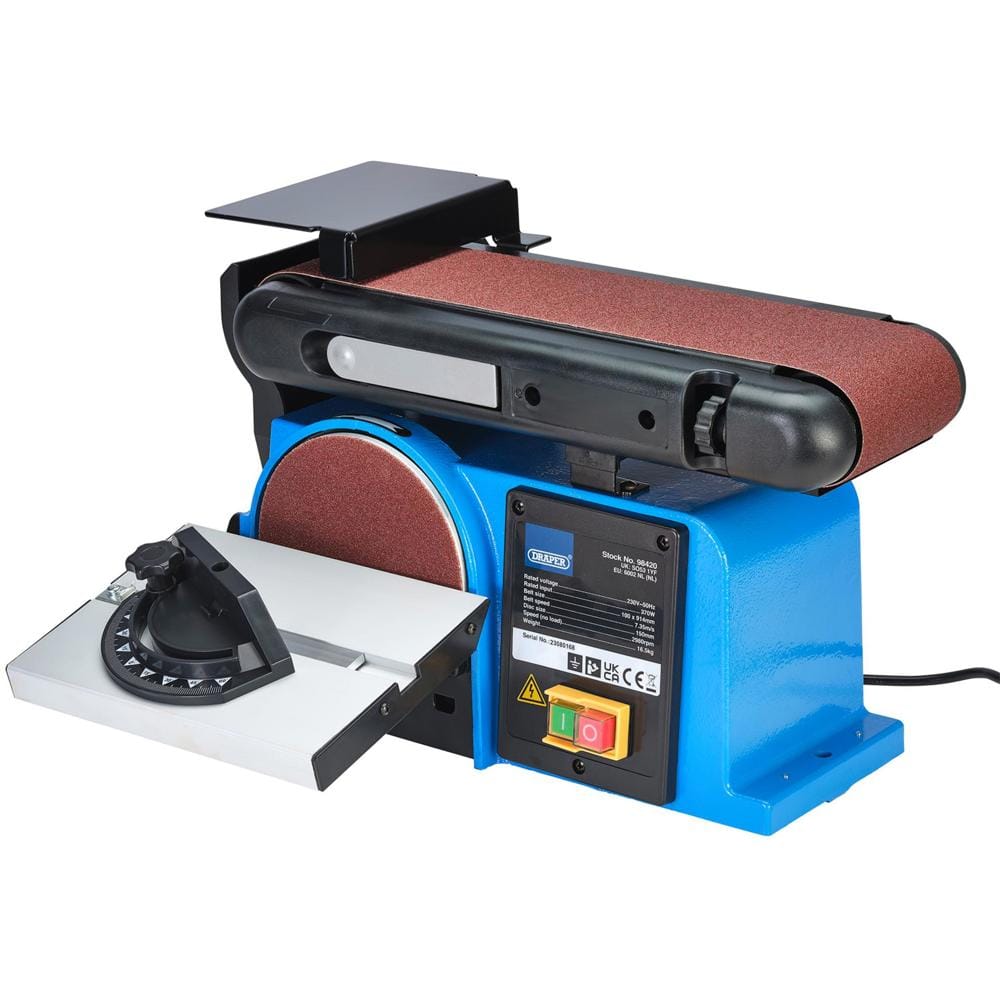

Draper 98420 Belt and Disc Sander

The Draper 98420 is a versatile belt and disc sander designed for workshop sanding of wood and similar materials. Built with a cast iron base for stability and powered by a robust 370W induction motor, this compact machine combines precision engineering with practical functionality for woodworkers and joiners.

The 100mm sanding belt offers exceptional versatility, with the ability to position it horizontally or vertically depending on the workpiece and task. A fast-tracking knob enables precise adjustment of the front wheel, whilst a quick release tensioning lever allows for swift belt changes with minimal downtime. The 150mm diameter sanding disc features its own diecast aluminium worktable with an adjustable mitre gauge, and the table pivots from 0 to 45 degrees for accurate angle sanding on bevelled edges and mitred joints.

Designed with workshop efficiency in mind, the sander incorporates a built-in dust extraction port to maintain a cleaner working environment and improve visibility during operation. Safety features include a no-volt release magnetic switch to prevent accidental restart after power interruption. The machine is supplied complete with both a sanding belt and disc, ready for immediate use. Ideal for smoothing timber components, preparing surfaces for finishing, and fine-tuning joinery work in professional and home workshops.

Features and Benefits:
• Horizontal or vertical belt positioning for versatile sanding applications
• Adjustable angle table with mitre gauge for precise bevelled work
• Quick change sanding belt system minimises downtime
• Dust extraction outlet for cleaner, safer workspace
• Cast iron base provides stability during operation
• No-volt release magnetic switch for enhanced safety

Specifications:
Voltage: 230V
Power: 370W
No load speed: 2980rpm
Belt speed: 7.35m/s
Belt size: 100 x 914mm
Disc diameter: 150mm
Disc table size: 150 x 264mm
Tilt: 0-45°
Belt: 0-90°
Dimension: 483 x 356 x 292mm
Weight: 16.5kg

Contents:
1 x Belt and Disc Sander, 370W, 230V
