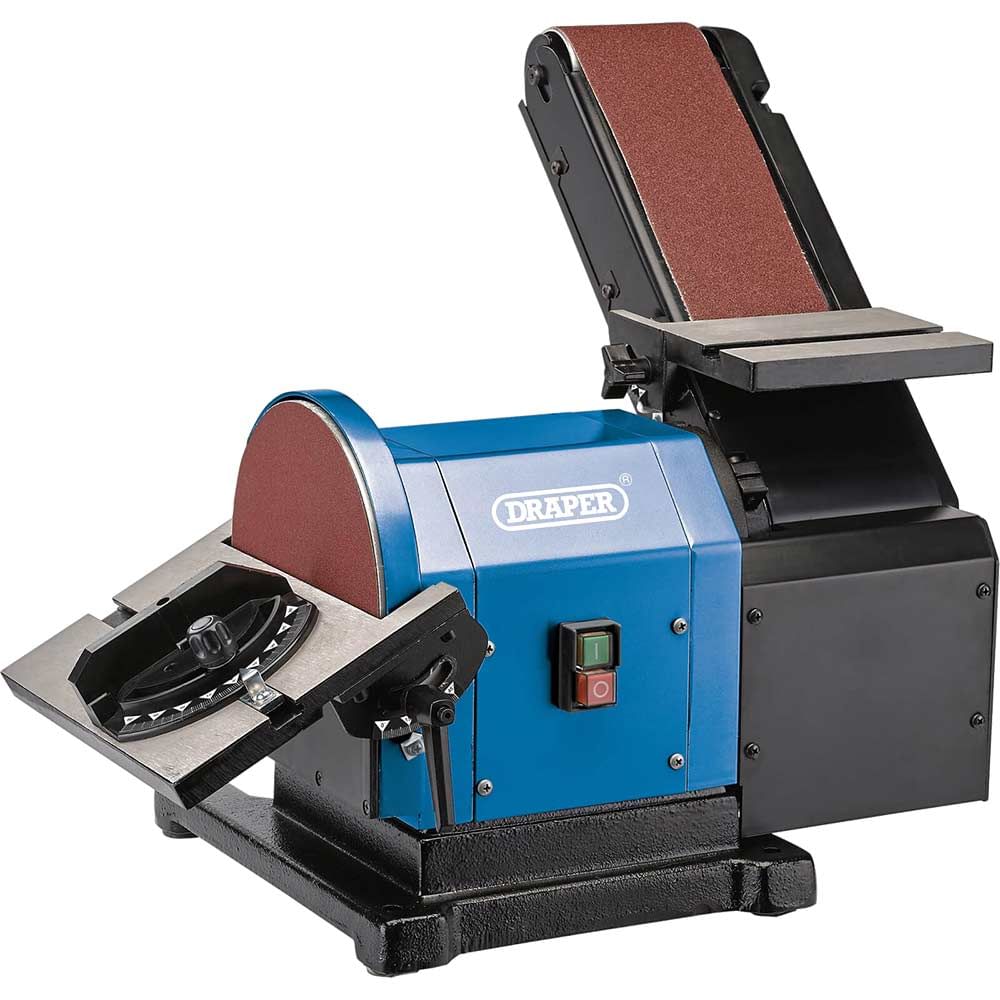

Draper 98525 Belt and Disc Sander

The Draper 98525 is a versatile belt and disc sander designed for woodworking applications in workshops and fabrication environments. Powered by a robust 500W motor, this combination sander offers both a 100mm belt and 200mm diameter disc for comprehensive material finishing.

The sanding belt can be positioned at any angle from 0-90°, allowing for horizontal or vertical operation to suit different workpiece configurations. This adjustability makes the sander ideal for edge finishing, surfacing flat panels, and shaping curved profiles in timber and similar materials.

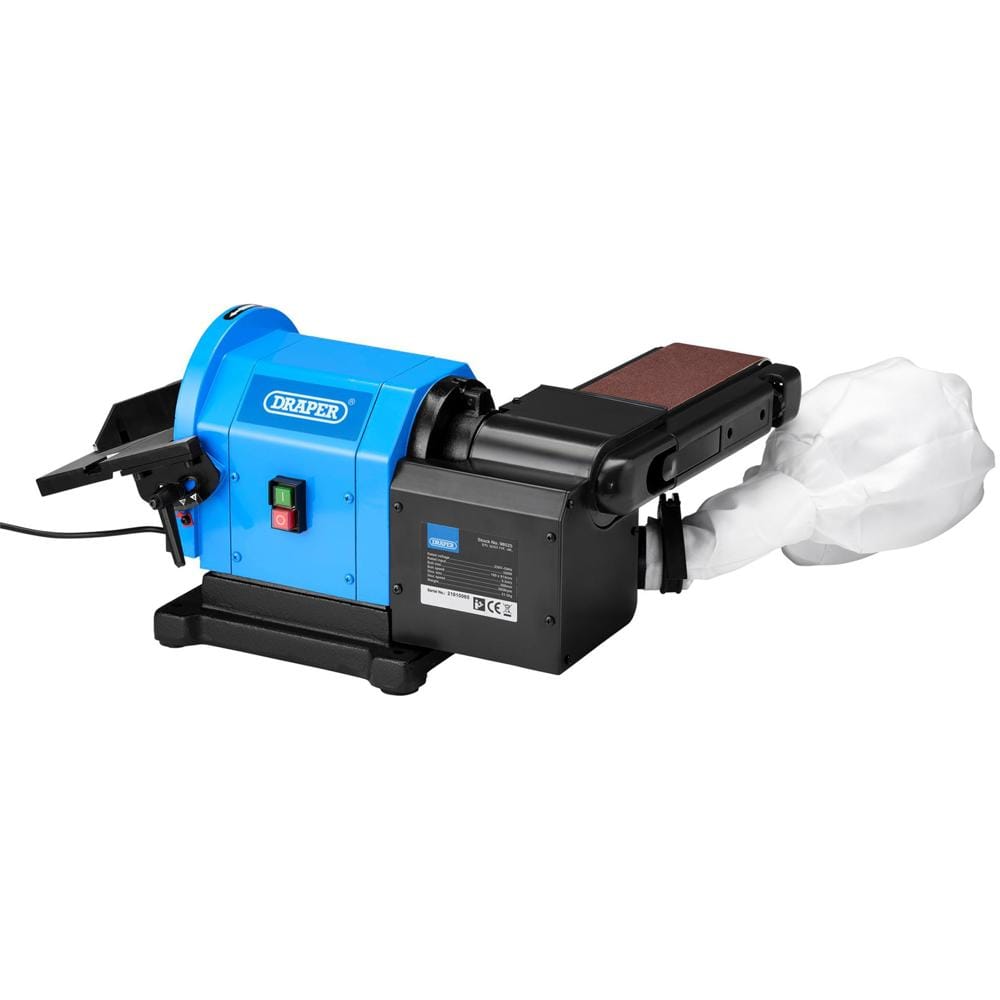

The 200mm disc section features its own dedicated worktable with an integrated mitre gauge, and the table pivots from 0-45° to enable precise angle sanding for bevels and mitres. The hook and loop disc-changing mechanism ensures quick abrasive changes with minimal downtime. A comprehensive dust extraction system includes an exhaust outlet, collection bag and clamp, with the option to connect to a workshop vacuum for enhanced dust control.

Safety is addressed through the no volt switch, which prevents accidental restart after power interruption. The machine is specifically designed for sanding wood and similar materials and should not be used for metal grinding or abrasion. Supplied complete with sanding belt and disc to get started immediately.

Features and Benefits:
• Sanding belt adjusts 0-90° with horizontal or vertical positioning for versatile material handling
• 0-45° adjustable disc worktable with mitre gauge for accurate angle work
• Dust extraction outlet compatible with vacuum systems for cleaner working environment
• No volt switch prevents accidental restart for enhanced operator safety
• Hook and loop disc-changing mechanism for quick abrasive replacement

Specifications:
Voltage: 230V
Power: 500W
Weight: 21.5kg
Dimension: 540 x 370 x 325mm
Belt Tilt: 0-90°
Tilt Disc: 0-45°
Disc table size: 150 x 264mm
Belt size: 100 x 914mm
Belt speed: 9.2m/s
No load speed (disc): 2850rpm

Contents:
1 x Belt and Disc Sander, 300W, 230V
