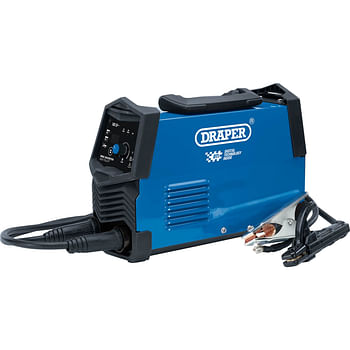

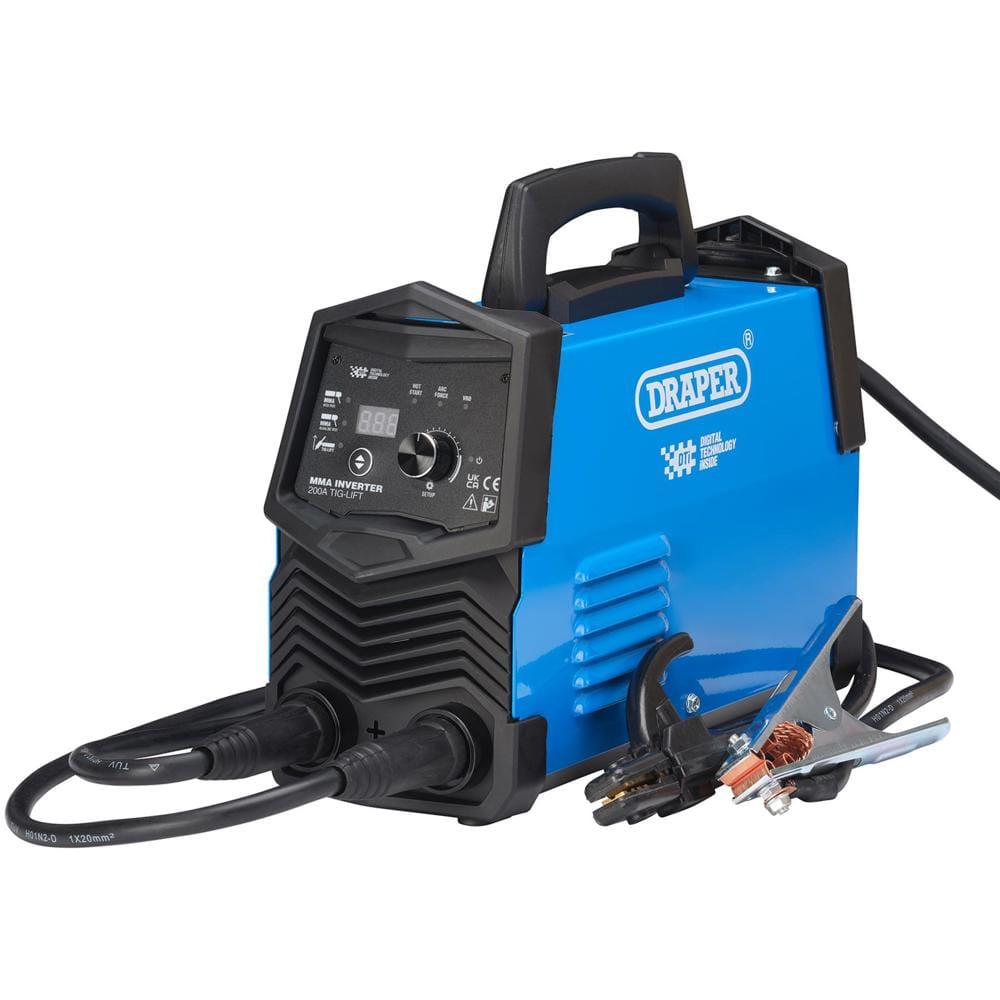

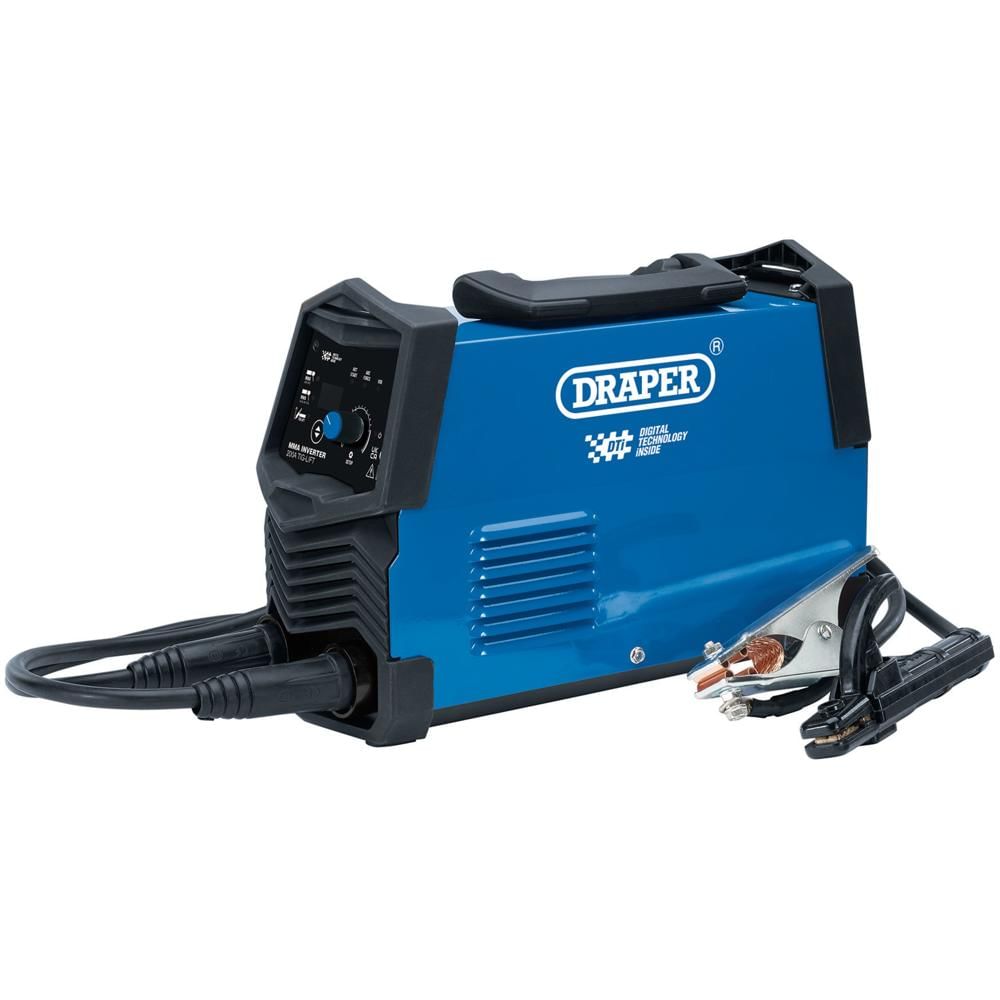

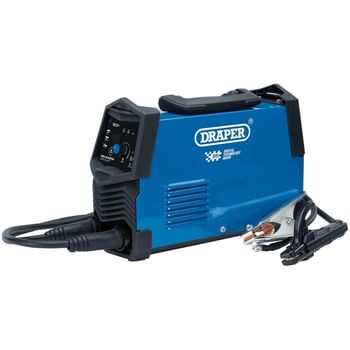

Draper AW200A 200Amp MMA Inverter Welder with TIG-Lift Dti

The Draper AW200A is a compact 200-amp dual-function inverter welder offering both MMA and TIG-Lift capabilities, designed for professional tradespeople and serious workshop users requiring versatile arc welding performance. With a robust 20-200A amperage range and impressive duty cycle of 60% at 200A (100% at 160A), this machine delivers reliable performance across a wide spectrum of welding applications from light fabrication to heavy-duty steel work.

Advanced arc control features including hot start, arc force, and anti-stick function work together to ensure excellent electrode ignition and maintain a smooth, stable arc throughout the welding process. The VRD (Voltage Reduction Device) function enhances operator safety by reducing open-circuit voltage, whilst thermal overload protection safeguards the unit during extended use. The Euro torch connector with Dinse type coupling provides compatibility with professional-grade accessories.

Built into a durable hard case with integrated carry handle, this 5.3kg welder combines portability with protection, making it ideal for mobile welding contractors and site-based fabrication work. The compact dimensions of 340 x 135 x 235mm allow for easy transportation and storage without compromising on output capability. Fan cooling ensures consistent performance even during demanding workshop sessions.

Features and Benefits:
• VRD function enhances operator safety during arc welding operations
• Hot start, arc force and anti-stick for superior arc control and electrode performance
• Dual-function capability switches between MMA stick welding and TIG-Lift processes
• Portable hard case design with carry handle for site mobility
• Thermal overload protection prevents damage during extended use
• High duty cycle of 60% at full 200A output for demanding applications

Specifications:
• Amperage range: 20-200A
• Power supply: 230V
• Plug fitted: NO (32A plug required)
• Duty cycle: 60% @ 200A / 100% @ 160A
• Dimensions: 340 x 135 x 235mm
• Weight (net): 5.3kg
• Euro torch connector/Dinse type coupling: 35/50

Contents:
• 1 x Electrode holder, 200A
• 1 x Earth clamp, 300A
• 1 x Chipping hammer/wire brush
• 1 x Face mask
