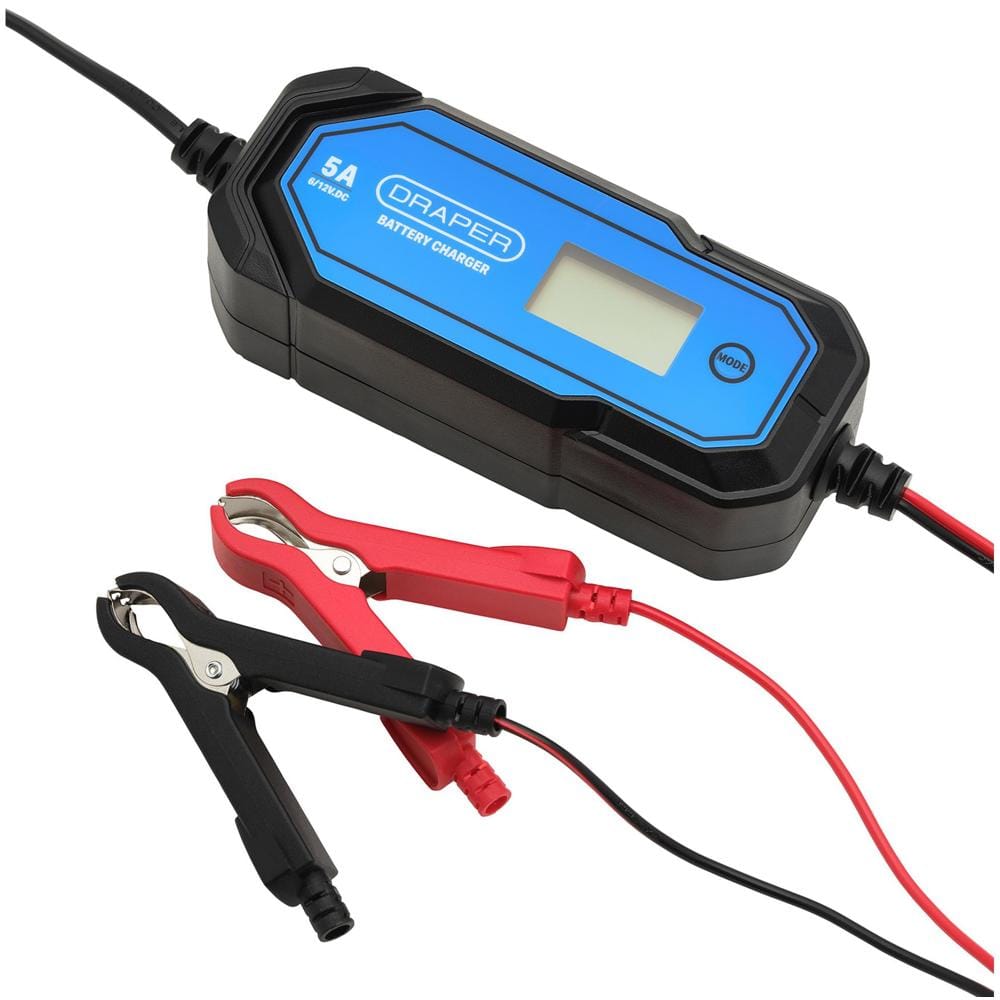

Draper BCLCD5 5A 6/12V Smart Battery Charger LCD

The Draper BCLCD5 is a 5A smart battery charger designed for charging and maintaining 6V and 12V lead-acid batteries in automotive and leisure applications.

Suitable for a wide range of battery types including flooded, maintenance-free, AGM, and gel, it handles capacities from 4Ah to 150Ah — making it equally at home in a home garage, workshop, or professional environment. The smart charging system helps optimise battery performance and extend service life, rather than simply delivering a fixed charge.

A low charging start voltage of 1.5V means the unit can recover deeply discharged batteries that simpler chargers would fail to detect. The LCD display provides clear, at-a-glance status information throughout the charging process, while built-in reverse polarity and short-circuit protection add a practical layer of safety during connection. Rated IP54, it offers a degree of protection against dust and water ingress suitable for typical workshop conditions.

Features and Benefits:
• Supports 6V and 12V lead-acid battery charging
• Compatible with flooded, maintenance-free, AGM, and gel battery types
• Smart charging system optimises battery performance and lifespan
• LCD display provides clear charging and status information
• Maximum 5A output suitable for batteries from 4Ah to 150Ah
• Charging start voltage of 1.5V enables recovery of deeply discharged batteries
• Reverse polarity protection improves safety during connection
• Short-circuit protection helps prevent damage to charger and battery
• IP54 protection rating suitable for workshop use

Specifications:
Nominal Voltage: 220V–240V
Battery Current: Max. 5A
Battery Voltage: 6V/12V
Charging Start Voltage: 1.5V
Battery Capacity: 4–150Ah
Output Cable Length: 1.5m
Input Cable Length: 1.5m with BS plug
Display: LCD
Surrounding Temperature: -20°C to 40°C
Protection Class: IP54

Contents:
1 x 5A 6/12V Smart Battery Charger LCD
1 x Alligator Clamp
