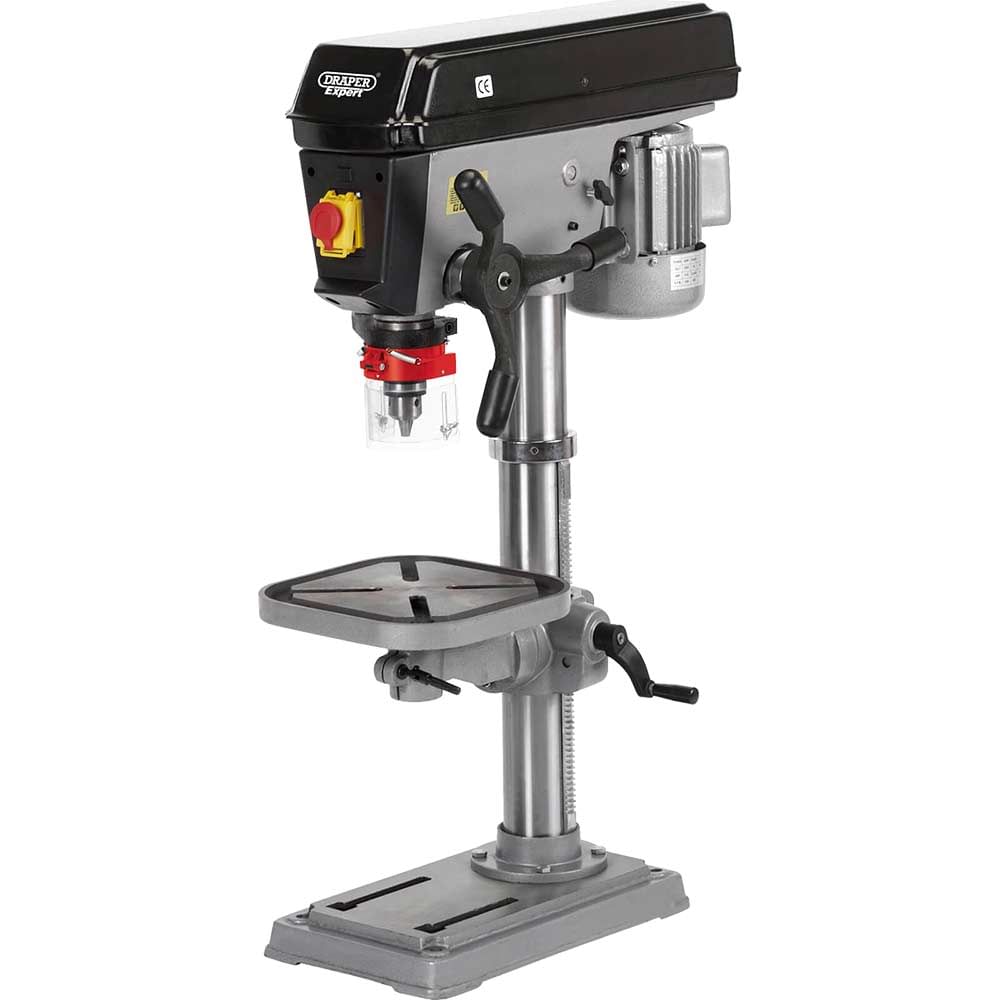

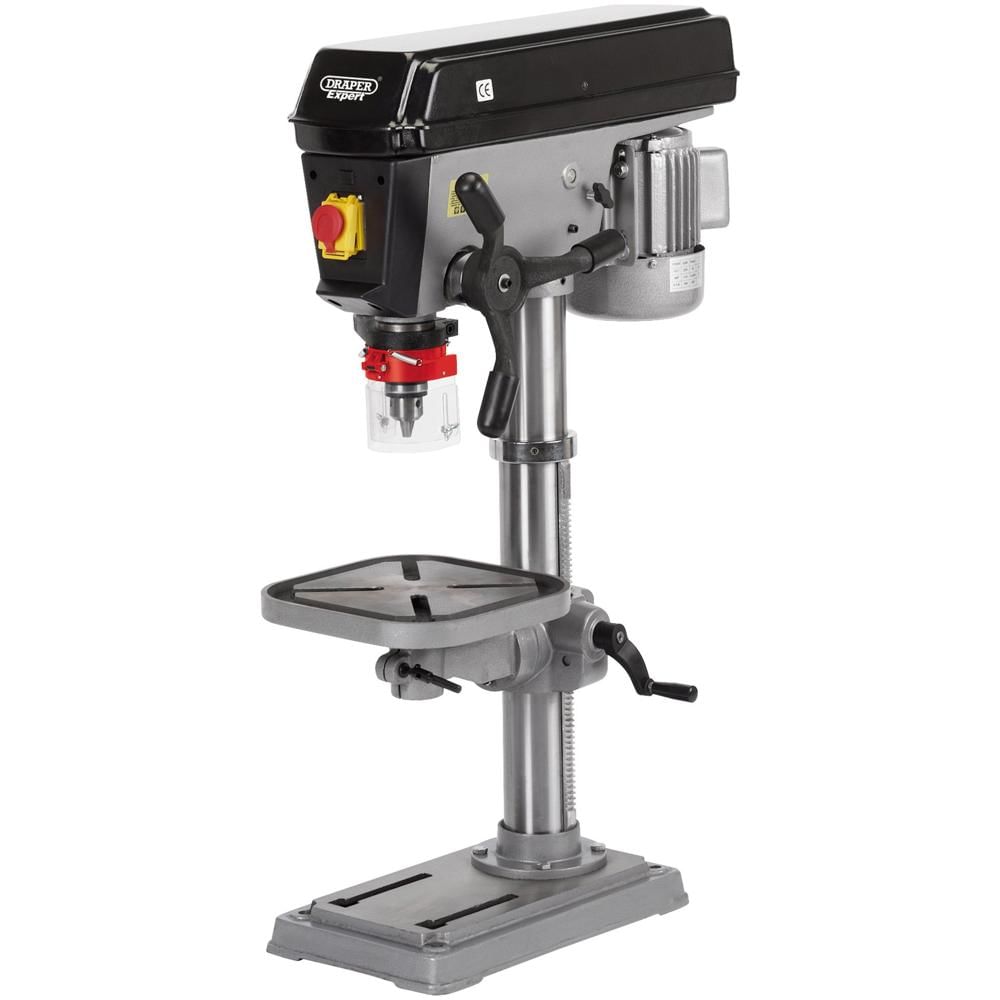

Draper BD65016E 16 Speed Heavy Duty Bench Drill

The Draper BD65016E is a heavy duty 16 speed bench drill engineered for professional engineering and fabrication workshops. With a 19mm drilling capacity and robust construction, this floor-standing pillar drill delivers the versatility and precision demanded by metalworking applications.

Built around an aluminium motor casing with a lockable pulley cover, this bench drill features a substantial square work table measuring 290 x 290mm. The table is equipped with a heavy duty rack and pinion mechanism that enables smooth, precise height adjustment for accurate drilling operations. With 16 speed settings ranging from 120 to 3000rpm, the drill accommodates various materials and bit sizes through its 3-16mm chuck capacity.

Safety and control are prioritised throughout the design. The No-Volt safety release switch prevents unexpected restart after power interruption, whilst the included chuck guard and adjustable depth stop enhance operational safety and drilling precision. The MT2 spindle taper accepts standard Morse taper tooling, and the 80mm spindle travel provides ample drilling depth. Weighing 71kg with a 178mm throat depth, this is a substantial workshop tool that offers stability for demanding metalwork and fabrication tasks. Supplied with a BS approved non-rewireable moulded plug and 1.8m cable for immediate workshop use.

Features and Benefits:
• 16 speed settings (120-3000rpm) for versatility across different materials and drill bit sizes
• Heavy duty rack and pinion table adjustment for smooth, precise positioning
• No-Volt safety release switch prevents unexpected restart after power failure
• MT2 spindle taper compatible with standard Morse taper tooling
• Chuck guard and depth stop enhance operational safety and drilling accuracy
• Aluminium motor casing with lockable pulley cover for durability and security

Specifications:
Base Size: 460 x 275mm
Chuck Capacity: 3-16mm
Collar Diameter: 60mm
Column Diameter: 80mm
Drilling Capacity: 19mm
Height: 1000mm
Speed: 16 (120-3000r/min)
Spindle Taper: MT2
Spindle Travel: 80mm
Table Size: 290 x 290mm
Throat Depth: 178mm
Weight: 71kg

Contents:
1 x Draper Expert 16 Speed Heavy Duty Bench Drill, 650W
