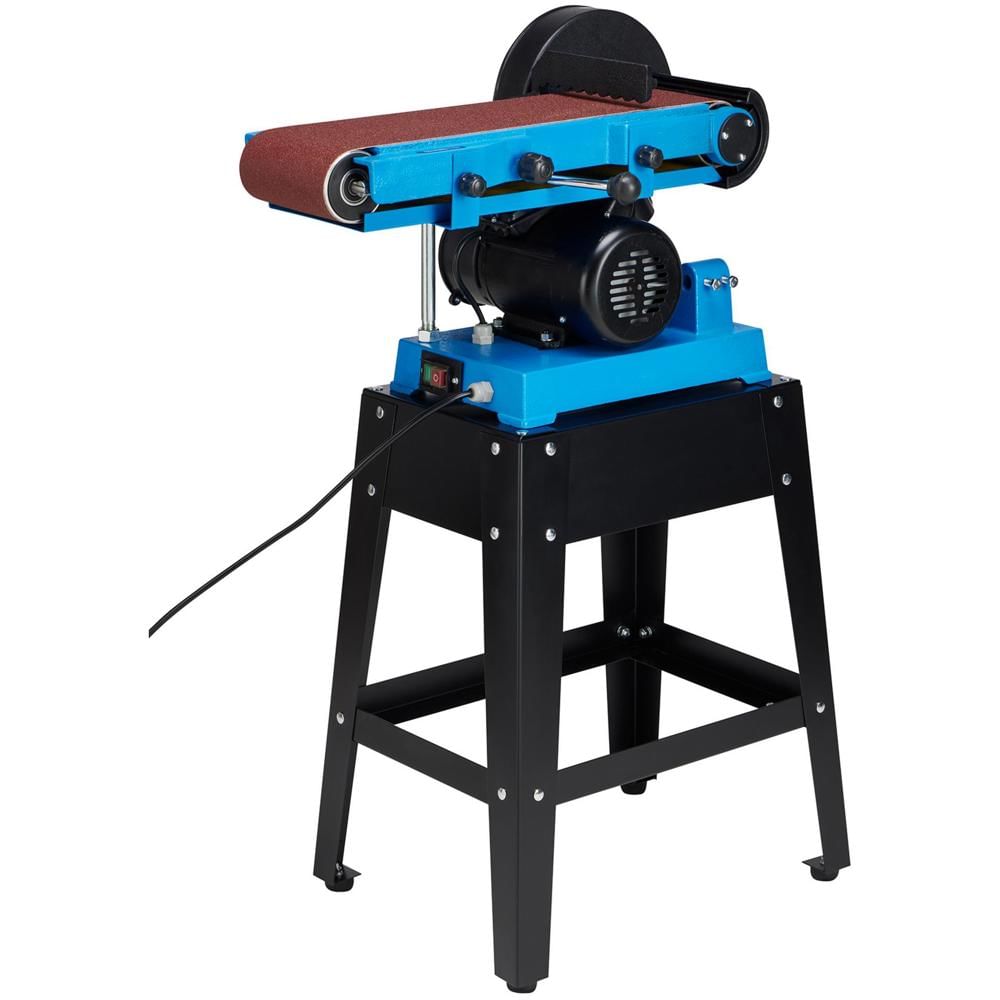

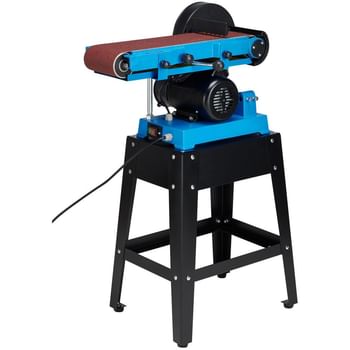

Draper BDS750E Floor Standing Belt and Disc Sander

The Draper BDS750E Floor Standing Belt and Disc Sander is a versatile workshop sander designed for professional woodworking and wood finishing applications. Powered by a robust 750W motor, this floor-standing machine combines belt and disc sanding capabilities in a single unit, making it ideal for both flat surface preparation and precision edge work.

The 150 x 1220mm sanding belt offers exceptional flexibility, with the ability to be positioned either horizontally or vertically depending on the workpiece requirements. This dual-orientation feature makes the sander particularly effective for smoothing large flat panels, shaping curved components, and preparing timber edges. The 230mm diameter sanding disc is equipped with its own dedicated worktable and mitre gauge, allowing for accurate angle work. The disc worktable tilts from 0-45 degrees, enabling precise bevel sanding operations commonly required in joinery and carpentry tasks.

Safety and convenience are prioritised throughout the design. The machine features a no-volt switch for enhanced operator protection, whilst the hook and loop disc changing mechanism ensures quick and tool-free abrasive replacement. Two dust extraction outlets are provided – including a filter bag and clamp, plus a dedicated outlet for connection to workshop vacuum systems – helping maintain a cleaner, safer working environment. The sander is supplied complete with a sturdy four-legged tool stand, sanding belt, and disc, ready for immediate workshop use. This machine is specifically designed for sanding wood and similar materials and should not be used for metal grinding or abrasion.

Features and Benefits:
• Horizontal or vertical belt positioning for versatile sanding applications
• Adjustable angle worktable with mitre gauge for precision bevel work
• Two dust extraction outlets for effective workshop dust management
• No-volt safety switch for enhanced operator protection
• Hook and loop disc changing system for quick abrasive replacement
• Supplied complete with four-legged tool stand for immediate use

Specifications:
Voltage: 230V
Power: 750W
No load speed: 2950rpm
Belt speed: 5.3m/s
Belt size: 150 x 1220mm
Disc diameter: 230mm
Disc table size: 157 x 314mm
Tilt: 0-45°
Weight: 49.5kg
Stand size: 750 x 550 x 440mm

Contents:
1 x 230V Belt and Disc Sander with Tool Stand, 750W
