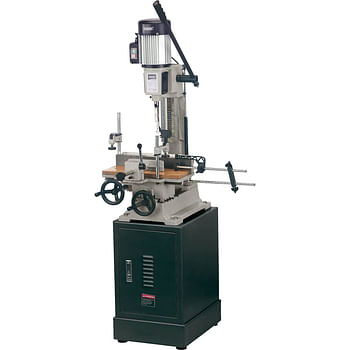

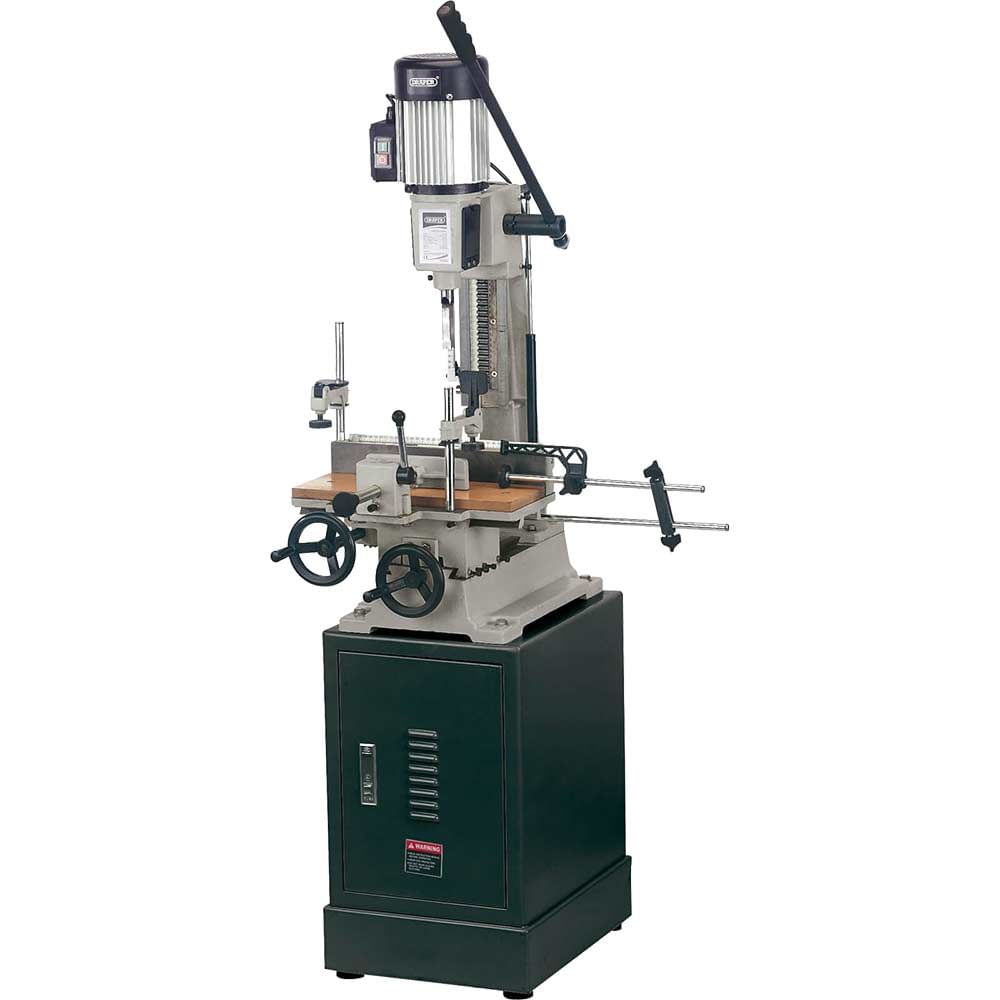

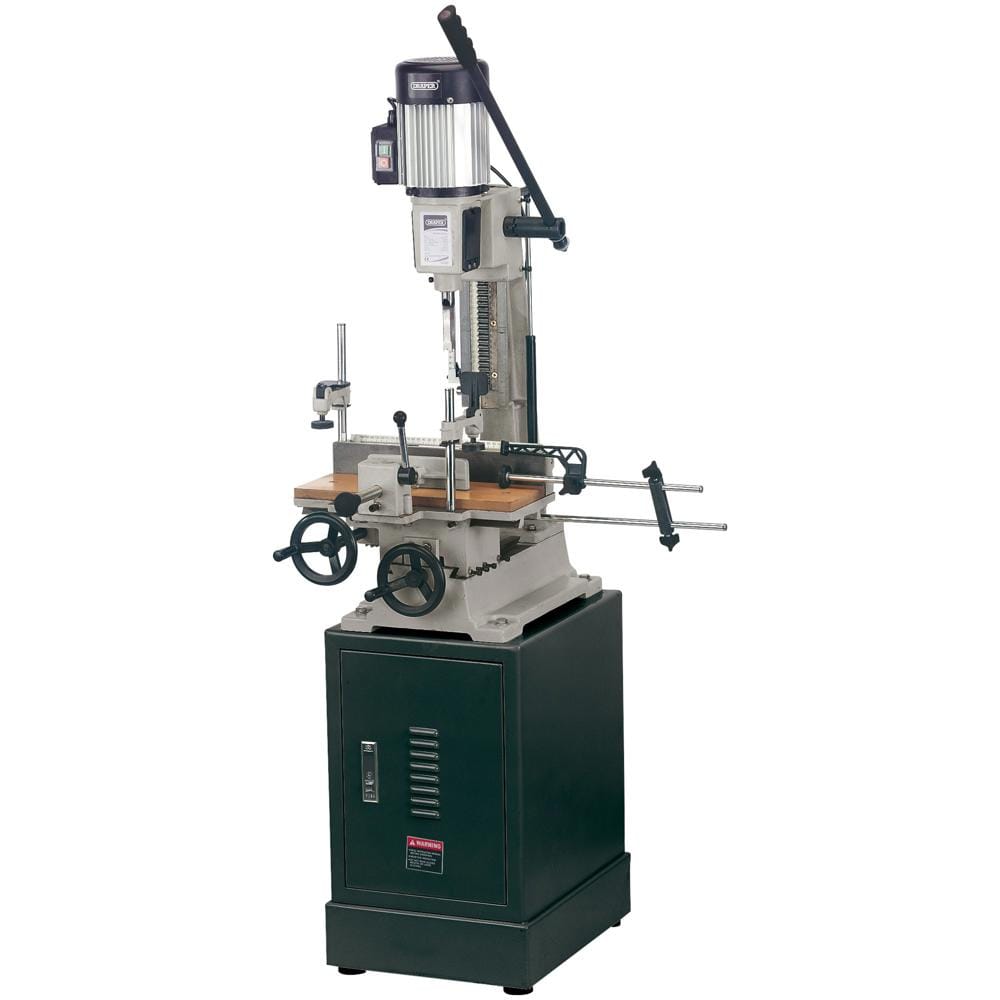

Draper BM25 1" Bench Morticer and Stand

The Draper BM25 is a heavy-duty bench morticer designed for precision woodworking applications requiring accurate mortice and tenon joints. Featuring a powerful 750W induction motor, this floor-standing machine supports morticing up to 1" (25.4mm) capacity, making it ideal for joinery workshops, cabinet makers and furniture manufacturers working with solid timber.

The machine's robust construction includes a multi-directional table measuring 400 x 150mm, which moves back, forth and laterally to accommodate larger workpieces and simplify positioning during operation. Fully adjustable work clamps and depth stops ensure consistent, accurate morticing across repeat operations, whilst the maximum chisel stroke of 220mm and clamping height of 200mm provide excellent versatility for various joint configurations.

Supplied complete with essential accessories including a 5/8" chisel and bit, multiple chisel bushes (19mm, 13/16" and 13/16"), a 16mm chuck and key, and work clamp, the BM25 arrives ready for immediate workshop installation. The substantial 108kg weight provides the stability required for precision morticing, whilst the included sturdy stand ensures comfortable working height for extended periods.

Features and Benefits:
• Powerful induction motor supports demanding morticing applications
• Multi-directional table movement for easy positioning of larger workpieces
• Fully adjustable work clamps and depth stops for accurate, repeatable joints
• 1" chisel capacity suitable for heavy-duty joinery work
• Comprehensive accessory kit included for immediate use
• Fitted with 2M cable and approved plug for UK electrical compliance

Specifications:
Base Size: 300 x 450mm
Chuck Capacity: 16mm
Speed: 1400r/min
Table Size: 400 x 150mm
Weight (Machine Only): 108kg
Chisel Capacity: 25.4mm (1")
Chisel Stroke (Max): 220mm
Clamping Height (Max): 200mm
Fence To Chisel Centre: 140mm

Contents:
1 x Morticer and Stand, 1", 750W
