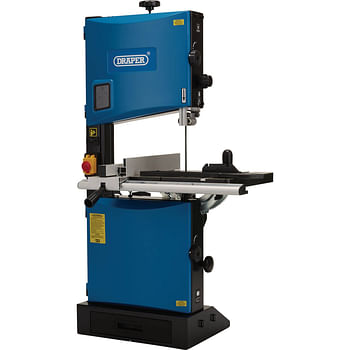

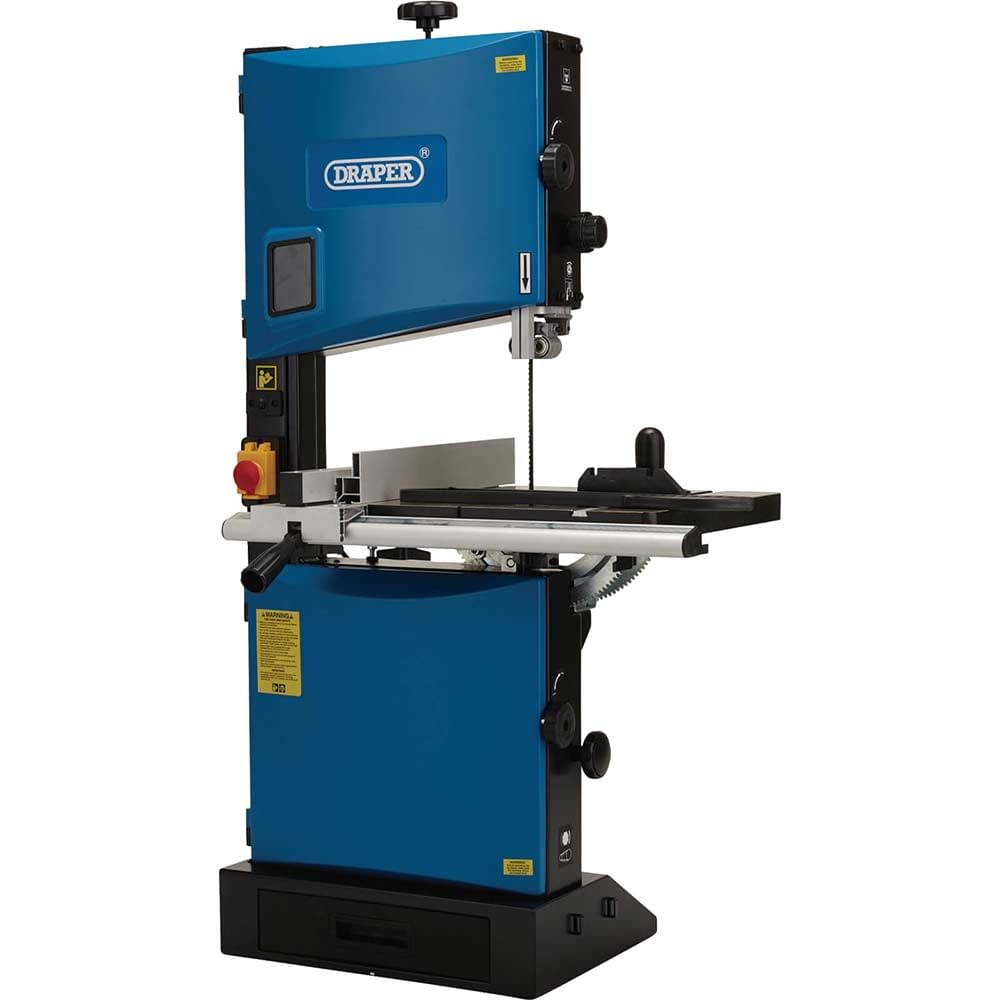

Draper BS305 Two Wheel Bandsaw

The Draper BS305 Two Wheel Bandsaw is a professional-grade two-speed bandsaw designed for cutting wood, wood-derived materials and plastics with precision and versatility.

Built to meet the demands of trade professionals, this bandsaw features robust construction throughout. The worktable support and tilt mechanism are engineered for strength and stability, whilst the blade wheel adjusting mechanism provides reliable performance during extended use. Adjustable blade tensioning and tracking ensure precise cutting accuracy across a range of applications.

The 390 x 480mm table tilts from 0 to 45 degrees, enabling angled cutting, ripping, and mitre and bevel operations. A graduated mitre guide supports crosscut work with angles up to 30 degrees in both directions. The two-speed operation offers cutting speeds of 6.16m/sec and 13.33m/sec, providing flexibility for different materials and cut types.

Practical features include an integrated LED worklight for improved visibility, a no-volt release switch to prevent uncontrolled blade restart after power interruption, and a convenient tool drawer built into the base unit. With a maximum throat capacity of 305mm and cutting depth of 165mm, this bandsaw handles substantial workpieces whilst the 57kg weight ensures stability during operation. The unit can be used floor-standing or mounted on an optional stand.

Features and Benefits:
• Two-speed operation control for versatility across different materials
• Adjustable blade tensioning and tracking for precise cutting
• Mitre guide graduated to 30 degrees for both left and right hand angles
• Table tilting with 0-45 degree range for angled cutting, ripping, mitre and bevel work
• Fitted with LED worklight and convenient tool drawer in base unit
• No-volt release switch prevents uncontrolled blade restart after power interruption
• Supplied with cable and approved plug for immediate use

Specifications:
• Voltage: 230V
• Frequency: 50Hz
• Input: 750W
• No load speed: 1400rpm
• Maximum throat capacity: 305mm
• Cutting depth: 165mm
• Maximum capacity: 172mm
• Cutting speed: 2 speed, 6.16m/sec (370m/min) and 13.33m/sec (800m/min)
• Table size: 390 x 480mm (Tilt to 45 degrees)
• Bandsaw dimensions: 750 x 520 x 1170mm
• Weight: 57kg

Contents:
• 1 x 4tpi blade
• 1 x Parallel rip fence
• 1 x Open ended spanner
• 1 x Push stick
• 4 x Hex keys
• 4 x Pan head screw, M7 x 12mm
• 4 x Washers, 8.5mm
• 4 x Plastic wing bolts
